Photonics Source provides 62 products. Download datasheets, request quotes, and compare function, price, and availability.
-

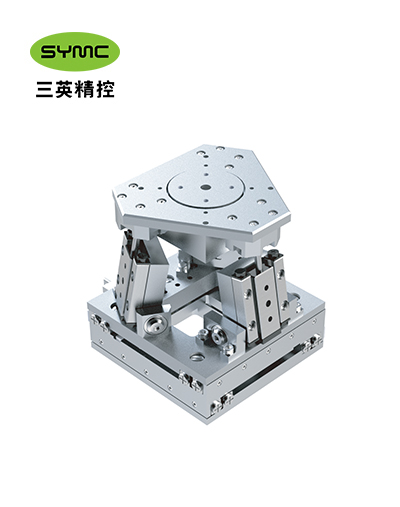

X-BOT-50
Travel Range Tx,Ty(mm): ±14 Travel Range Tz(mm): ±2.5 Travel Range Rx(deg): ±9 Travel Range Ry(deg): ±10 Travel Range Rz(deg): ±360 (optional PR-20) -

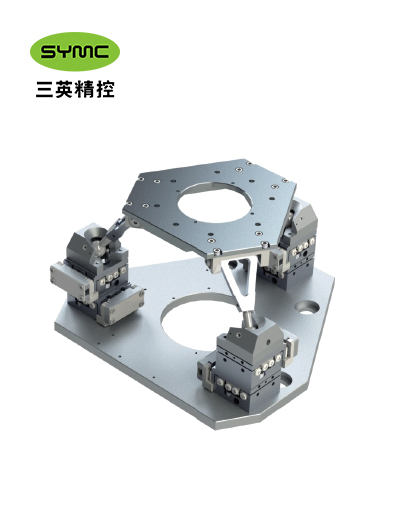

X-BOT-120
Travel Range Tx,Ty(mm): ±6 Travel Range Tz(mm): +3.5/-6 Travel Range Rx(deg): +7/-9 Travel Range Ry(deg): ±9 Travel Range Rz(deg): ±6 -
TRI-BOT-50
Travel Range Tz(mm): ±2.5 Travel Range Rx(deg): ±9 Travel Range Ry(deg): ±10 Travel Range Rz(deg): ±360° (Optional PR-20 rotation stage) Weight(g): 160 -

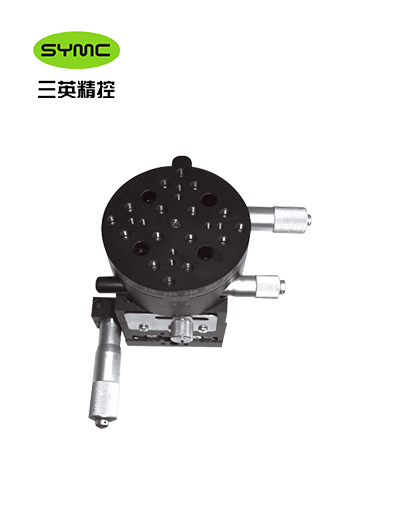

Precision Adjustment Stage
Platform Size: 50mm Travel Range: ±6mm Resolution: 0.01mm Load Capacity: 5kg Material: Aluminum alloy -

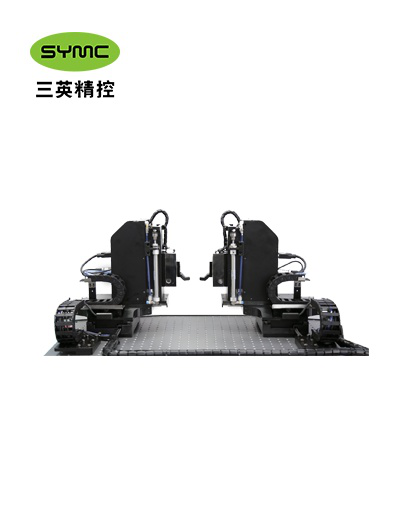

SYJK-6ZFC-1NS
Travel Range X/Y: 110mm Travel Range Z: 60mm Positioning Accuracy X/Y: ±0.3μm Positioning Accuracy Z: ±0.25μm Bidirectional Repeatability X/Y: ±0.1μm -

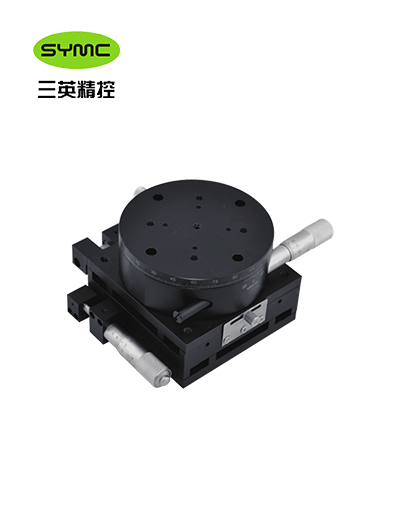

精密旋转Platform
Rotation Range: 360° Platform Diameter: 100mm Indexing Accuracy: 0.01° Load Capacity: 20kg Material: Aluminum alloy -
Precision Optical Adjustment Mount
Adjustment Range: ±5mm Adjustment Accuracy: 0.01mm Material: Aluminum alloy Adapter Type: Standard optical components Load Capacity: Up to 2kg -
SC300
Number of Channels: 1/2/3 Resolution: 24-bit AD/DA Processor: FPGA+Main Frequency 925MHz, Dual-core ARM Sampling Interval: 20.48μs Interface: Ethernet, USB, Analog Input (-10V~10V, adjustable), Analog Output (-10V~10V, adjustable), Digital I/O (optional) -
NS-Z8-02
Motion Axis: Z Sensor Type: Capacitive Closed-loop Travel (μm): 8 Closed-loop Resolution (nm): 0.2 Linearity (%): 0.2 -
NS-Z8-01
Motion Axis: Z Sensor Type: Capacitive Closed-loop Travel (μm): 8 Closed-loop Resolution (nm): 0.1 Linearity (%): 0.2 -
NS-Z500-01
Motion Axis: Z Sensor Type: Capacitive Closed-loop Travel (μm): 500 Closed-loop Resolution (nm): 4 Linearity (%): 0.8 -
NS-Z5-01
Motion Axis: Z Sensor Type: Capacitive Closed-loop Travel (μm): 5 Closed-loop Resolution (nm): 0.1 No-load Resonant Frequency (Hz): 12000 -
NS-Z250-01
Motion Axis: Z Sensor Type: Capacitive Closed-loop Travel (μm): 250 Closed-loop Resolution (nm): 2 Linearity (%): 0.5 -
NS-Z25-02
Motion Axis: Z Sensor Type: Capacitive Closed-loop Travel (μm): 25 Closed-loop Resolution (nm): 0.2 Linearity (%): 0.03 -
NS-Z25-01
Motion Axis: Z Sensor Type: Capacitive Closed-loop Travel (μm): 25 Closed-loop Resolution (nm): 0.1 Linearity (%): 0.03 -
NS-Z150-01
Motion Axis: Z Sensor Type: Capacitive Closed-loop Travel (μm): 150 Closed-loop Resolution (nm): 0.8 Linearity (%): 0.02 -
NS-Z100-03
Motion Axis: Z Sensor Type: Capacitive Closed-loop Travel (μm): 100 Closed-loop Resolution (nm): 1 Linearity (%): 0.2 -
NS-XY5Z5-01
Motion Axis: X/Y, Z Sensor Type: - (X/Y), Capacitive (Z) Travel Range (μm) X/Y: 5/5 (open loop) Travel Range (μm) Z: 5 (closed loop) Closed Loop Resolution (nm): 0.1 -
NS-XY400Z200-01
Motion Axes: X/Y/Z Sensor Type: Capacitive Closed-loop Travel (μm): 400/400/200 Closed-loop Resolution (nm): 3.0/3.0/2.5 Linearity (%): 0.02/0.02/0.04 -
NS-XY400Z100-01
Motion Axis: X/Y/Z Sensor Type: Capacitive Closed-loop Travel (μm): 400/400/100 Closed-loop Resolution (nm): 1.5/1.5/0.5 Linearity (%): 0.02/0.02/0.04
