NS-RB4-01
The NS-RB4-01 is a precision rotary actuator designed for high-accuracy applications. It features capacitive sensors and is made of aluminum alloy, ensuring durability and lightweight performance.
Save to Favorites
Overview

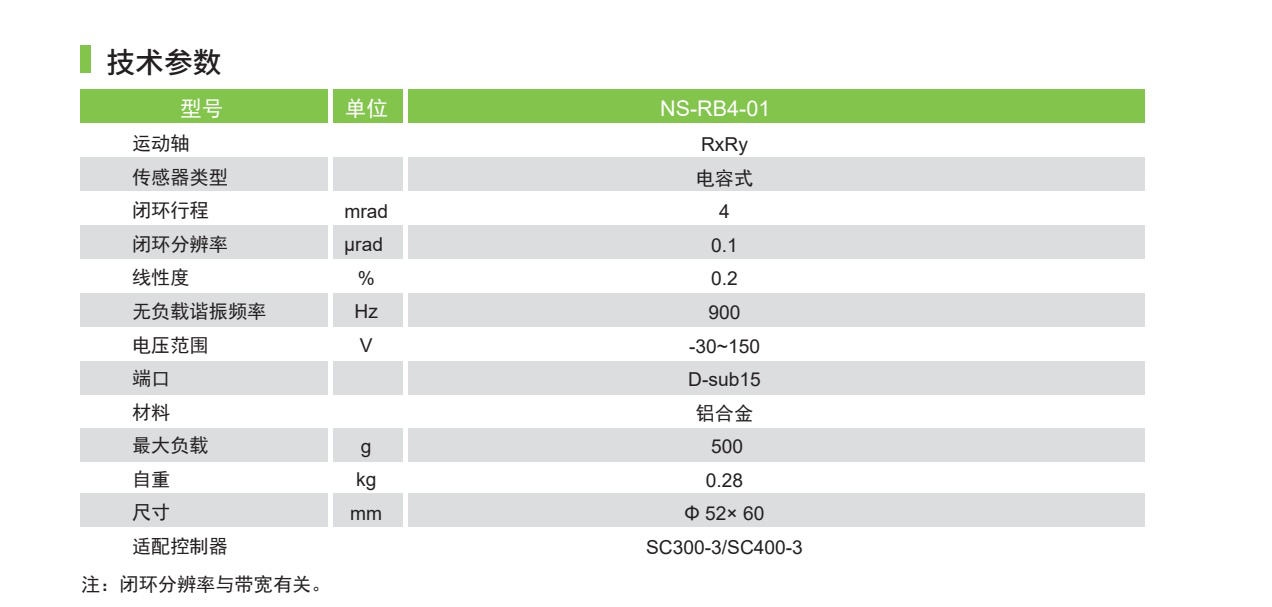

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | RxRy |
| Sensor Type | Capacitive |
| Closed-loop Travel (mrad) | 4 |
| Closed-loop Resolution (μrad) | 0.1 |
| Linearity (%) | 0.2 |
| No-load Resonance Frequency (Hz) | 900 |
| Voltage Range (V) | -30~150 |
| Port | D-sub15 |
| Material | Aluminum Alloy |
| Maximum Load (g) | 500 |
| Weight (kg) | 0.28 |

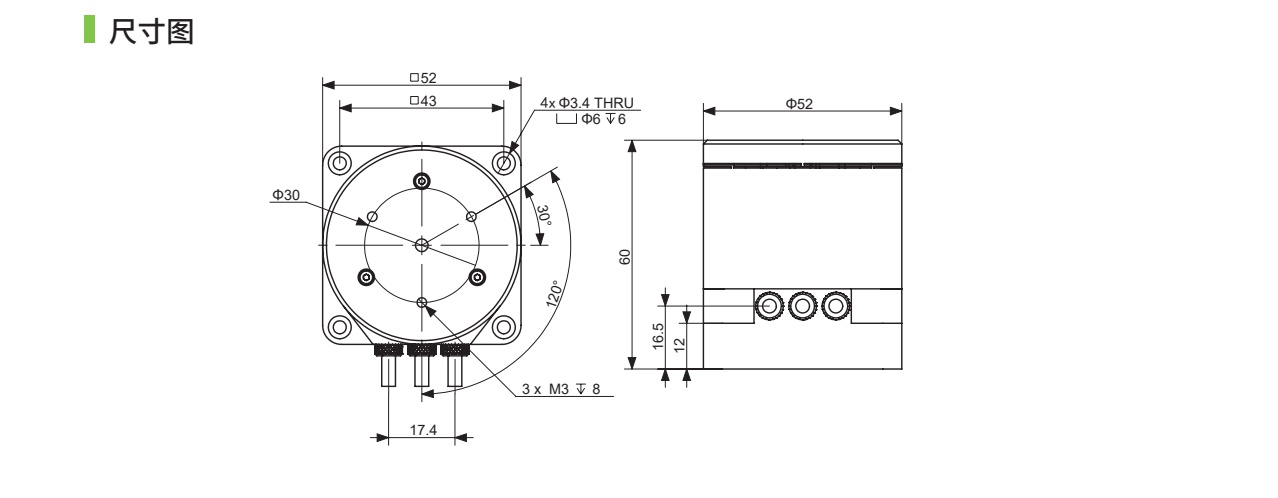

| Dimensions (mm) | Φ52×60 |
| Compatible Controller | SC300-3/SC400-3 |
