NNS-Z200RXY2-01
The NNS-Z200RXY2-01 is a precision motion control platform designed for high-accuracy applications. It features capacitive sensors and offers excellent linearity and vibration frequency performance.
Save to Favorites
Overview
Specifications

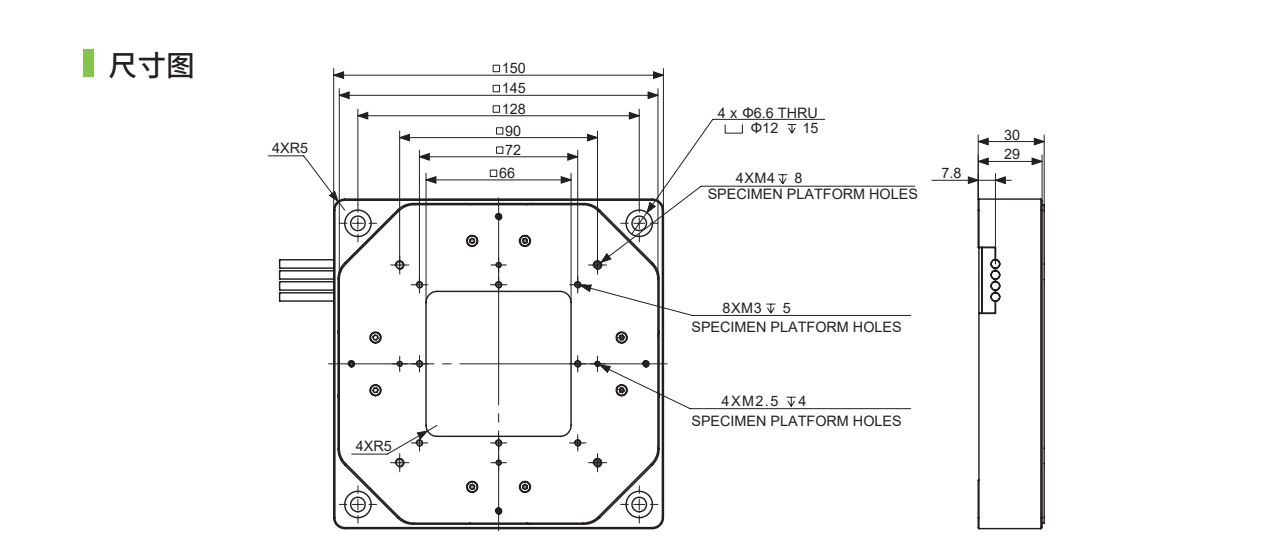

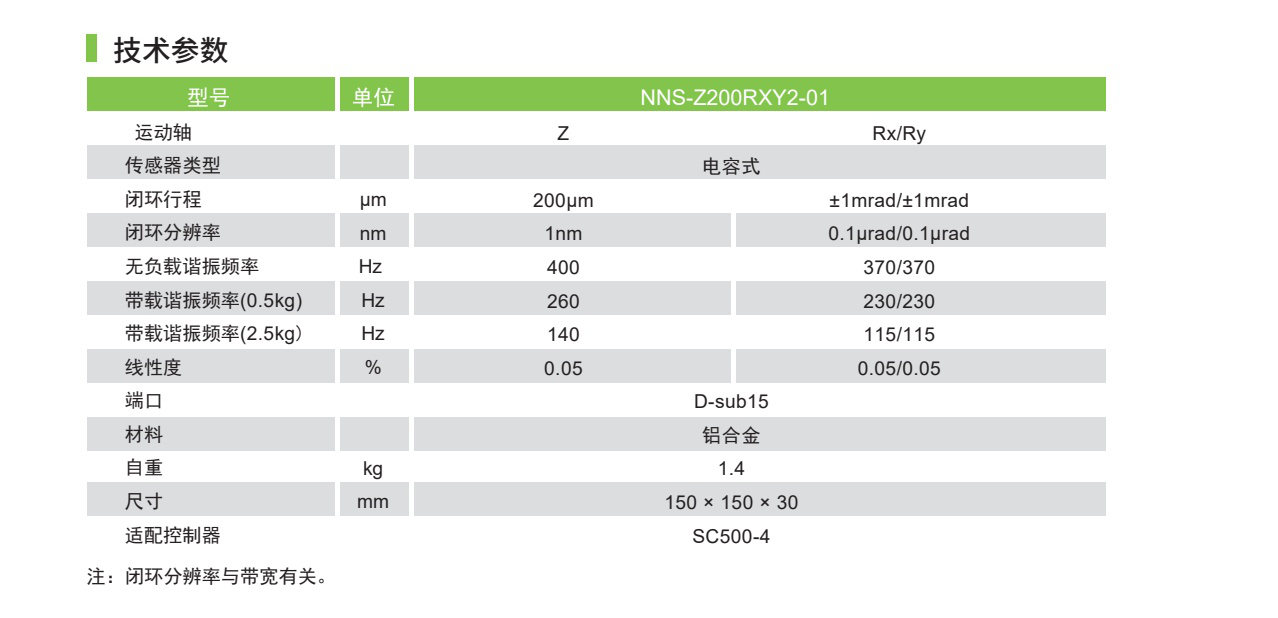

| Parameter | Value |
|---|---|
| Motion Axis | Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 200μm |
| Closed-loop Resolution (nm) | 1nm |
| No-load Resonant Frequency (Hz) | 400 |
| Resonant Frequency with Load (0.5kg) (Hz) | 260 |
| Resonant Frequency with Load (2.5kg) (Hz) | 140 |
| Linearity (%) | 0.05 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Weight (kg) | 1.4 |
| Dimensions (mm) | 150×150×30 |
| Compatible Controller | SC500-4 |
| Capacitive | ±1mrad/±1mrad |
| Resolution | 0.1μrad/0.1μrad |
| Resonant Frequency with Load (0.5kg) Rx/Ry (Hz) | 230/230 |
| Resonant Frequency with Load (2.5kg) Rx/Ry (Hz) | 115/115 |
| Linearity Rx/Ry (%) | 0.05/0.05 |
