NNS-Z20-01
The NNS-Z20-01 is a high-precision capacitive sensor designed for Z-axis motion control. It offers exceptional accuracy and reliability, making it ideal for various industrial applications.
Save to Favorites
Overview

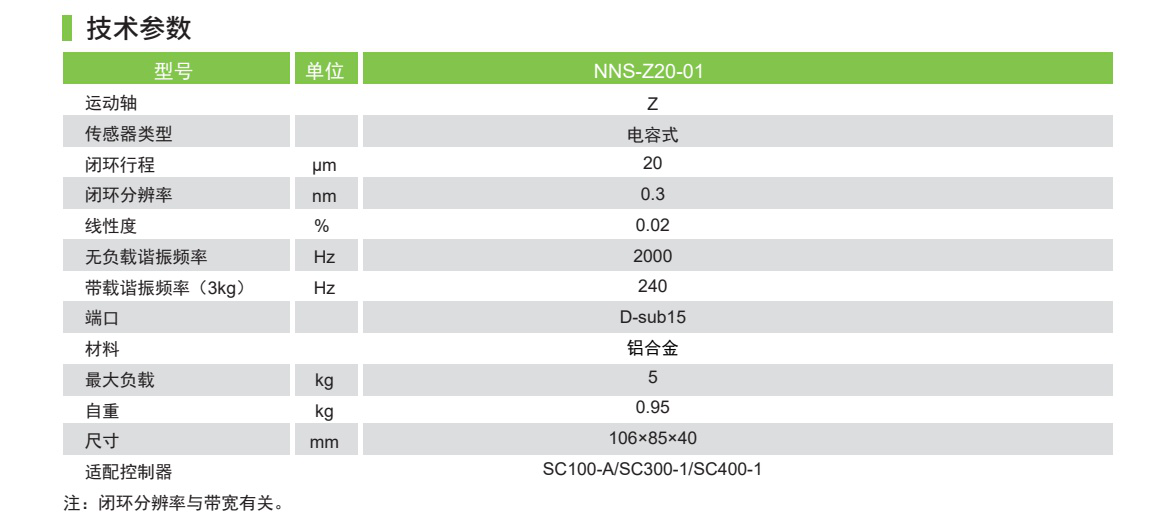

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | Z |
| Sensor Type | Capacitive |
| Closed-loop Stroke (μm) | 20 |
| Closed-loop Resolution (μm) | 0.3 |
| Linearity (%) | 0.02 |
| No-load Resonance Frequency (Hz) | 2000 |
| Resonance Frequency with Load (3kg) (Hz) | 240 |
| Port | D-sub15 |
| Material | Aluminum Alloy |
| Maximum Load (kg) | 5 |
| Weight (kg) | 0.95 |

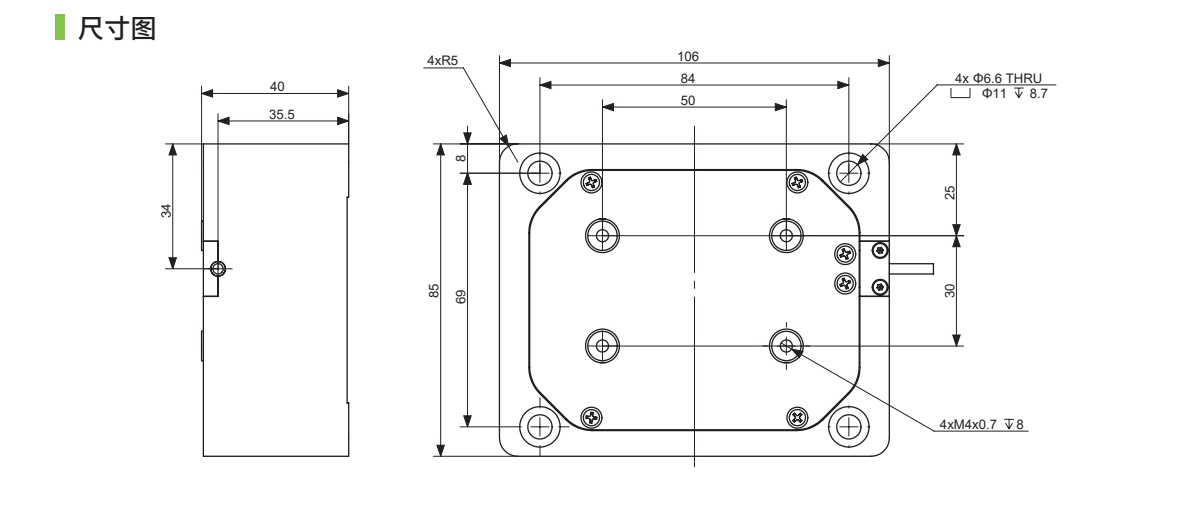

| Dimensions (mm) | 106×85×40 |
| Compatible Controllers | SC100-A/SC300-1/SC400-1 |
