NNS-X100-01
The NNS-X100-01 is a precision motion stage designed for high-accuracy positioning applications. It features a compact design, high resolution, and excellent linearity, making it ideal for demanding optical and industrial tasks.
Save to Favorites
Overview

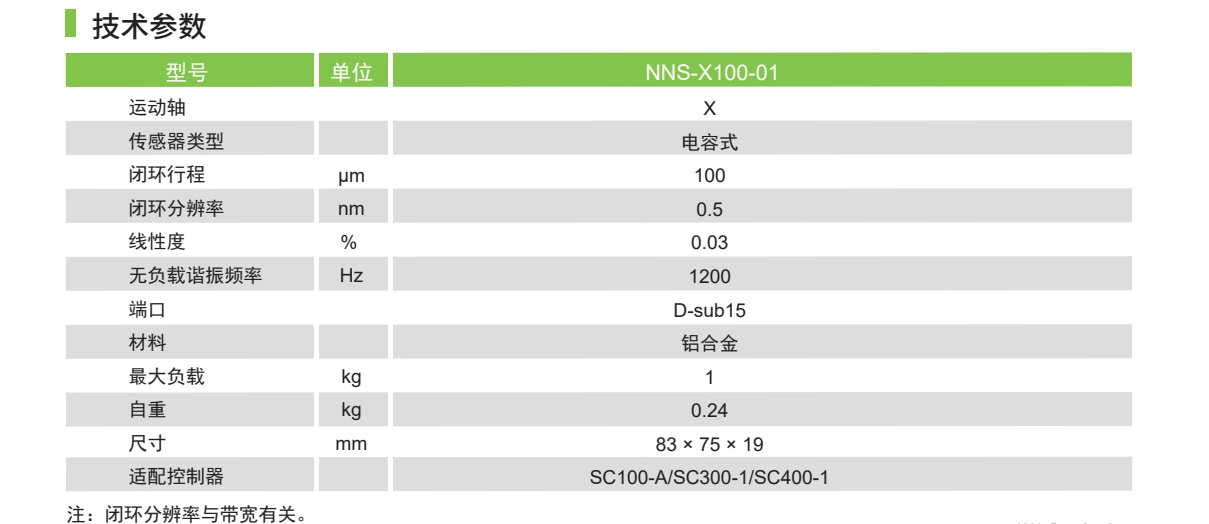

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 100 |
| Closed-loop Resolution (nm) | 0.5 |
| Linearity (%) | 0.03 |
| No-load Resonant Frequency (Hz) | 1200 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load (kg) | 1 |
| Self Weight (kg) | 0.24 |

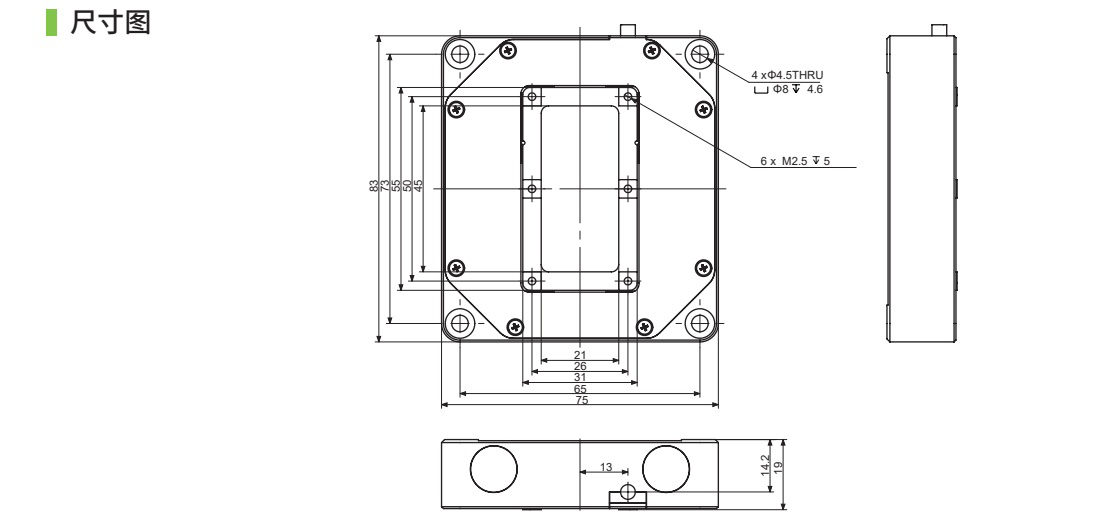

| Dimensions (mm) | 83×75×19 |
| Compatible Controller | SC100-A/SC300-1/SC400-1 |
