NNS-XYZ100RZ2RXY1-01
The NNS-XYZ100RZ2RXY1-01 is a precision motion control platform designed for high-accuracy applications requiring multi-axis movement. It features capacitive sensors and offers exceptional resolution and linearity, making it ideal for scientific and industrial use.
Save to Favorites
Overview

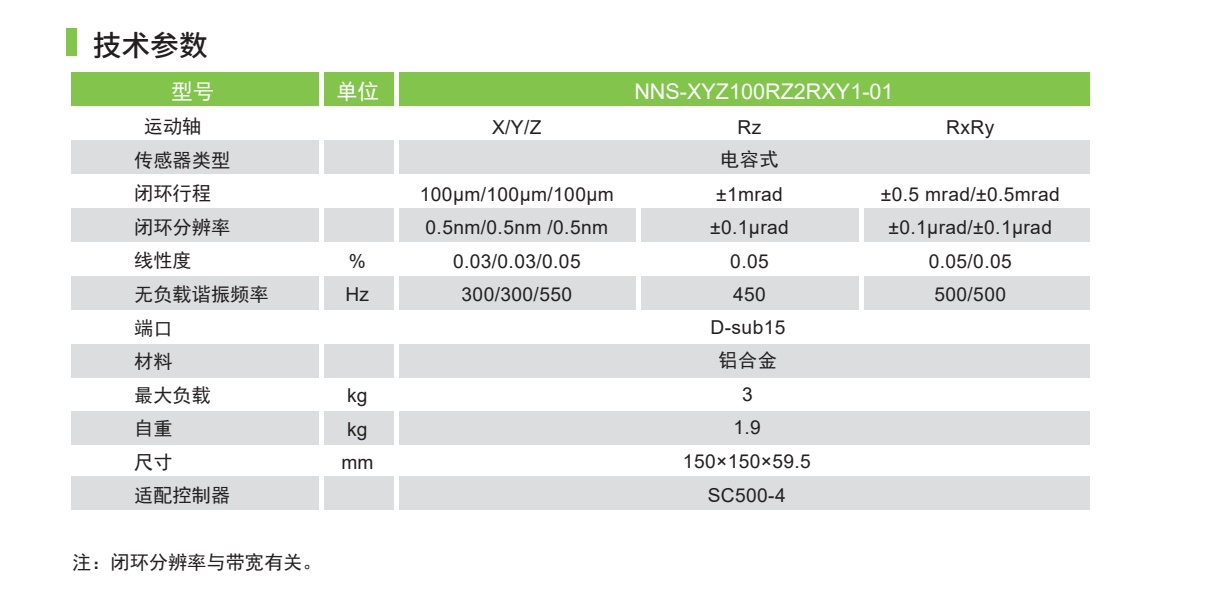

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X/Y/Z, Rz, RxRy |
| Sensor Type | Capacitive |
| Closed-loop Travel | 100μm/100μm/100μm, ±1mrad, ±0.5mrad |
| Closed-loop Resolution | 0.5nm/0.5nm/0.5nm, ±0.1μrad, ±0.1μrad |
| Linearity | 0.03/0.03/0.05%, 0.05%, 0.05/0.05% |
| No-load Resonant Frequency | 300/300/550Hz, 450Hz, 500/500Hz |
| Interface | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load | 3kg |
| Weight | 1.9kg |

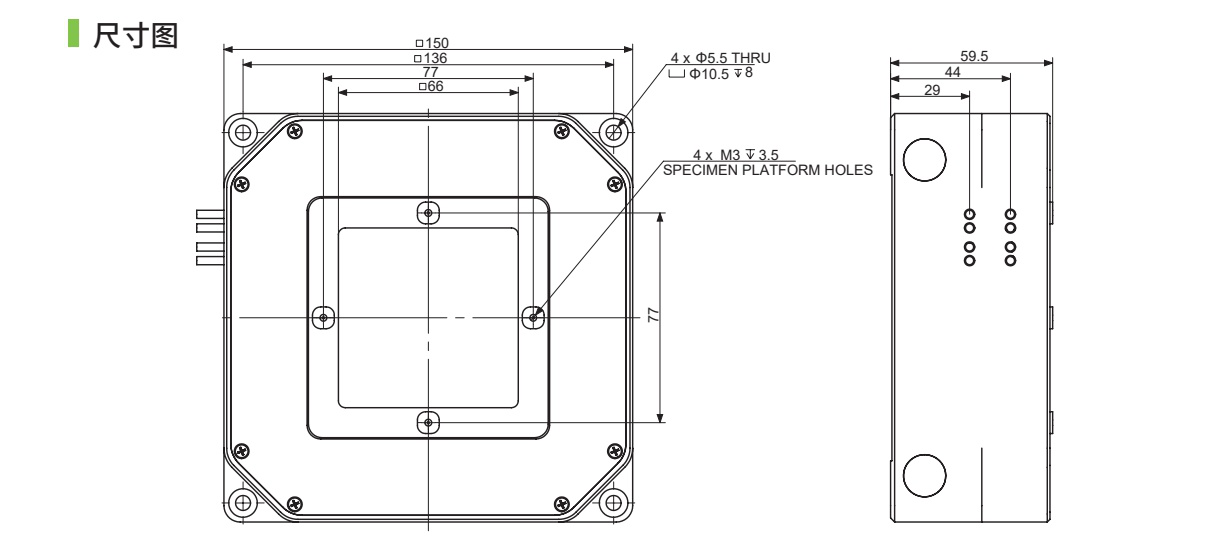

| Dimensions | 150×150×59.5mm |
| Compatible Controller | SC500-4 |
