NNS-Z50-01
The NNS-Z50-01 is a high-precision capacitive sensor designed for Z-axis motion control, offering exceptional resolution and linearity for demanding applications.
Save to Favorites
Overview

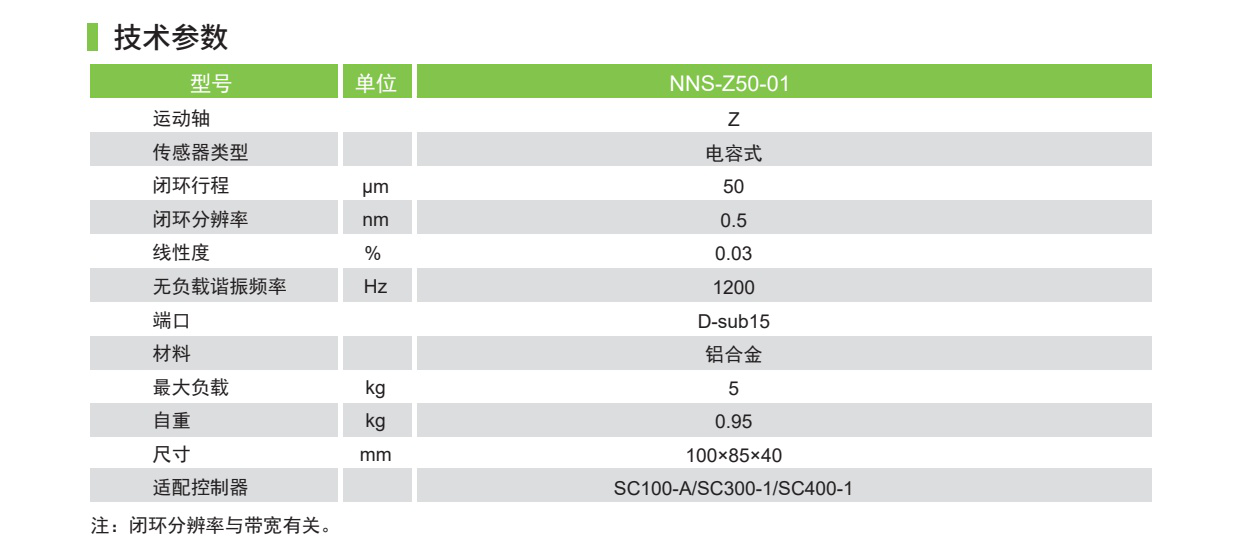

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 50 |
| Closed-loop Resolution (nm) | 0.5 |
| Linearity (%) | 0.03 |
| No-load Resonant Frequency (Hz) | 1200 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load (kg) | 5 |
| Weight (kg) | 0.95 |

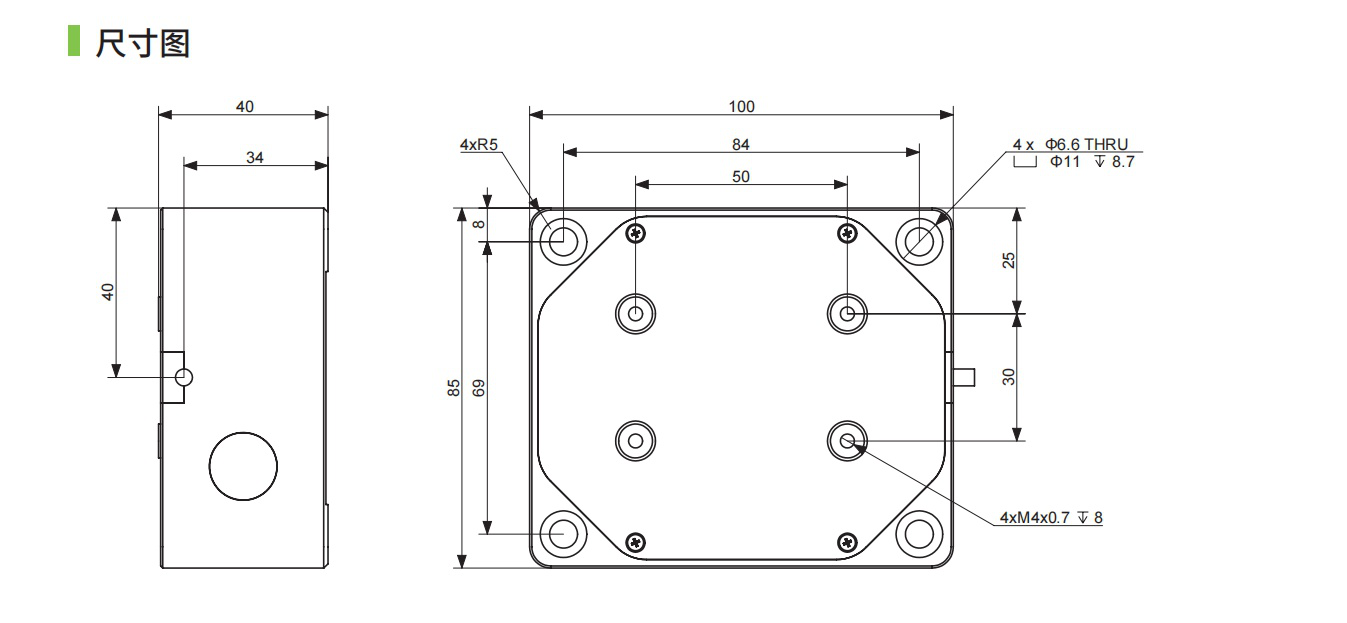

| Dimensions (mm) | 100×85×40 |
| Compatible Controller | SC100-A/SC300-1/SC400-1 |
