NS-XY700Z200-01
The NS-XY700Z200-01 is a high-precision capacitive motion stage designed for XYZ axis movement, offering exceptional resolution and stability for advanced optical and industrial applications.
Save to Favorites
Overview

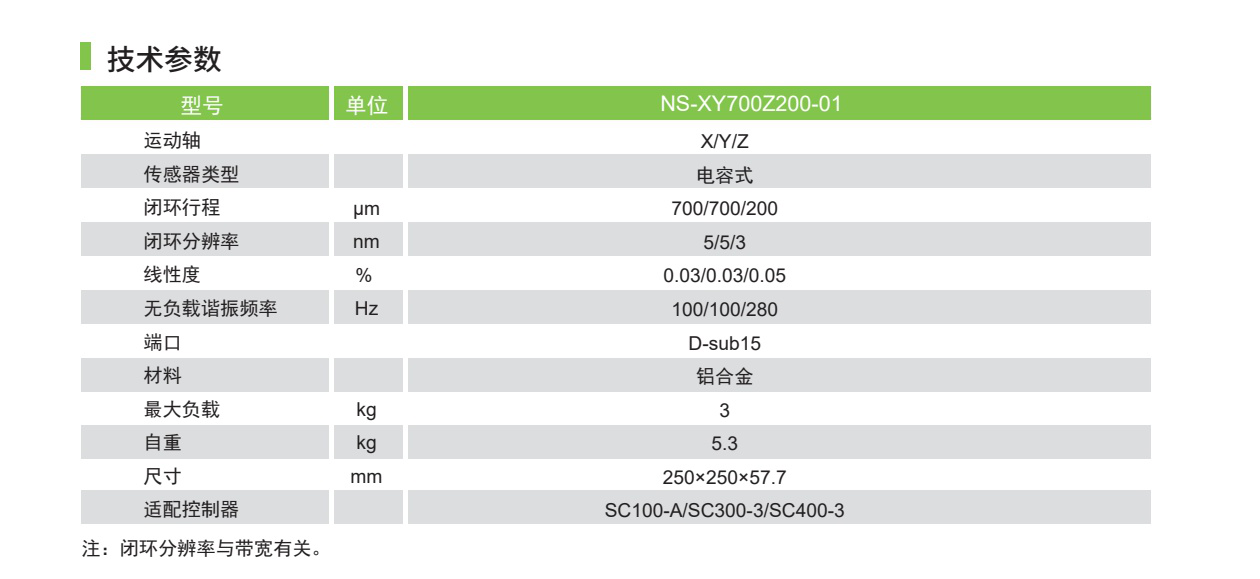

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X/Y/Z |
| Closed-loop Travel (μm) | 700/700/200 |
| Closed-loop Resolution (nm) | 5/5/3 |
| Linearity (%) | 0.03/0.03/0.05 |
| No-load Resonant Frequency (Hz) | 100/100/280 |
| Port | D-sub15 |
| Maximum Load (kg) | 3kg |
| Self Weight (kg) | 5.3kg |

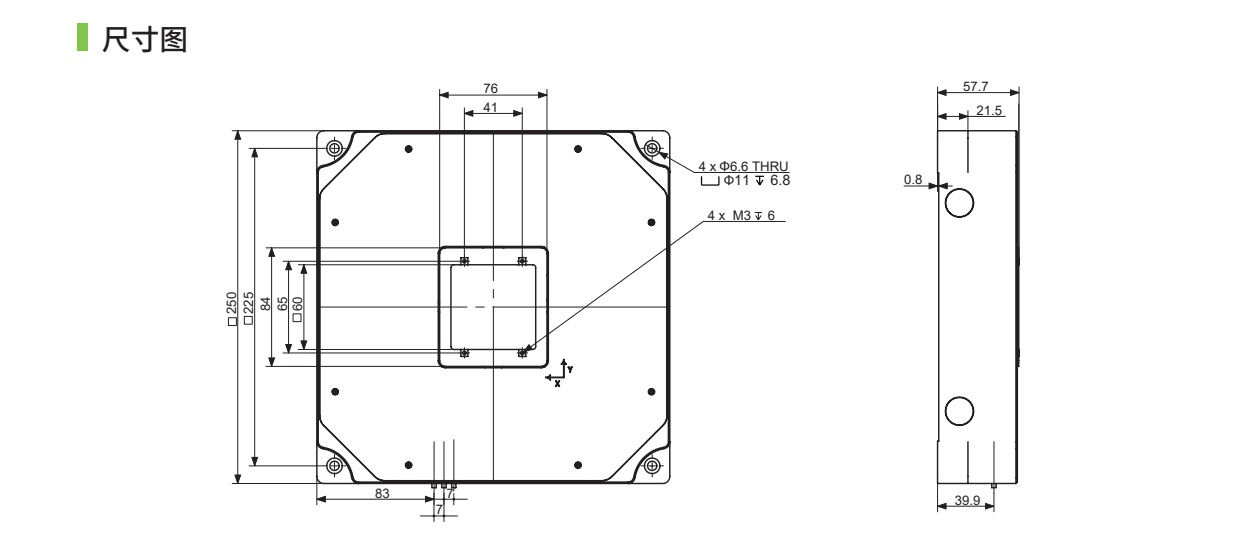

| Dimensions (mm) | 250×250×57.7 |
| Compatible Controller | SC100-A/SC300-3/SC400-3 |
Applications
Key Features
Datasheet
