NNS-X100-02
The NNS-X100-02 is a high-precision capacitive sensor designed for precise motion control applications. It features a compact design and high resolution, making it suitable for various industrial and scientific uses.
Save to Favorites
Overview

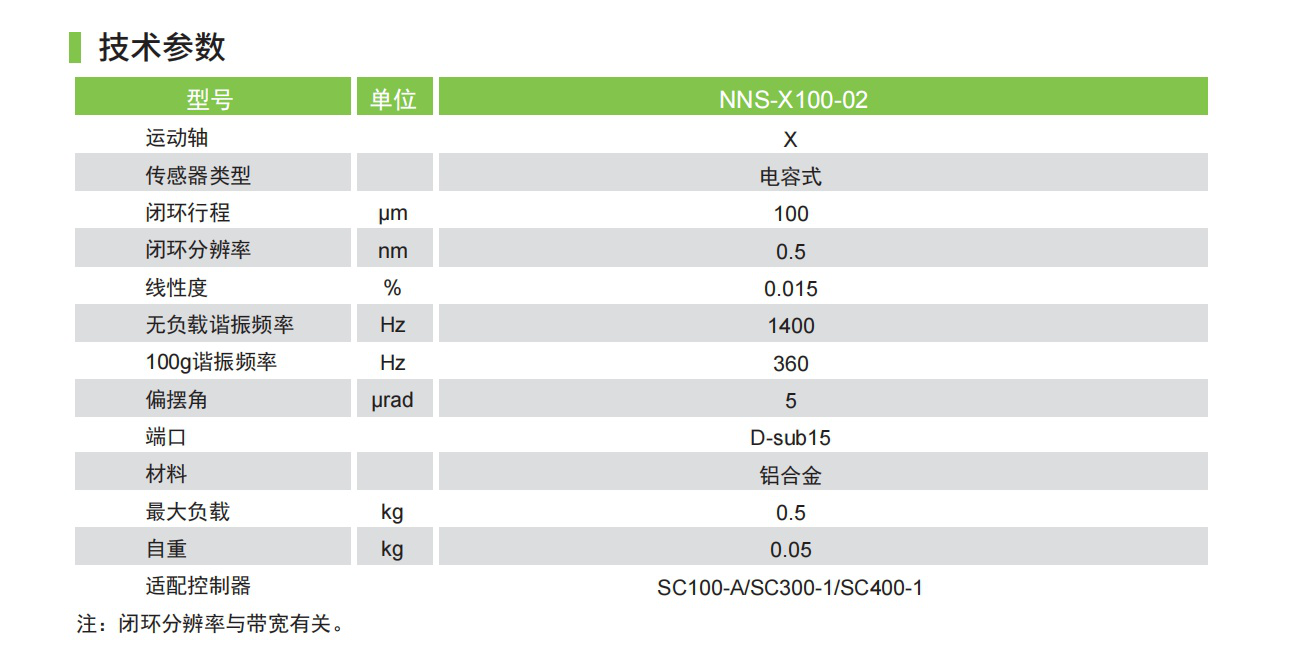

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 100 |
| Closed-loop Resolution (nm) | 0.5 |
| Linearity (%) | 0.015 |
| No-load Resonant Frequency (Hz) | 1400 |
| 100g Resonant Frequency (Hz) | 360 |
| Deflection Angle (μrad) | 5 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load (kg) | 0.5 |
| Self-weight (kg) | 0.05 |
Applications
Key Features
Datasheet
