NNS-XY100Z15-01
The NNS-XY100Z15-01 is a precision motion control platform designed for high-accuracy applications in the optical and photonics industry. It features capacitive sensors and offers exceptional resolution and stability for precise positioning.
Save to Favorites
Overview
Specifications

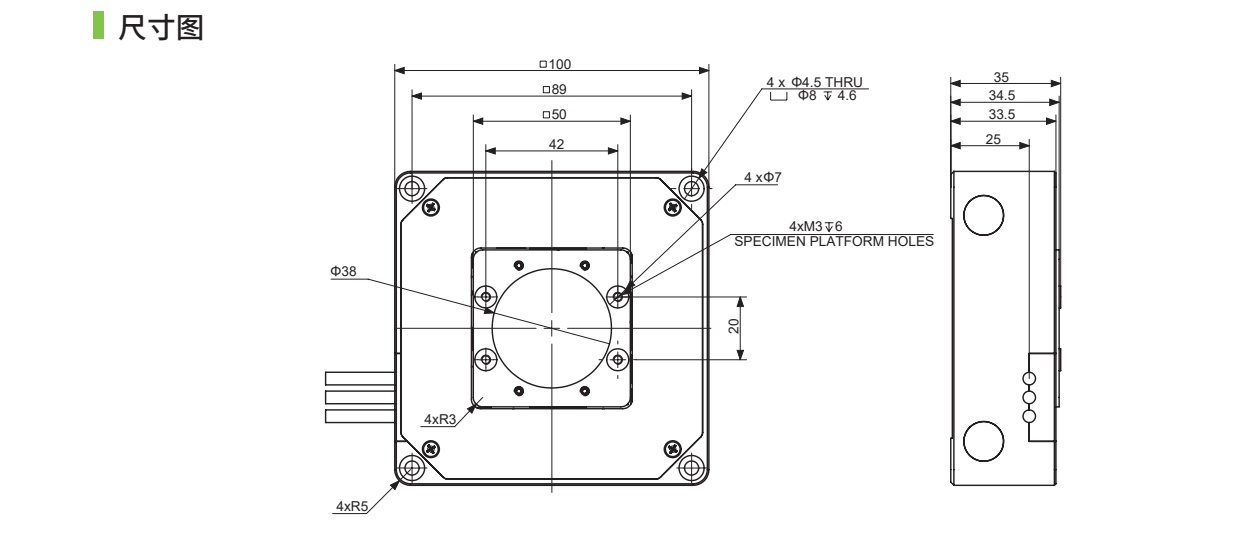

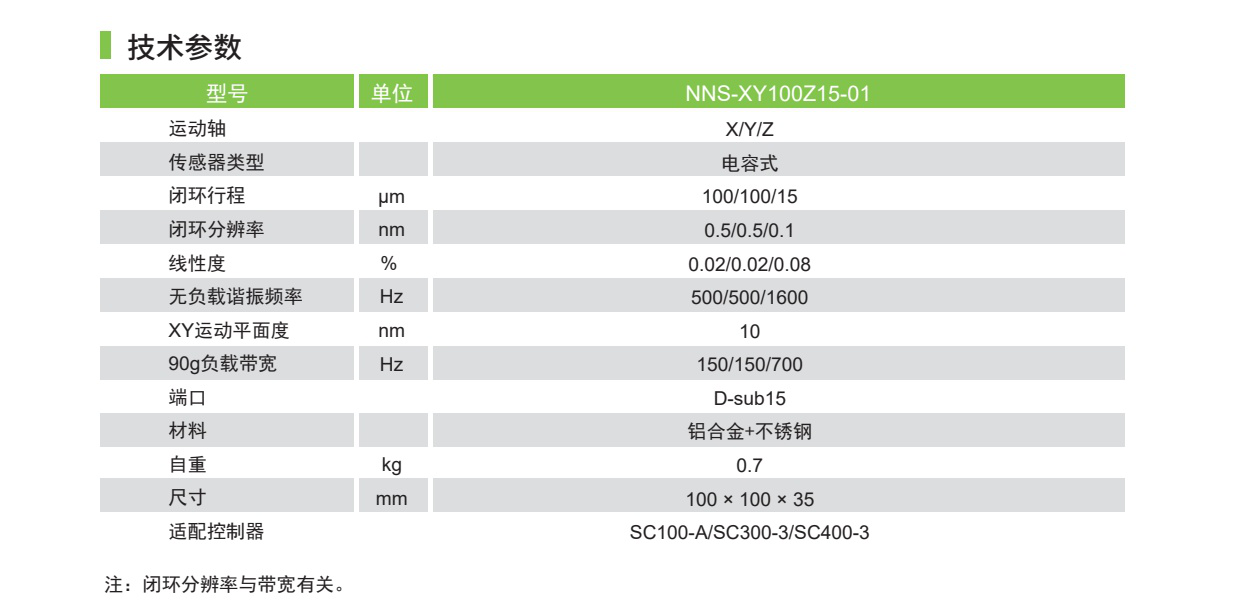

| Parameter | Value |
|---|---|
| Motion Axis | X/Y/Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 100/100/15 |
| Closed-loop Resolution (nm) | 0.5/0.5/0.1 |
| Linearity (%) | 0.02/0.02/0.08 |
| No-load Resonant Frequency (Hz) | 500/500/1600 |
| XY Motion Flatness (nm) | 10 |
| 90g Load Bandwidth (Hz) | 150/150/700 |
| Port | D-sub15 |
| Material | Aluminum alloy + stainless steel |
| Weight (kg) | 0.7 |
| Dimensions (mm) | 100×100×35 |
| Compatible Controllers | SC100-A/SC300-3/SC400-3 |
