NNS-Z250-02
The NNS-Z250-02 is a precision Z-axis motion stage designed for high-accuracy positioning applications. It features a capacitive sensor for precise feedback and is constructed from lightweight aluminum alloy.
Save to Favorites
Overview

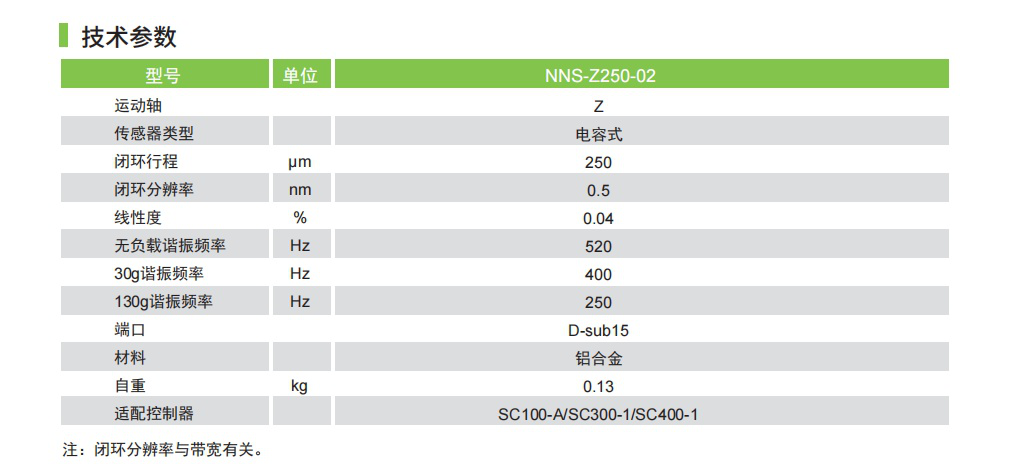

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 250 |
| Closed-loop Resolution (nm) | 0.5 |
| Linearity (%) | 0.04 |
| No-load Resonant Frequency (Hz) | 520 |
| 30g Resonant Frequency (Hz) | 400 |
| 130g Resonant Frequency (Hz) | 250 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Weight (kg) | 0.13 |
| Compatible Controller | SC100-A/SC300-1/SC400-1 |
