Precision Motion Control Platform
A high-precision motion control platform designed for applications requiring accurate positioning and stability.
Save to Favorites
Overview

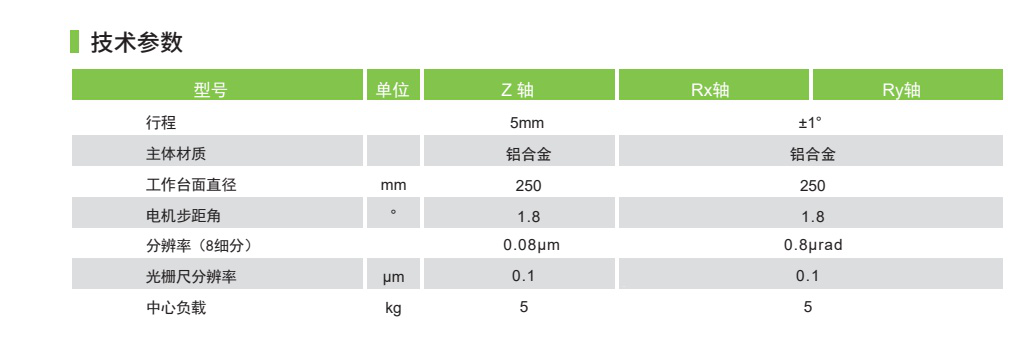

Specifications
| Parameter | Value |
|---|---|
| Travel Range Z Axis | 5mm |
| Travel Range Rx Axis | ±1° |
| Travel Range Ry Axis | ±1° |
| Main Material | Aluminum alloy |
| Worktable Diameter | 250mm |
| Motor Step Angle | 1.8° |
| Resolution (8 subdivisions) Z Axis | 0.08μm |
| Resolution (8 subdivisions) Rx Axis | 0.8μrad |
| Resolution (8 subdivisions) Ry Axis | 0.8μrad |
| Grating Scale Resolution | 0.1μm |
| Central Load | 5kg |
