NNS-XY100-05
The NNS-XY100-05 is a precision XY-axis motion control device designed for high-resolution and accurate positioning applications. It features a capacitive sensor type and is constructed with aluminum alloy for durability and lightweight performance.
Save to Favorites
Overview

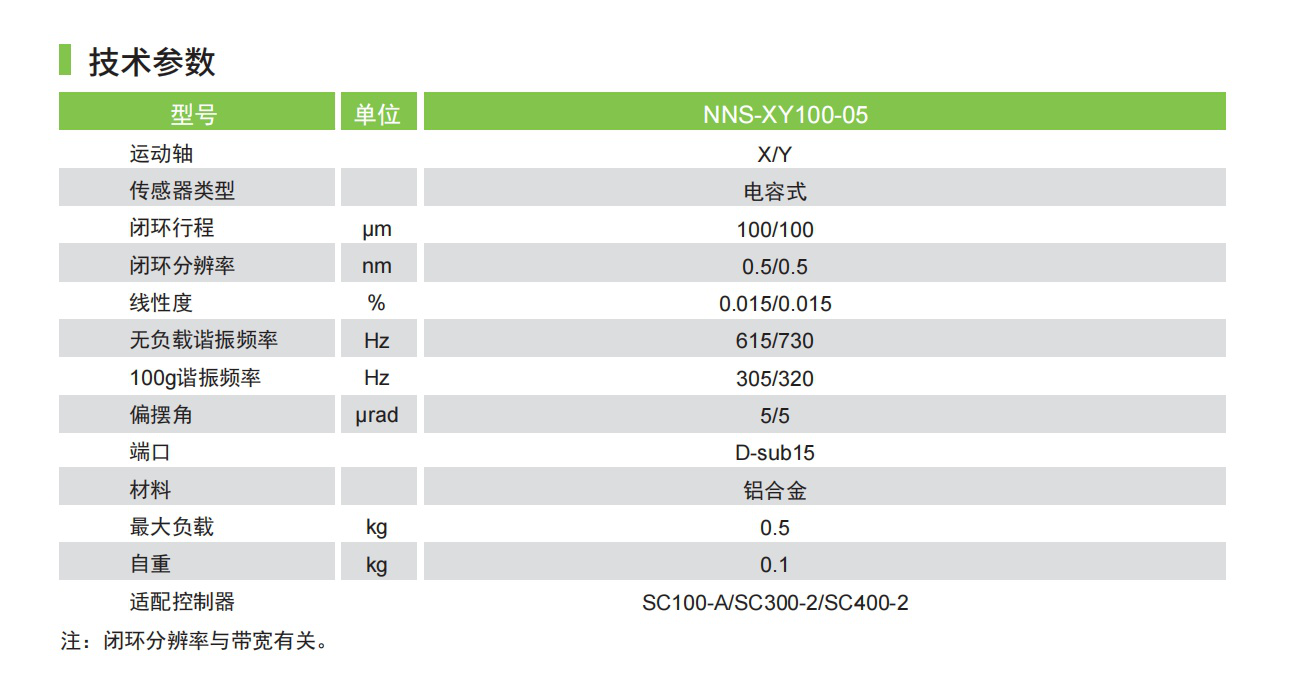

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X/Y |
| Sensor Type | 电容式 |
| Closed-loop Travel (μm) | 100/100 |
| Closed-loop Resolution (nm) | 0.5/0.5 |
| Linearity (%) | 0.015/0.015 |
| No-load Resonance Frequency (Hz) | 615/730 |
| 100g Resonance Frequency (Hz) | 305/320 |
| Deflection Angle (μrad) | 5/5 |
| Port | D-sub15 |
| Material | 铝合金 |
| Maximum Load (kg) | 0.5 |
| Self-weight (kg) | 0.1 |
Applications
Key Features
Datasheet
