NS-RB0.8-01
The NS-RB0.8-01 is a precision rotary actuator designed for high-accuracy applications. It features a compact design, high resolution, and robust construction, making it suitable for various industrial and scientific uses.
Save to Favorites
Overview

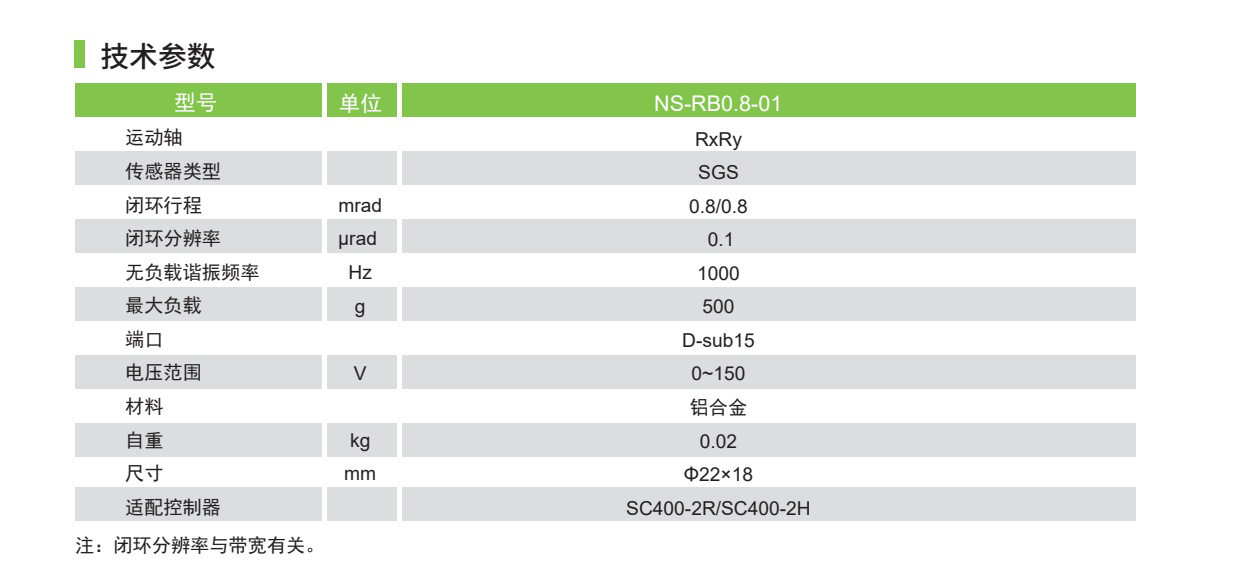

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | RxRy |
| Sensor Type | SGS |
| Closed-loop Travel (mrad) | 0.8/0.8 |
| Closed-loop Resolution (μrad) | 0.1 |
| No-load Resonance Frequency (Hz) | 1000 |
| Maximum Load (g) | 500 |
| Port | D-sub15 |
| Voltage Range (V) | 0~150 |
| Material | Aluminum alloy |
| Weight (kg) | 0.02 |

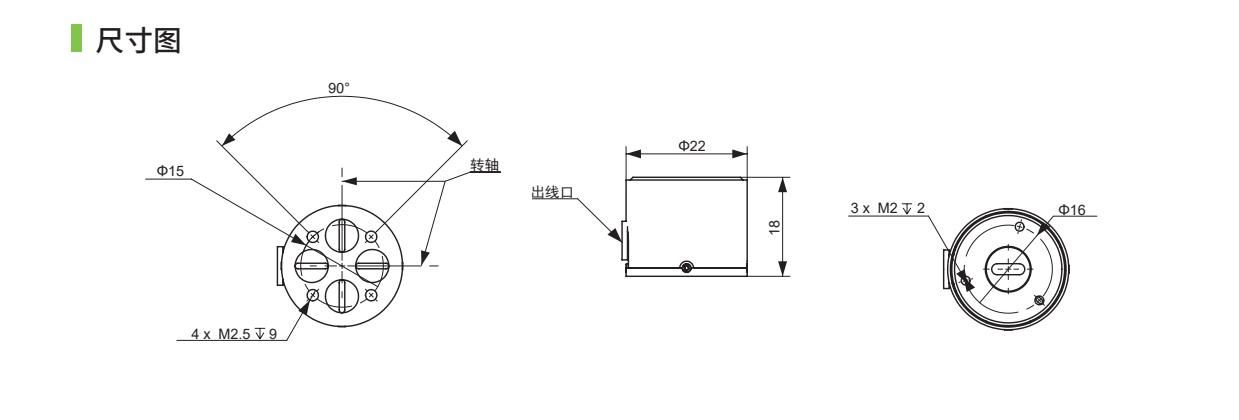

| Dimensions (mm) | Φ22×18 |
| Compatible Controller | SC400-2R/SC400-2H |
