Precision Motion Control Platform
This precision motion control platform is designed for high-accuracy positioning and rotation applications, featuring multi-axis control and robust load capacity.
Save to Favorites
Overview

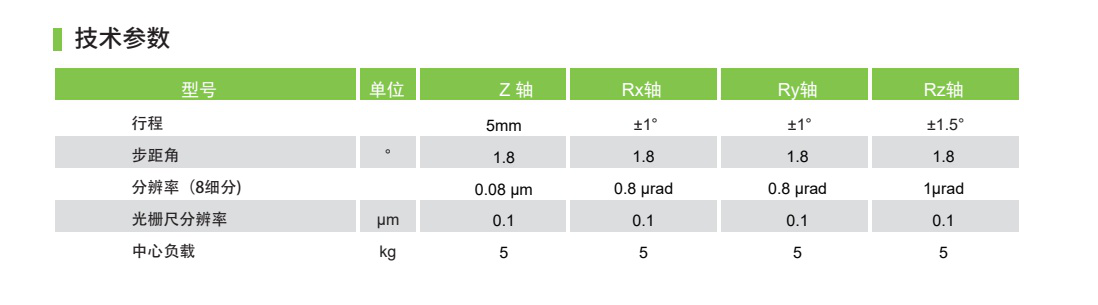

Specifications
| Parameter | Value |
|---|---|
| Travel Range Z-axis | 5mm |
| Step Angle Z-axis | 1.8° |
| Resolution (8 Subdivision) Z-axis | 0.08μm |
| Grating Resolution Z-axis | 0.1μm |
| Central Load Z-axis | 5kg |
| Travel Range Rx-axis | ±1° |
| Step Angle Rx-axis | 1.8° |
| Resolution (8 Subdivision) Rx-axis | 0.8μrad |
| Grating Resolution Rx-axis | 0.1μm |
| Central Load Rx-axis | 5kg |
| Travel Range Ry-axis | ±1° |
| Step Angle Ry-axis | 1.8° |
| Resolution (8 Subdivision) Ry-axis | 0.8μrad |
| Grating Resolution Ry-axis | 0.1μm |
| Central Load Ry-axis | 5kg |
| Travel Range Rz-axis | ±1.5° |
| Step Angle Rz-axis | 1.8° |
| Resolution (8 Subdivision) Rz-axis | 1μrad |
| Grating Resolution Rz-axis | 0.1μm |
| Central Load Rz-axis | 5kg |
