Photonics Source provides 12 products. Download datasheets, request quotes, and compare function, price, and availability.
-
PSX-MT3
Test Circuits: 单板2只×12层×每层8块老化板插座，共192只模块，单支模块电流≤10A Independent Temperature Zones: 96 complete plans（单 complete plans抽屉独立控温） Loopback Function: 支持光回环、电回环测试Function，误码率等级E-8级 Voltage Output Range: 3~4V，±1%FS±50mV Voltage Range: 3~4V，±1%FS±50mV -
Optoelectronic Aging Test Equipment
Test Channels: 单板28路*6层*每层6块老化板=上下2仓室，共2016只模块(SFP封装)，单支持模块电流0.85A Independent Temperature Zones: 2 complete plans Voltage Range: 3-4V, ±1%FS±50mV Voltage Monitoring: 3-4V, ±1%FS±50mV Current Limit Range (Based on Existing Aging Board Models): SFP:0~0.85A, ±0.5%FS±2mA; QSFP, OSFP:0~0.4A, ±0.5%FS±2mA; QSFP-DD, CFP:0~0.4A, ±0.5%FS±2mA -

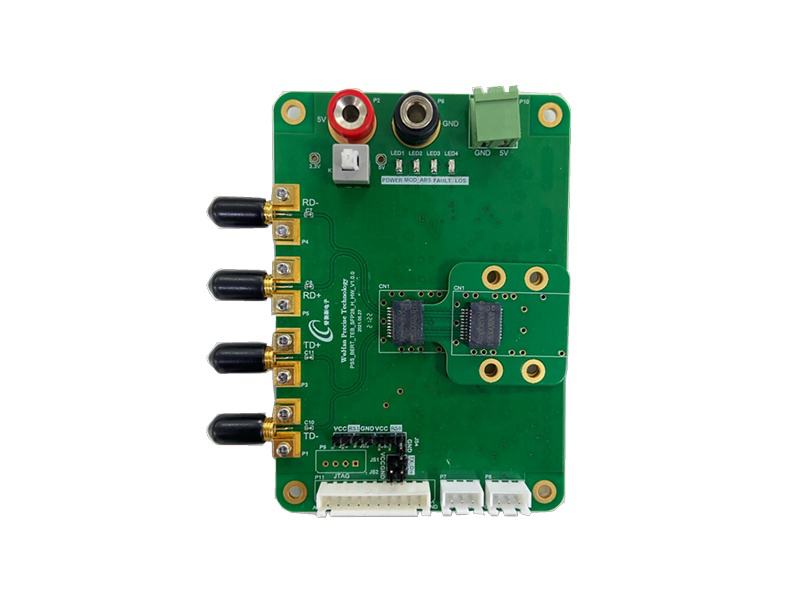

PSS BERT TEB SFP28
Support multi-pin level eye diagram conversion: Yes Compatible with various power interface formats: Yes Optional plug-in small cards with excellent frequency performance: Yes No adapter board, no single-chip microcomputer: Yes -
P55 BERT TEB QSFP28-#3
Version Description: Fixture-only, single-unit customization -
P55 BERT TEB Q5FP-DD-#3
Fixture: Only includes fixtures Cable customization: Customized -
PSS ELSFP3T001
Module Test Quantity: 2端口 Module Package Type: ELSFP Optical Interface: FC/APC Fiber Specification: SM, 9/125um Communication Interface: RS232, LAN -
P55_BERT_TEB_OSFP-#1
Version Description: P55_BERT_TEB_OSFP-#1 -
COBT2001
Supported Module Types: SFP, QSFP, QSFP-DD, OSFP SFP Type: 28PCS Aging Board Test Quantity: QSFP Type: 12PCS, QSFP-DD Type: 10PCS, OSFP Type: 6PCS Multi-channel Parallel Testing: Supports dual-board 4-channel parallel testing SFP Power Consumption: ≤3.3W -
PSS DCA 100G Digital Sampling Oscilloscope
Optical Channel Bandwidth: 60GHz Wavelength Range: 1200nm~1650nm Standard Wavelength: 1310/1550nm Sensitivity: <50mV Average Power (Consistency): ±0.1dB -
Error Analyzer
Output Type: 差分PAM4/NRZ Data Coding Type: PRBS 7/9/11/13/15/16/23/31; PRBS13/31Q; SSPRQ, JPO3A, JPO3B, LIN, 方波, 自定义码型, 错码插入(发端) Data Rate (Gbaud): 24.8832, 25.0, 25.06752, 25.78125, 26.5625, 27.0, 25.028, 25.125, 25.249, 25.476, 25.664, 25.0, 50.13504, 51.125, 53.125 (速率范围内支持连续可调) Frequency Accuracy: ±50ppm Maximum Output Amplitude (Differential): 1000mVpp -
P55 BERT18882
Output Type: 差分PAM4/NRZ Data Coding Type: PRBS7/9/11/13/15/23/31/58, PRBS7^58Q, SSRPQ, 自定义码型, 误码插入(发端) Data Rate (GBaud): 53.125/106.25 Frequency Accuracy: ±50ppm Maximum Output Amplitude (Differential): ＞1000mVpp -
P55 BERT3T1T66
Test Speed: 3T1T66 Interface Type: OSFP Power Supply: AC 220V Dimensions: Standard Rack Size Weight: Heavy-duty
