P55 BERT18882
The P55 BERT18882 is a high-performance bit error rate tester designed for optical communication systems, supporting PAM4/NRZ differential output types and various data coding formats.
Save to Favorites
Overview
Specifications

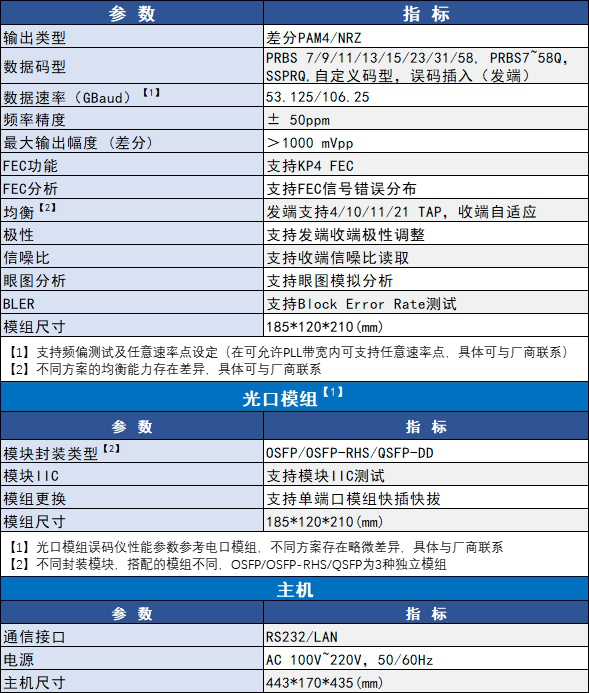

| Parameter | Value |
|---|---|
| Output Type | 差分PAM4/NRZ |
| Data Coding Type | PRBS7/9/11/13/15/23/31/58, PRBS7^58Q, SSRPQ, 自定义码型, 误码插入(发端) |
| Data Rate (GBaud) | 53.125/106.25 |
| Frequency Accuracy | ±50ppm |
| Maximum Output Amplitude (Differential) | ＞1000mVpp |
| FEC Function | 支持KP4 FEC |
| FEC Analysis | 支持FEC信号Error分布 |
| Equalization | 发端支持4/10/11/21 TAP, 收端自适应 |
| Polarity | 支持发端收端极性调整 |
| Signal-to-Noise Ratio | 支持收端信噪比读取 |
| Eye Diagram Analysis | 支持眼图模块分析 |
| BLER | 支持Block Error Rate测试 |
| Module Dimensions | 185×120×210(mm) |
| Module Packaging Type | OSFP/OSFP-RHS/QSFP-DD |
| Module IIC | 支持模块IIC测试 |
| Module Replacement | 支持单端口模块快插快拔 |
| Communication Interface | RS232/LAN |
| Power Supply | AC100V~220V, 50/60Hz |
| Host Dimensions | 443×170×435(mm) |
