Photonics Source provides 45 products. Download datasheets, request quotes, and compare function, price, and availability.
-

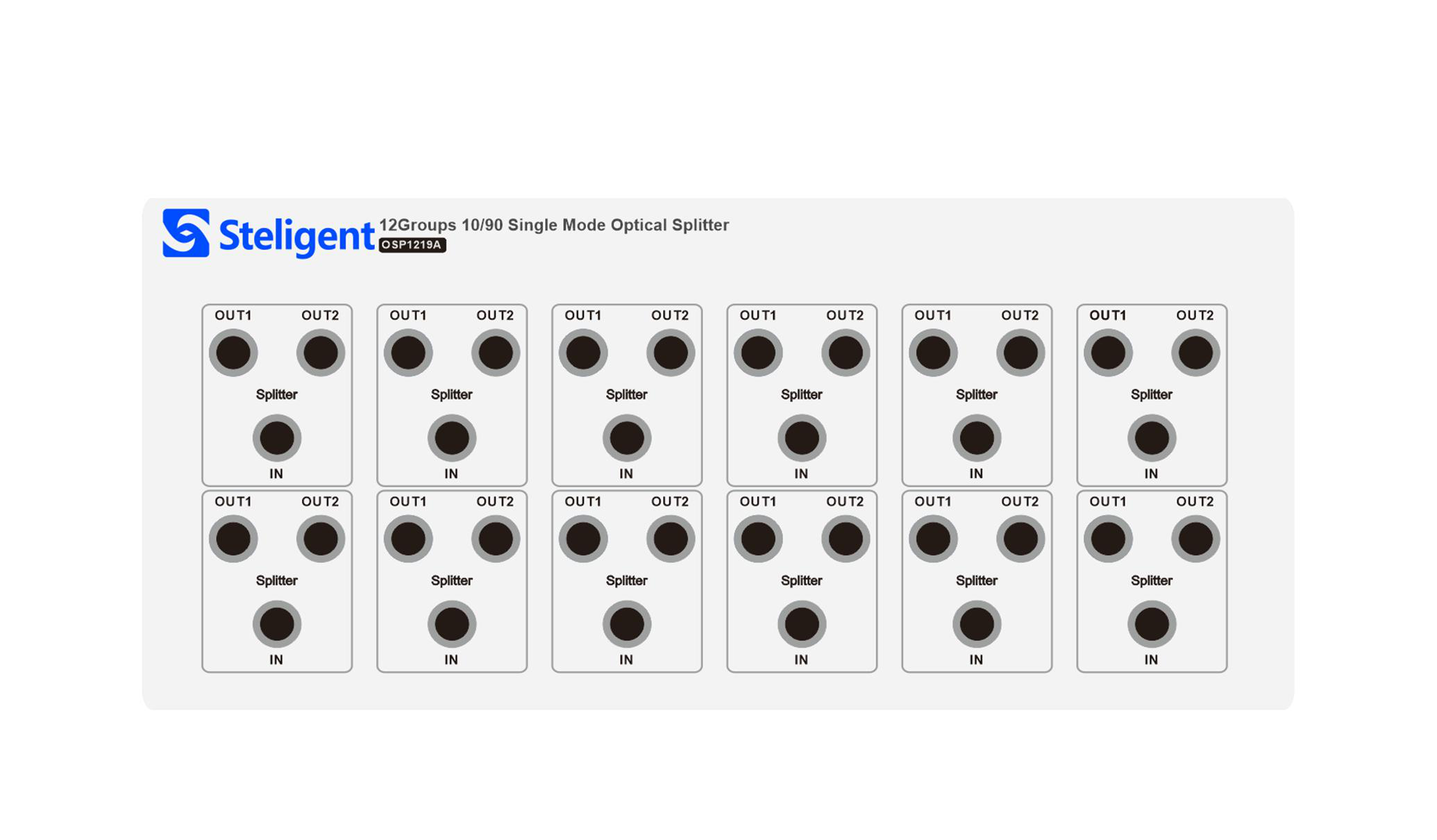

OSP1219A Series Optical Splitter
Operating Wavelength: 1310nm, 1550nm Wavelength Bandwidth: ±40nm Additional Loss (dB): ≤0.7 Splitting Ratio: 10/90 Insertion Loss (dB): ≤11.4/0.75 -

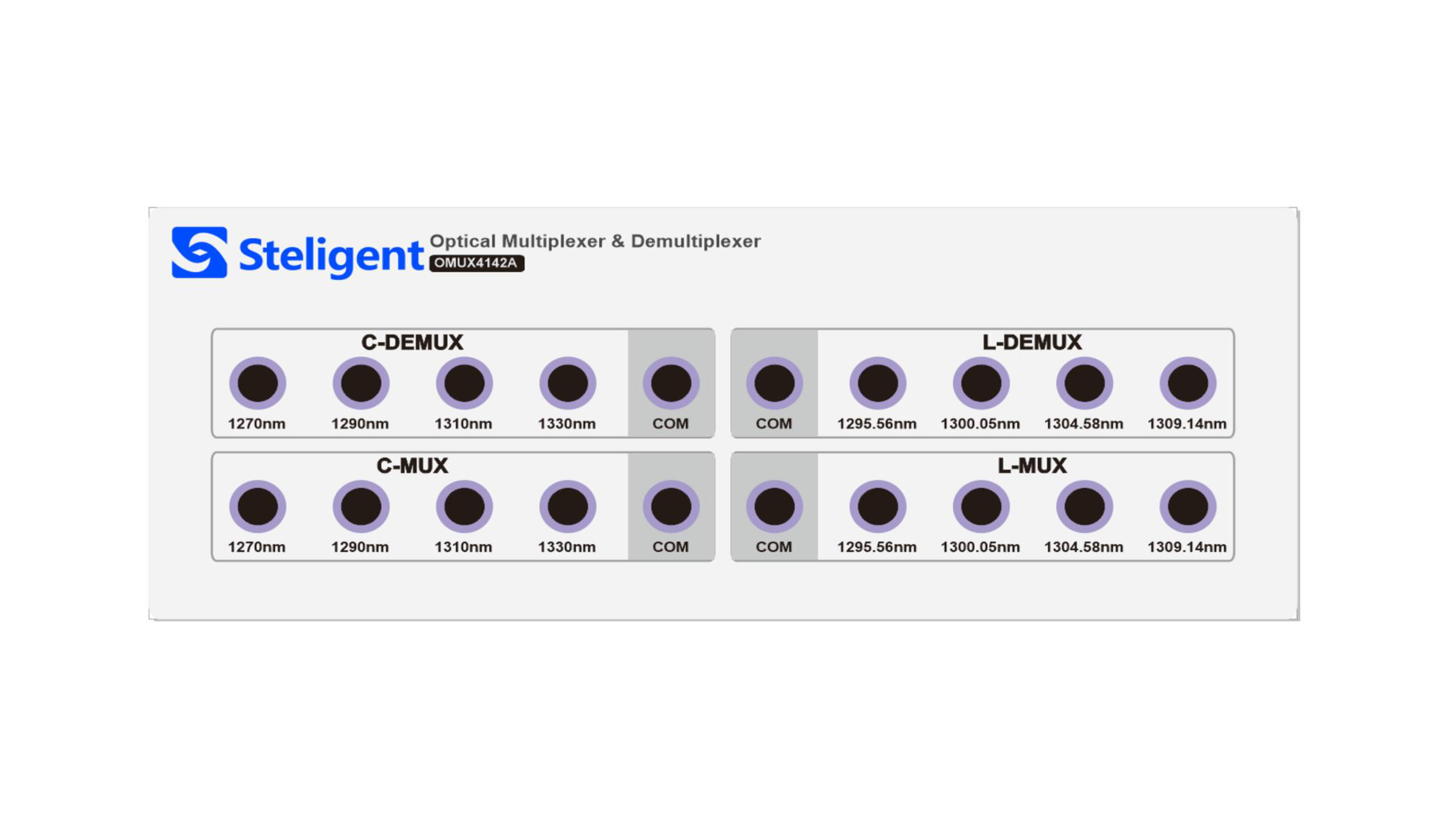

OMUX4142A Series Optical Multiplexer & Demultiplexer
Channel Center Wavelength LAN WDM: 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm Channel Center Wavelength CWDM: 1270nm, 1290nm, 1310nm, 1330nm Channel No.: 4 Insertion Loss (dB): ≤1.8 Adjacent Channel Isolation (dB): LAN WDM: ≥25, CWDM: ≥30 -
Monolithic Multi-Mode Coupler
Operating Wavelength (nm) 1x2 MMC: 850 or 1310, others on request Operating Bandwidth (nm) 1x2 MMC: ±40 Typical Excess Loss (dB) Grade P 1x2 MMC: ≤0.4 Typical Excess Loss (dB) Grade A 1x2 MMC: ≤0.7 Insertion Loss (dB) 50/50 Grade P 1x2 MMC: ≤3.7/3.7 -

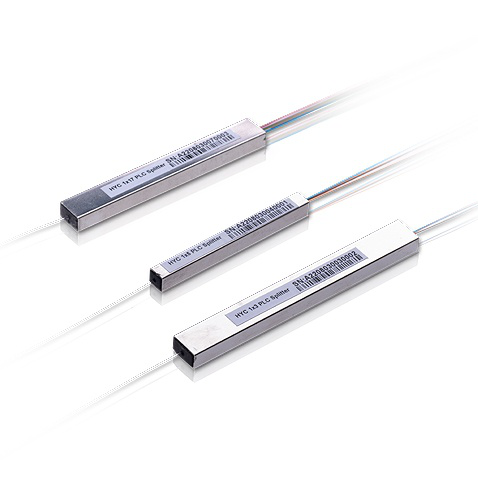

PLC Splitter
Insertion Loss (dB) 1x2: ≤4.0 Insertion Loss (dB) 1x4: ≤7.4 Insertion Loss (dB) 1x8: ≤10.5 Insertion Loss (dB) 1x16: ≤13.5 Insertion Loss (dB) 1x32: ≤16.5 -
PLC Splitter
Insertion Loss (dB) 1x2: ≤4.0 Insertion Loss (dB) 1x4: ≤7.4 Insertion Loss (dB) 1x8: ≤10.5 Insertion Loss (dB) 1x16: ≤13.5 Insertion Loss (dB) 1x32: ≤16.5 -

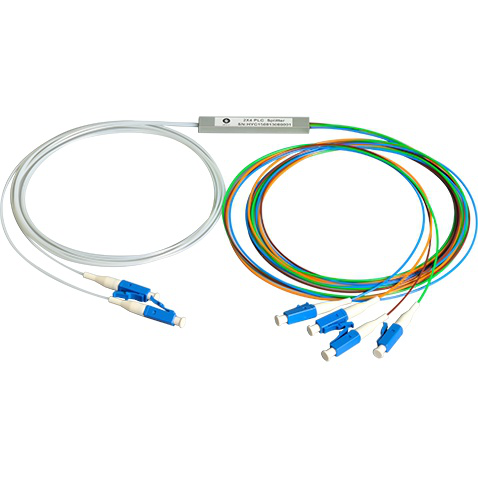

PLC optical splitter MINI module
Operating Wavelength (nm): 1260-1650 Fiber Type: G652D/G657A1/G657A2 Tube Type: 0.9mm loose tube Channel Type: 1x2, 2x2, 1x4, 2x4, 1x8, 1x16, 2x16, 1x32, 2x32, 1x64, 2x64 Insertion Loss (dB) 1x2: ≤4.0 -

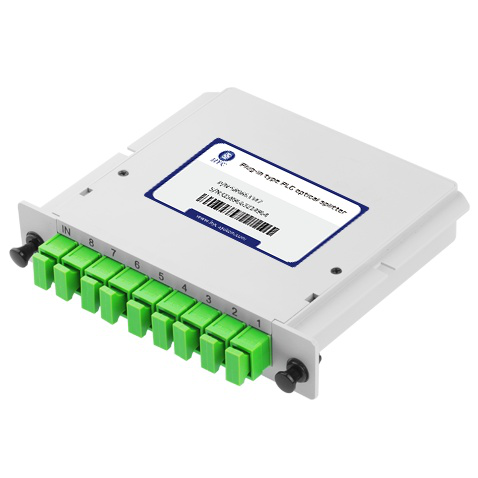

插片式PLC光分路器
Operating Wavelength (nm): 1260-1650 Fiber Type: G652D/G657A1/G657A2 Fiber Diameter (μm): 250μm Fiber or 900μm loose tube Insertion Loss (dB) 1x2: ≤4.5 Insertion Loss (dB) 1x4: ≤7.7 -

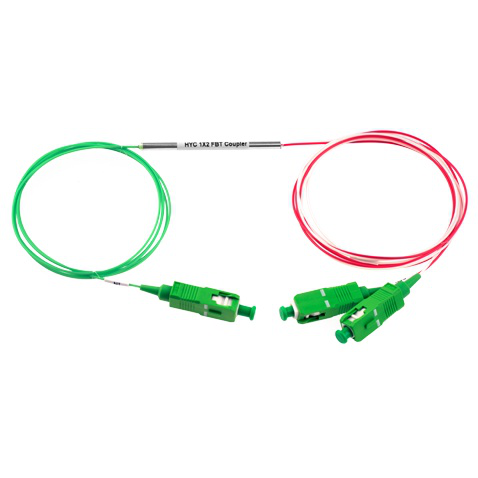

Single Mode FBT Coupler
Operating Wavelength (nm): 1310 or 1550 Operating Wavelength Range (nm): 1310±40 or 1550±40 Insertion Loss (dB) 1x2: ≤3.4 Insertion Loss (dB) 2x2: ≤3.6 Insertion Loss (dB) 1x3: ≤3.8 -

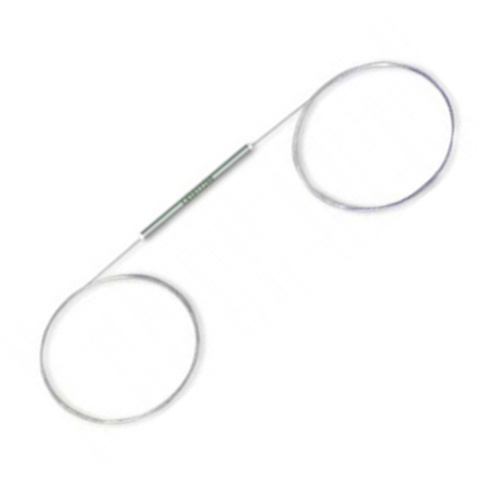

Dual Window Coupler (DWC)
Operating Wavelength: 1310 and 1550 Bandwidth: ±40 (Standard), ±80 (Ultra-wideband) Typical Additional Loss: ≤0.07 (P Grade), ≤0.1 (A Grade) Insertion Loss (dB) 50/50: ≤3.6 (P Grade), ≤3.8 (A Grade) Insertion Loss (dB) 40/60: ≤4.2/3.2 (P Grade), ≤4.4/3.4 (A Grade) -
PLC Optical Splitter MINI Module
Operating Wavelength (nm): 1260-1650 Fiber Type: G657D/G657A1/G657A2 Cable type: MINI Fan-out 0.9mm loose tube Channel Count 1x2: 1x2 Channel Count 1x4: 1x4 -

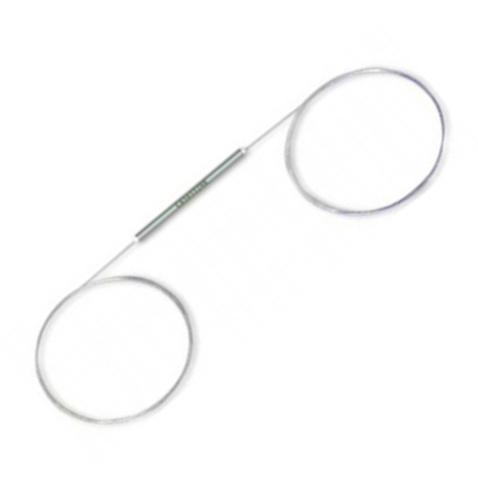

Full Band Coupler
Operating Wavelength: 1260-1620nm Operating Bandwidth: ±40nm Typical Excess Loss: ≤0.07 (P grade), ≤0.1 (A grade) Insertion Loss (dB) 50/50: ≤3.8 (P grade), ≤4.0 (A grade) Insertion Loss (dB) 45/55: ≤4.45/3.45 (P grade), ≤4.65/3.65 (A grade) -

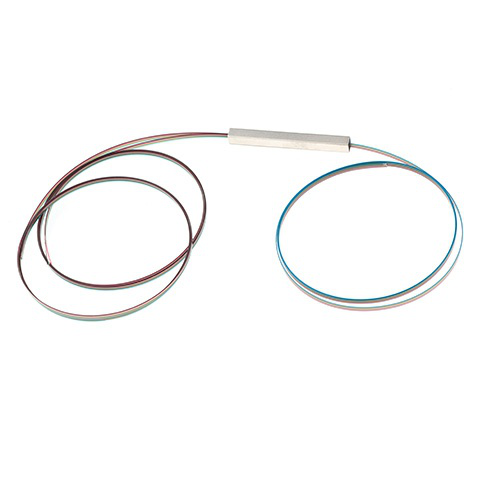

N-1x2 PLC Optical Splitter
Operating Wavelength (nm): 1260-1650 Fiber Type: G652D/G657A1/G657A2 Cable type: 250um Ribbon fiber or 900um loose tube Channel Number 4x1x2: 4x1x2 Channel Number 6x1x2: 6x1x2 -

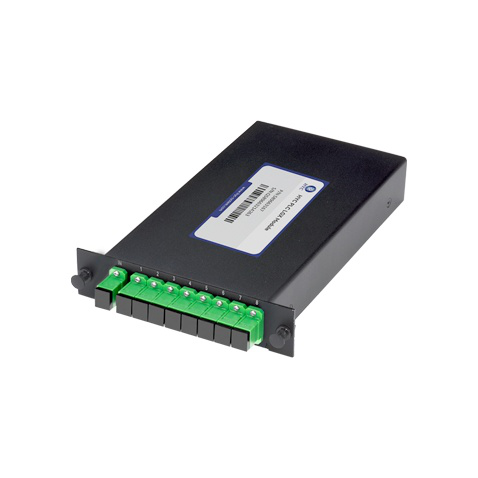

LGX PLC Optical Splitter
Operating Wavelength (nm): 1260-1650 Fiber Type: G652D/G657A1/G657A2 Cable type: 250μm Fiber or 900μm loose tube Channel Number 1x2: 1x2 Channel Number 2x2: 2x2 -

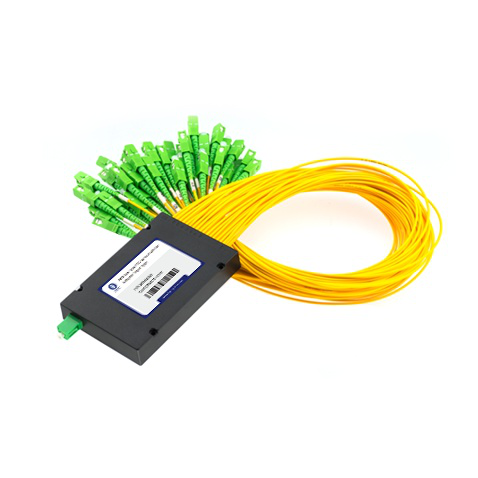

ABS Box PLC Optical Splitter - Adapter Input Type
Operating Wavelength (nm): 1260-1650 Fiber Type: G652D/G657A1/G657A2 Cable type: 0.9/2.0/3.0mm loose tube Insertion Loss (dB) 1x2: ≤4.0 Insertion Loss (dB) 1x4: ≤7.4 -

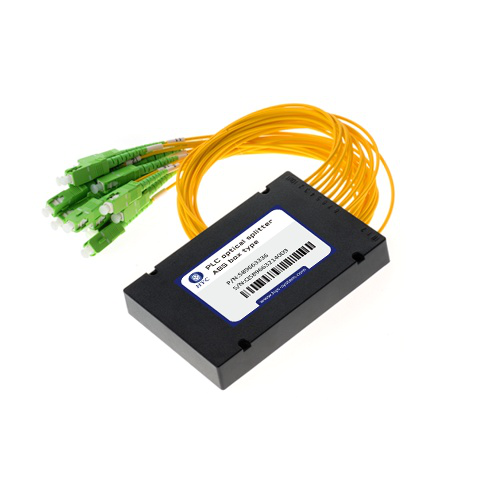

ABS Box PLC Optical Splitter
Operating Wavelength (nm): 1260-1650 Fiber Type: G652D/G657A1/G657A2 Cable type: 0.9/2.0/3.0mm loose tube Insertion Loss (dB) 1x2: ≤4.0 Insertion Loss (dB) 1x4: ≤7.4 -

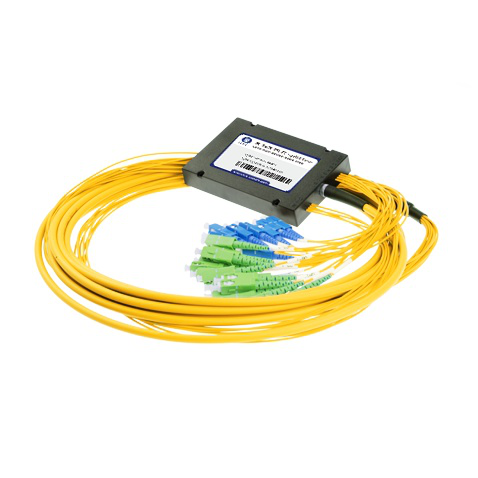

ABS Box N-1x2 PLC Optical Splitter
Operating Wavelength (nm): 1260-1650 Fiber Type: G652D/G657A1/G657A2 Fiber Diameter (mm): 0.9/2.0/3.0 loose tube and 3.0/6.0 multi-core optical cable Channel Count: 4-1x2, 6-1x2, 8-1x2 Insertion Loss (dB): ≤4.2 -

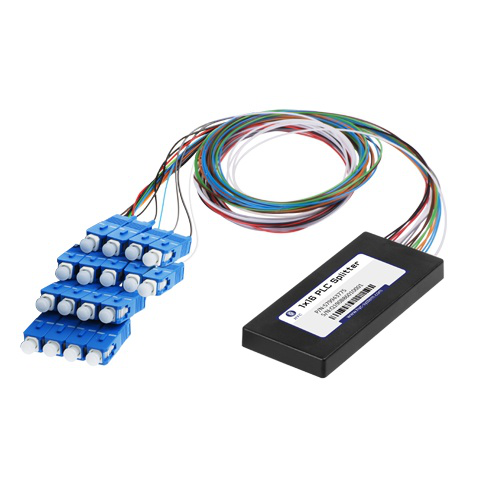

ABS MINI Box Type PLC Splitter
Operating Wavelength (nm): 1260-1650 Fiber Type: G652D/G657A1/G657A2 Fiber Diameter (mm): 0.9/2.0/3.0mm loose tube Channel Count 1x2: 1x2 Insertion Loss (dB) 1x2: ≤4.5 -

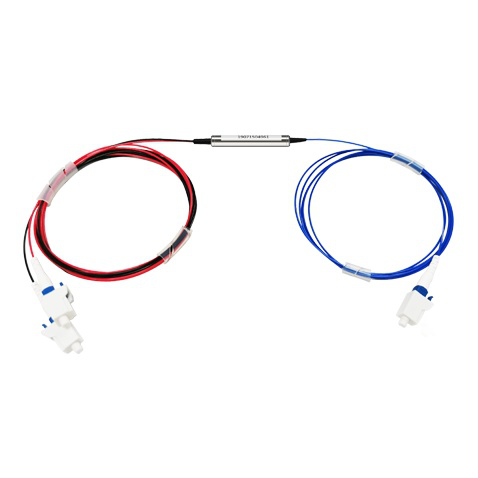

3-Port TAP Device
Fiber Mode Single Mode(SM): 1260-1650nm Fiber Mode Multimode(MM): 800-900nm TAP Split Ratio 90:10 Single Mode(SM): ≤1.0dB TAP Split Ratio 80:20 Single Mode(SM): ≤1.5dB TAP Split Ratio 70:30 Single Mode(SM): ≤2.1dB -

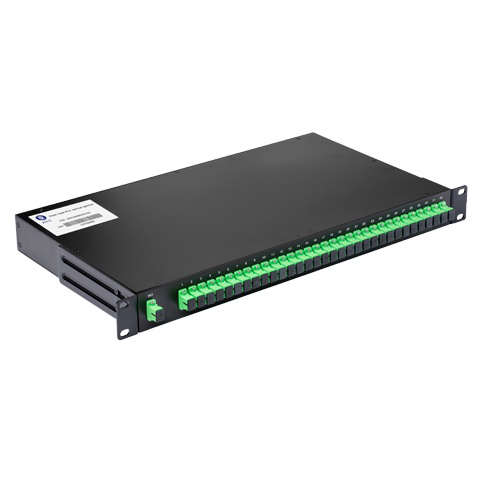

Rack-mounted PLC Splitter
Operating Wavelength (nm): 1260-1650 Fiber Type: G652D/G657A1/G657A2 Fiber Diameter (μm): 250μm Fiber or 900μm loose tube Insertion Loss (dB) 1x2: ≤4.5 Insertion Loss (dB) 2x2: ≤4.7
