PSS DCA 100G Digital Sampling Oscilloscope
The PSS DCA 100G Digital Sampling Oscilloscope is a high-performance optical and electrical signal testing device designed for precise measurements in optical communication systems.
Save to Favorites
Overview
Specifications

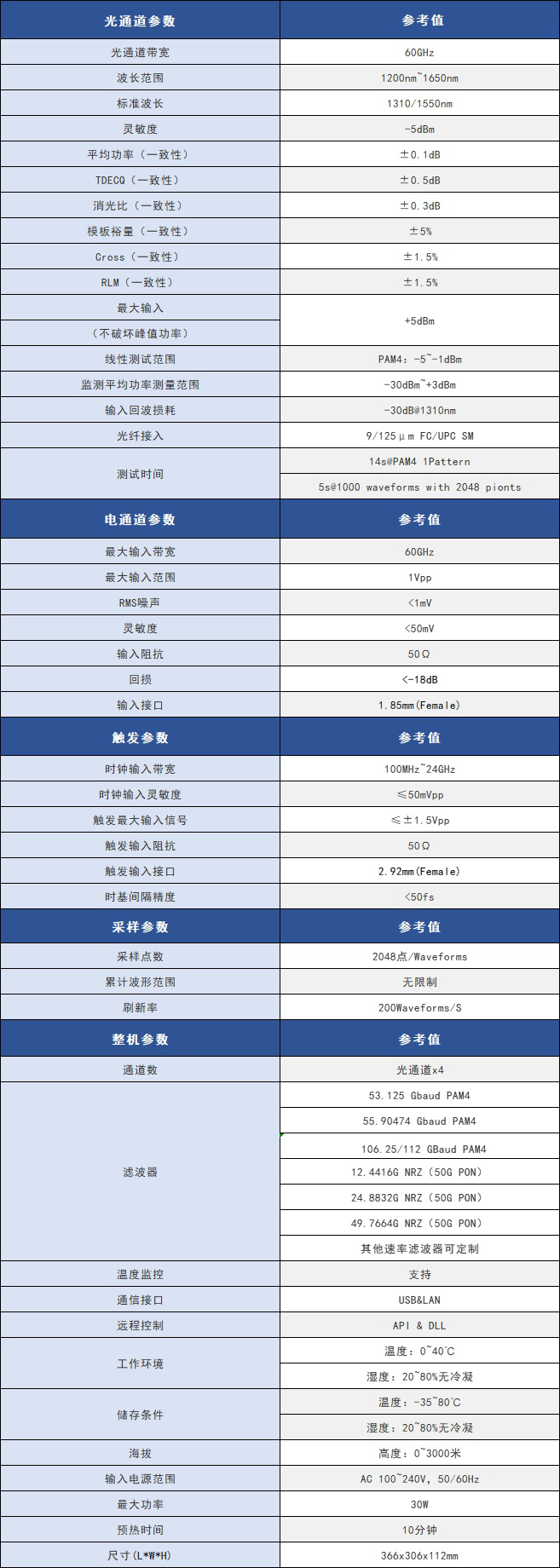

| Parameter | Value |
|---|---|
| Optical Channel Bandwidth | 60GHz |
| Wavelength Range | 1200nm~1650nm |
| Standard Wavelength | 1310/1550nm |
| Sensitivity | <50mV |
| Average Power (Consistency) | ±0.1dB |
| TDEQ (Consistency) | ±0.5dB |
| Extinction Ratio (Consistency) | ±0.3dB |
| Mask Margin (Consistency) | ±5% |
| Cross (Consistency) | ±1.5% |
| RLM (Consistency) | ±1.5% |
| Maximum Input | 5dBm |
| Non-Damage Peak Power | +5dBm |
| Linear Test Range | PAM4:-5~1dBm |
| Average Power Monitoring Range | -30dBm~+1dBm |
| Input Return Loss | -30dB@1310nm |
| Fiber Access | 9/125μm FC/UPC SM |
| Test Time | 14s@PAM4 1Pattern, 5s@1000 waveforms with 2048 points |
| Maximum Input Bandwidth | 60GHz |
| Maximum Input Range | 1Vpp |
| RMS Noise | <1mV |
| Input Impedance | 50Ω |
| Return Loss | <-18dB |
| Input Interface | 1.85mm (Female) |
| Clock Input Bandwidth | 100MHz~24GHz |
| Clock Input Sensitivity | ≤50mVpp |
| Trigger Maximum Input Signal | ≤±1.5Vpp |
| Trigger Input Impedance | 50Ω |
| Trigger Input Interface | 2.92mm (Female) |
| Time Base Interval Accuracy | <50fs |
| Sampling Points | 2048 points/Waveforms |
| Accumulated Waveform Range | Unlimited |
| Refresh Rate | 200 Waveforms/s |
| Number of Channels | Optical Channel x4 |
| Baud Rate | 53.125Gbaud PAM4, 55.90474Gbaud PAM4, 106.25/112Gbaud PAM4, 24.8832G NRZ (50G PON), 49.7664G NRZ (50G PON) |
| Temperature Monitoring | Supported |
| Communication Interface | USB & LAN |
| Remote Control | API & DLL |
| Operating Environment Temperature | 0~40°C |
| Operating Environment Humidity | 20~80% Non-condensing |
| Storage Conditions Temperature | -35~80°C |
| Storage Conditions Humidity | 20~80% Non-condensing |
| Altitude | 0~3000m |
| Input Power Range | AC 100~240V, 50/60Hz |
| Maximum Power | 30W |
| Warm-up Time | 10 minutes |
| Dimensions (L×W×H) | 366×306×112mm |
