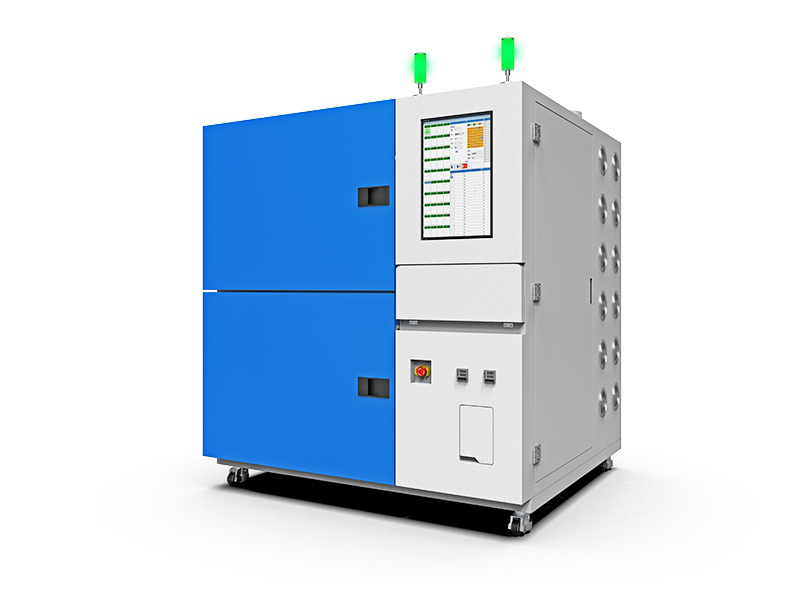

Optoelectronic Aging Test Equipment
This optoelectronic aging test equipment is designed for precise and efficient testing of optical modules, ensuring high reliability and performance in various applications.
Save to Favorites
Overview

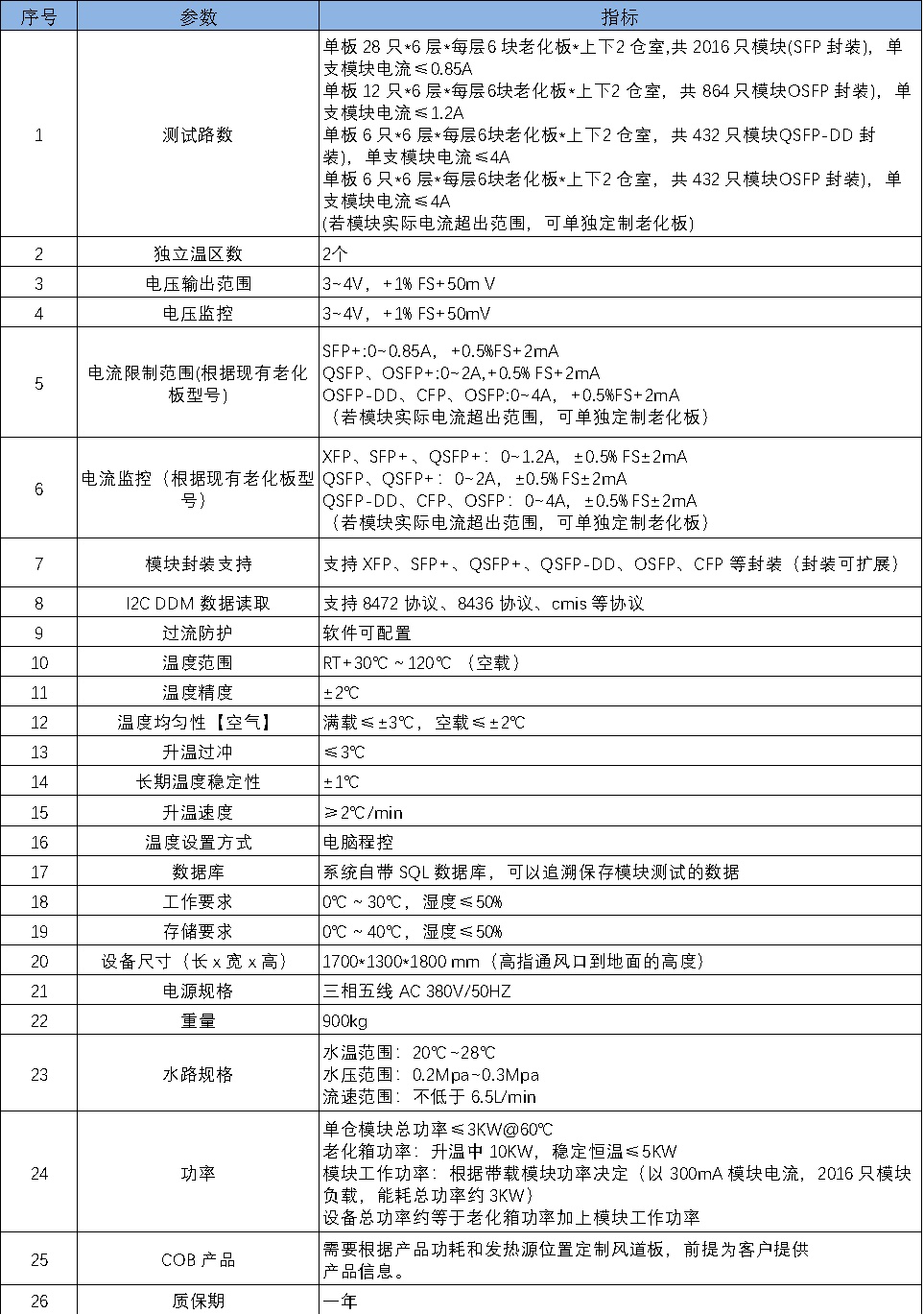

Specifications
| Parameter | Value |
|---|---|
| Test Channels | 单板28路*6层*每层6块老化板=上下2仓室，共2016只模块(SFP封装)，单支持模块电流0.85A |
| Independent Temperature Zones | 2 complete plans |
| Voltage Range | 3-4V, ±1%FS±50mV |
| Voltage Monitoring | 3-4V, ±1%FS±50mV |
| Current Limit Range (Based on Existing Aging Board Models) | SFP:0~0.85A, ±0.5%FS±2mA; QSFP, OSFP:0~0.4A, ±0.5%FS±2mA; QSFP-DD, CFP:0~0.4A, ±0.5%FS±2mA |
| Current Monitoring (Based on Existing Aging Board Models) | XFP, SFP, QSFP+:0~1.2A, ±0.5%FS±2mA; QSFP, QSFP+:0~0.4A, ±0.5%FS±2mA; QSFP-DD, CFP:0~0.4A, ±0.5%FS±2mA |
| Module Package Support | 支持XFP、SFP+、QSFP+、QSFP-DD、OSFP、CFP等封装（封装可扩展） |
| I2C DDM Data Reading | 支持8472协议、8436协议、cmis等协议 |
| Overcurrent Protection | 软 Items可配置 |
| Temperature range | RT+30℃~120℃（空气） |
| Temperature Accuracy | ±2℃ |
| Temperature Uniformity [Air] | 满载≤±3℃，空载≤±2℃ |
| Temperature Rise Impact | ≤3℃ |
| Long-term Temperature Stability | ±1℃ |
| Temperature Rise Rate | ≥2℃/min |
| Temperature Setting Method | 电脑控制 |
| Database | 系统自带SQL数据库，可以溯源保存模块测试的数据 |
| Working Requirements | 0℃~30℃，湿度≤50% |
| Device Dimensions (L×W×H) | 1700×1300×1800mm（高度需加风口到顶部的高度） |
| Power Specifications | 三相五线AC 380V/50Hz |
| Weight | 900kg |
| Waterway Specifications | 水温范围：20℃~28℃；水压：0.2Mpa~0.3Mpa；流速：不低于6.5L/min |
| Power | 单仓恒温功率3KW@60℃；单仓升温功率10KW；单仓恒温功率≤5KW；单仓升温功率≤10KW；Equipment整体恒温功率根据模块负载功率计算（以300mA模块负载功率，2016只模块负载功率约为1.8KW） |
| COB Products | 可根据客户需求定制Products测试位置及Products测试电流，客户自提供 |
| Warranty Period | 一年 |
