PSS ELSFP3T001
The PSS ELSFP3T001 is a high-performance optical module testing system designed for precise and efficient testing of optical modules. It features advanced temperature control and monitoring capabilities, ensuring reliable and accurate results.
Save to Favorites
Overview
Specifications

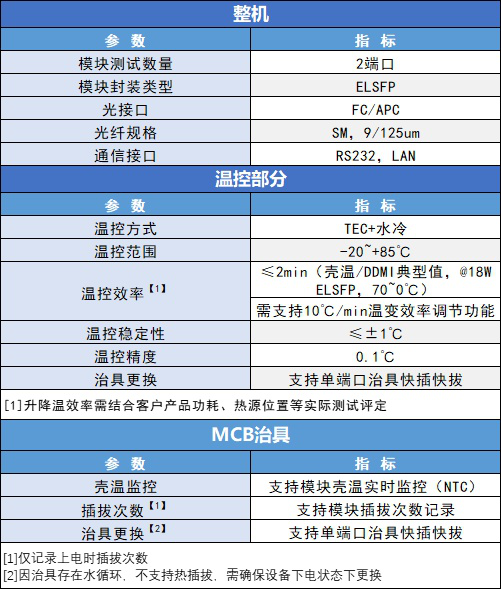

| Parameter | Value |
|---|---|
| Module Test Quantity | 2端口 |
| Module Package Type | ELSFP |
| Optical Interface | FC/APC |
| Fiber Specification | SM, 9/125um |
| Communication Interface | RS232, LAN |
| Temperature Control Method | TEC+Water Cooling |
| Temperature Control Range | -20~85°C |
| Temperature Control Efficiency | ≤2min (at 18W ELSFP, 70°C) |
| Temperature Stability | ≤±1°C |
| Temperature Control Accuracy | 0.1°C |
| Fixture Replacement | Support single-end fixture quick replacement |
| Temperature Monitoring | Support real-time temperature monitoring (NTC) |
| Plugging Times | Record module plugging times |
