Photonics Source provides 58 products. Download datasheets, request quotes, and compare function, price, and availability.
-

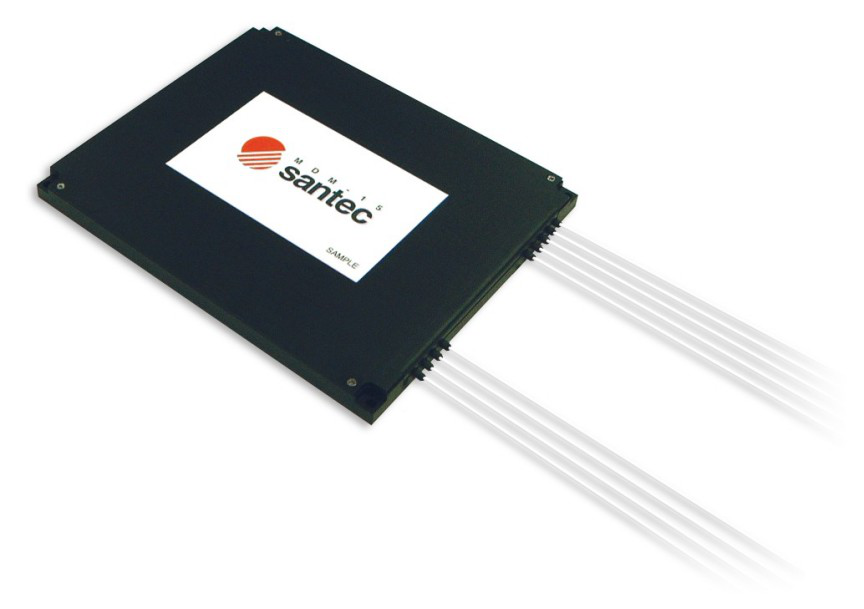

MDM-15
Wavelength Range (100GHz): 1520-1610nm Channel Spacing (100GHz): 100GHz Number of Channels (100GHz): 4 Passband (100GHz): ±0.11nm Flatness (100GHz): 0.5dB -

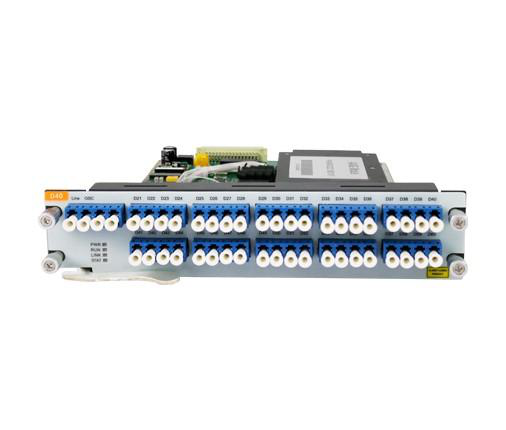

Optical Fiber Distribution Module
Insertion Loss (dB): ≤0.5 Return Loss (dB): ≥50 Operating Wavelength Range (nm): 1260-1650 Connector Type: SC/APC Channel Count: 40 -

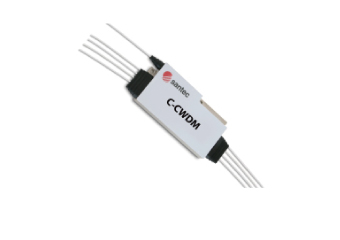

C-CWDM
Channel Spacing (nm): 20 Center Wavelength (nm): 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 Passband (nm): 13 Insertion Loss (Mux) (dB): ≤1.5 Insertion Loss (Demux) (dB): ≤1.5 -

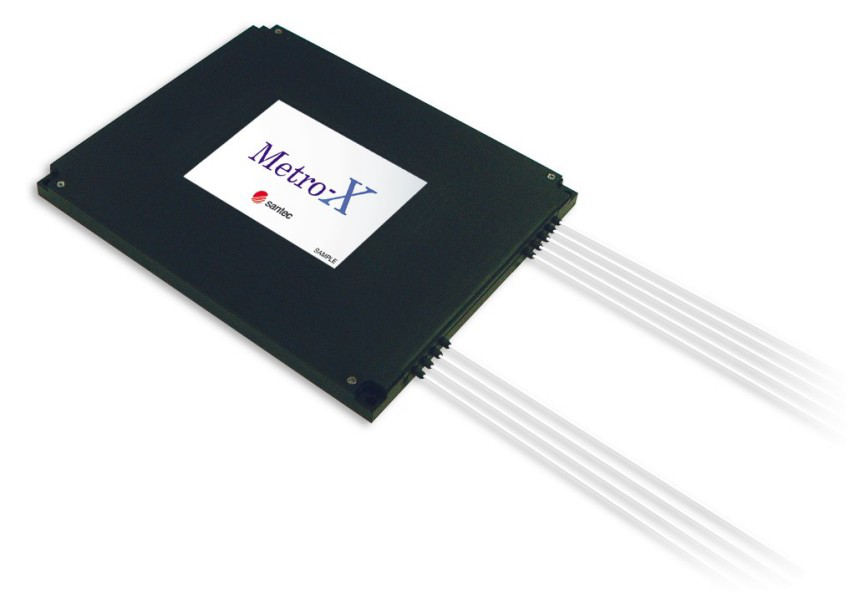

Metro-X CWDM Mux/Demux Filter
Wavelength Range (nm): 1290-1350, 1470-1610 Operating Temperature (°C): -10 to 70 Insertion Loss (Mux) (dB): ≤1.4 (4ch), ≤2.6 (8ch) Link Loss (Demux) (dB): ≤1.7 (4ch), ≤2.9 (8ch) Insertion Loss (Mux and Demux) (dB): ≤2.5 (4ch), ≤3.7 (8ch) -

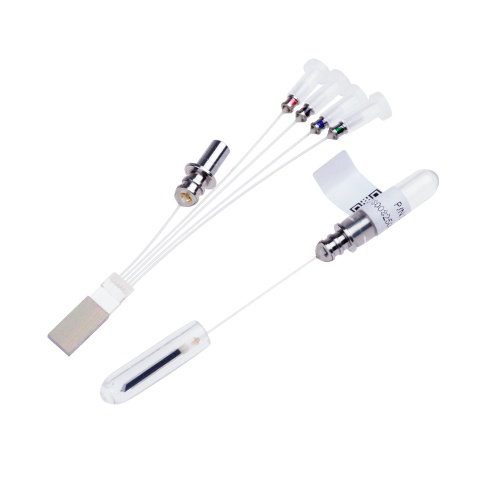

AWG CWDM4 Module
Channel Count: 4 Channel Spacing: 20 Central Wavelength (nm): 1271,1291,1311,1331 Central Wavelength Shift at 1dB (nm): ±1 Bandwidth at 1dB (nm): ≥10 -

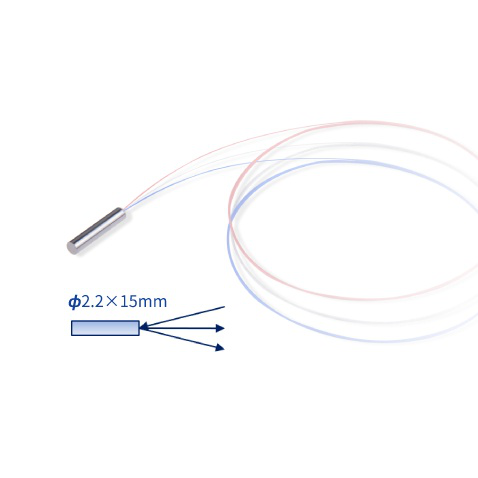

Fiber Optic Coupler
Outer Diameter: 2.2mm Length: 15mm -

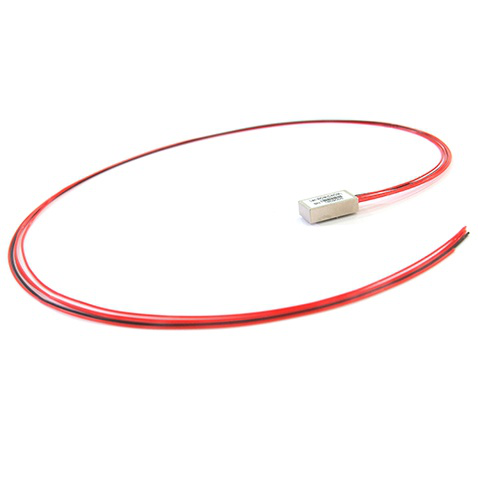

LAN WDM Module
Operating Wavelength (nm) 1271,1291,1311,1331: 1271,1291,1311,1331 Operating Wavelength (nm) 1295.56,1300.06,1304.59,1309.14: 1295.56,1300.06,1304.59,1309.14 Transmission Bandwidth (nm) 1271,1291,1311,1331: ±6.5 Transmission Bandwidth (nm) 1295.56,1300.06,1304.59,1309.14: ±1.0 Channel Insertion Loss (dB) 1271,1291,1311,1331: ≤1.5 -
PLC Splitter Module
Insertion Loss (dB) 1x2: ≤4.0 Insertion Loss (dB) 1x4: ≤7.4 Insertion Loss (dB) 1x8: ≤10.5 Insertion Loss (dB) 1x16: ≤13.8 Insertion Loss (dB) 1x32: ≤16.5 -

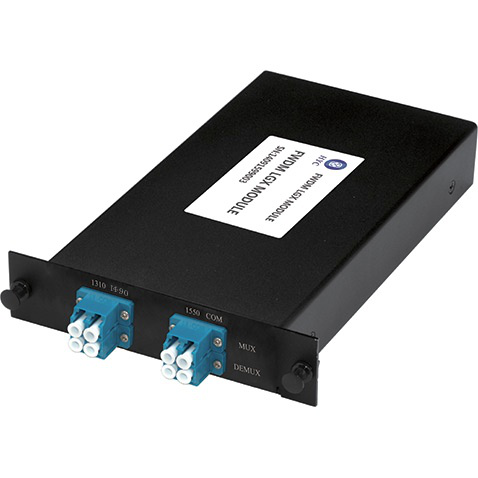

FWDM Multiplexing and Demultiplexing LGX Module
Operating Wavelength (nm): 1260-1670nm IP Signal Wavelength (nm): 1260-1360(upstream), 1480-1500(downstream) CATV Signal Wavelength (nm): 1540-1560 Insertion Loss (dB): ≤1.5 Isolation (dB): ≥30 -

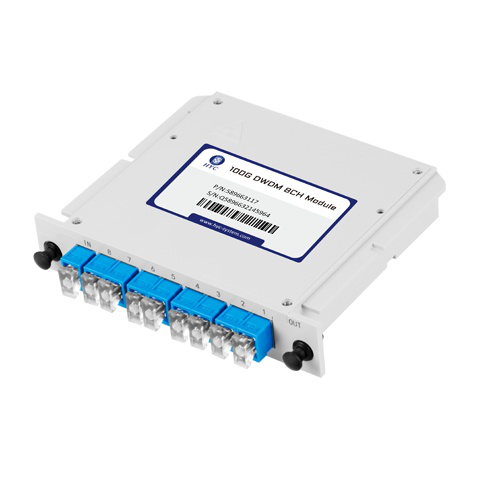

DWDM 插片式模块
Channel Count 4CH: 4 Channel Count 8CH: 8 Channel Count 12CH: 12 Channel Count 18CH: 18 Operating Wavelength: 1520-1600nm -

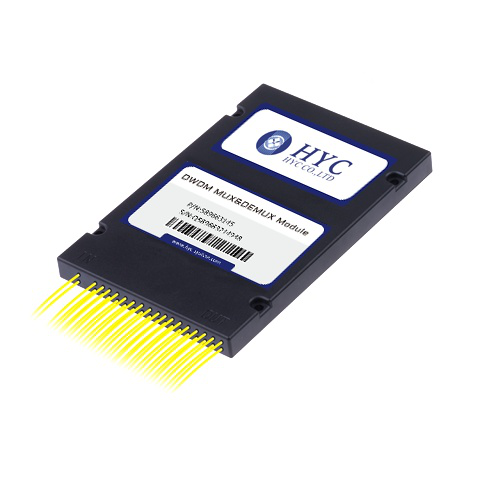

DWDM Mux & Demux ABS Module
Channel Count 2: 2 Channel Count 4: 4 Channel Count 8: 8 Channel Count 12: 12 Channel Count 16: 16 -

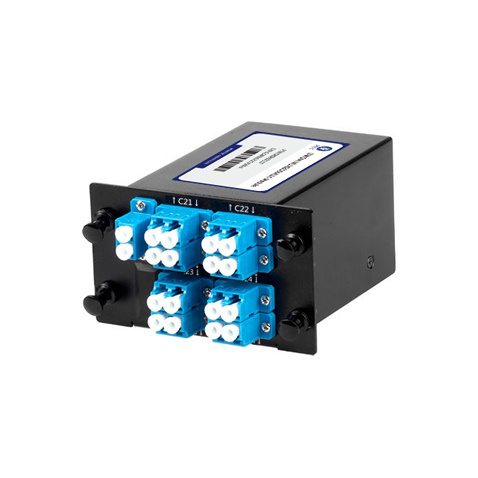

DWDM Multiplexing & Demultiplexing LGX Module
Channel Count 2CH: 2 Channel Count 4CH: 4 Channel Count 8CH: 8 Channel Count 12CH: 12 Channel Count 16CH: 16 -

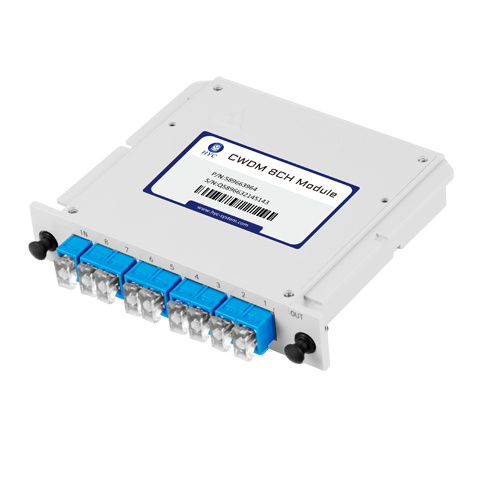

CWDM 插片式模块
Channel Count 4CH: 4 Channel Count 8CH: 8 Channel Count 12CH: 12 Channel Count 16CH: 16 Operating Wavelength (nm): 1260-1620 -

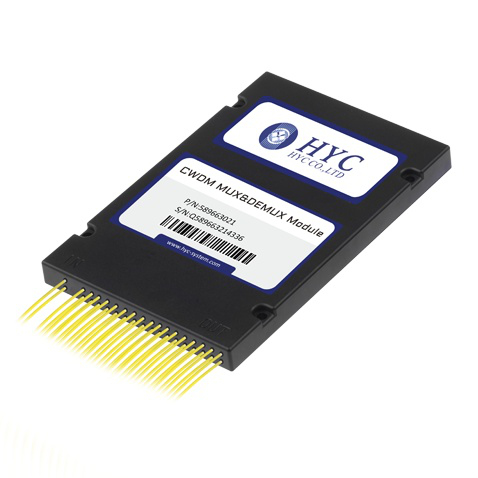

CWDM Multiplexing & Demultiplexing ABS Module
Channel Count: 2, 4, 8, 12, 16, 18 Operating Wavelength: 1260-1650&1460-1650nm Transmission Bandwidth: ±6.5, ±7.0, ±7.5nm Insertion Loss (dB): ≤1.0, ≤1.5, ≤2.5, ≤2.5 (8 channels), ≤3.0 (16 channels), ≤3.5 (18 channels) Channel Isolation (dB): >30 -

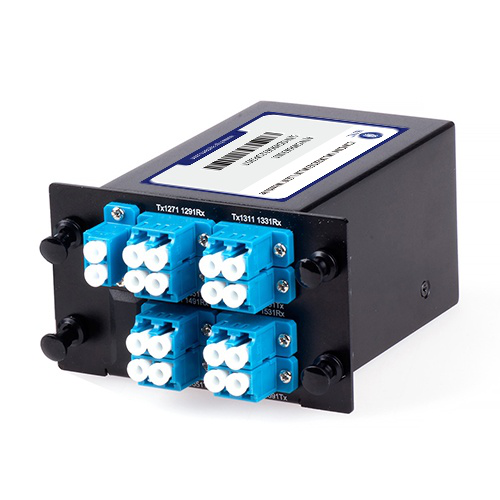

CWDM Mux & Demux LGX Module
Channel Count: 2,4,8,12,16,18 Operating Wavelength (nm): 1260-1650&1460-1650 Transmission Bandwidth (nm): ±6.5,±7.0,±7.5 Insertion Loss (dB): ≤1.0,≤1.5,≤2.5,≤3.0 (for 12 channels),≤3.5 (for 18 channels) Adjacent Channel Isolation (dB): ≥30 -

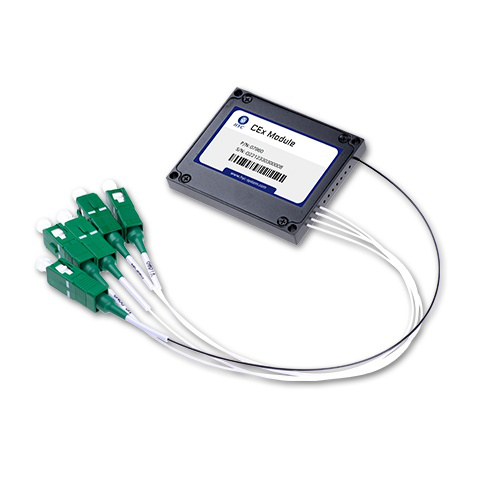

共存波分模块（CEx-WDM）
Operating Wavelength: 1260-1650nm GPON: 1290-1330&1480-1500nm XGPON: 1260-1280&1575-1580nm NGPON2: 1524-1544&1596-1603nm OTDR: 1625-1650nm -

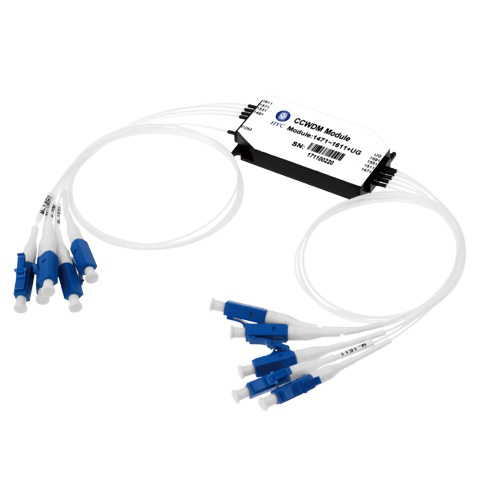

CCWDM Module
Channel Count (CH) 4: 4 Channel Count (CH) 8: 8 Operating Wavelength (nm) 4: 1260-1620 Operating Wavelength (nm) 8: 1260-1620 Transmission Bandwidth (nm) 4: ±6.5 -

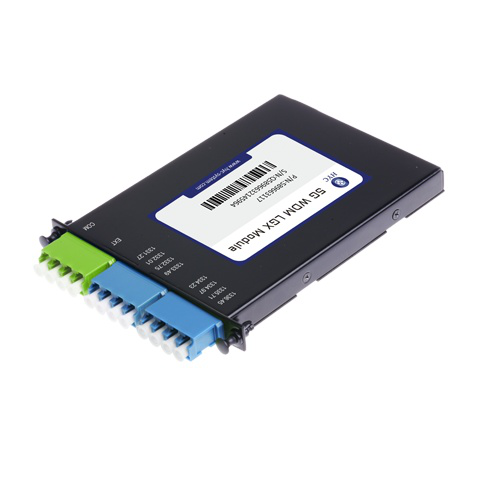

5G WDM LGX Module
Channel Count COT: 8+EXT Channel Count RT: 16+EXT Operating Wavelength (nm): 1260-1360&1400-1620 Channel Spacing (GHz): 50/100 Central Wavelength (nm): Customizable -

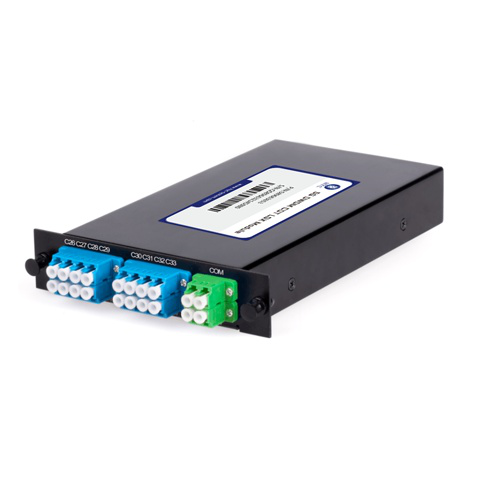

5G DWDM COT&RT LGX Module
Channel Count 4+Ext: 4+Ext Channel Count 8+Ext: 8+Ext Channel Count 12+Ext: 12+Ext Channel Count 16+Ext: 16+Ext Operating Wavelength (nm): 1260-1670 -

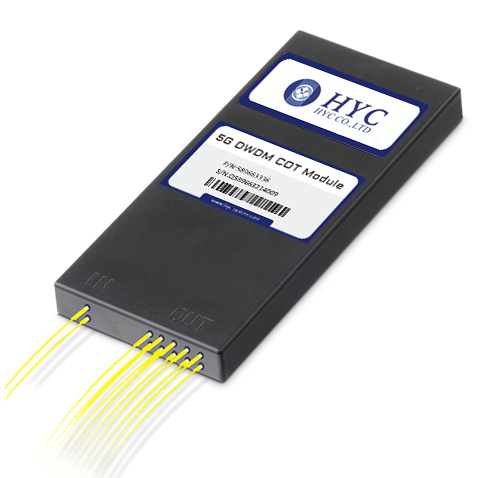

5G DWDM COT&RT ABS Module
Channel Count (CH) COT: 4+EXT Channel Count (CH) RT: 8+EXT Operating Wavelength (nm): 1260-1670 Central Wavelength (CH): 100G ITU C25-C42 Wavelength Tolerance (nm): ITU±0.11
