Error Analyzer
An advanced error analyzer designed for high-speed optical communication testing, supporting differential PAM4/NRZ signal types and various data coding formats.
Save to Favorites
Overview
Specifications

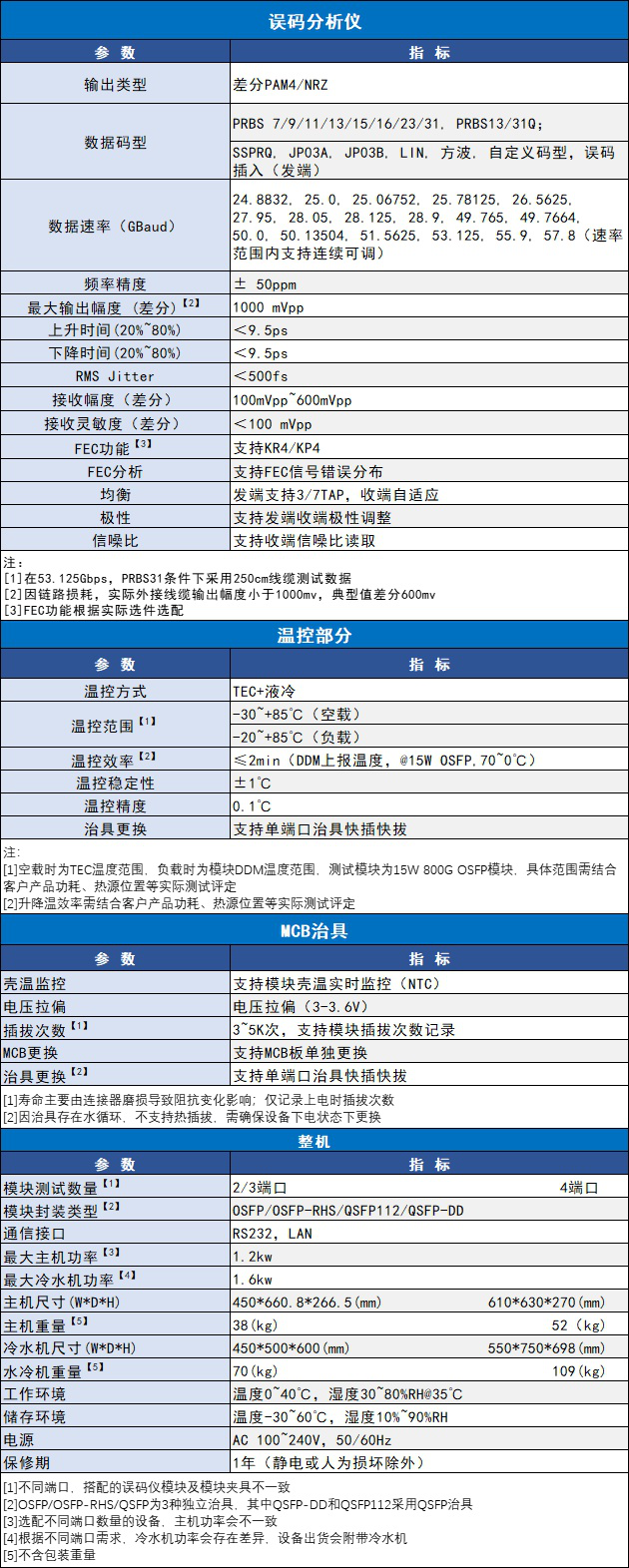

| Parameter | Value |
|---|---|
| Output Type | 差分PAM4/NRZ |
| Data Coding Type | PRBS 7/9/11/13/15/16/23/31; PRBS13/31Q; SSPRQ, JPO3A, JPO3B, LIN, 方波, 自定义码型, 错码插入(发端) |
| Data Rate (Gbaud) | 24.8832, 25.0, 25.06752, 25.78125, 26.5625, 27.0, 25.028, 25.125, 25.249, 25.476, 25.664, 25.0, 50.13504, 51.125, 53.125 (速率范围内支持连续可调) |
| Frequency Accuracy | ±50ppm |
| Maximum Output Amplitude (Differential) | 1000mVpp |
| Rise Time (20%-80%) | <9.5ps |
| Fall Time (20%-80%) | <9ps |
| RMS Jitter | <500fs |
| Receiving Amplitude (Differential) | 100mVpp~600mVpp |
| Receiving Sensitivity (Differential) | <100mVp |
| FEC Function | 支持KR4/KP4 |
| FEC Analysis | 支持FEC信号Error分布 |
| Equalization | 发端支持3/7TAP, 收端自适应 |
| Polarity | 支持发端收端极性调整 |
| Signal-to-Noise Ratio | 支持信噪比误比特误码率读取 |
| Temperature Control Method | TEC+液冷 |
| Temperature Control Range (No Load) | -30°C~85°C |
| Temperature Control Range (Load) | -20°C~85°C |
| Temperature Control Efficiency | ≤2min (DDM上报温度, @15W OSFP, 70°C) |
| Temperature Control Stability | ±1°C |
| Temperature Control Accuracy | 0.1°C |
| Fixture Replacement | 支持单端口治具快速快换 |
| Temperature Monitoring | 支持模块充温实时监控 (NTC) |
| Voltage Offset | (3.3-3.6V) |
| Plugging Times | 3*5次, 支持模块插拔次数记录 |
| MCB Replacement | 支持MCB板单独更换 |
| Module Test Quantity | 2/3端口; 4端口 |
| Module Package Type | OSFP/OSFP-RHS/QSFP112/QSFP-DD |
| Communication Interface | RS232, LAN |
| Maximum Host Power | 1.2kw; 1.6kw |
| Host Dimensions (W*D*H) | 450*660.8*266.5(mm); 610*636*270(mm) |
| Host Weight | 38(kg); 52(kg) |
| Chiller Dimensions (W*D*H) | 450*500*600(mm); 550*750*698(mm) |
| Chiller Weight | 70; 109 |
| Operating Environment | 温度0°C~40°C, 湿度30%~80%RH@35°C |
| Storage Environment | 温度-30°C~60°C, 湿度10%~90%RH |
| Power Supply | AC100~240V, 50/60Hz |
