PSX-MT3
The PSX-MT3 is a high-performance aging test system designed for optical modules. It supports multiple module types and provides precise temperature control, ensuring reliable and efficient testing.
Save to Favorites
Overview
Specifications

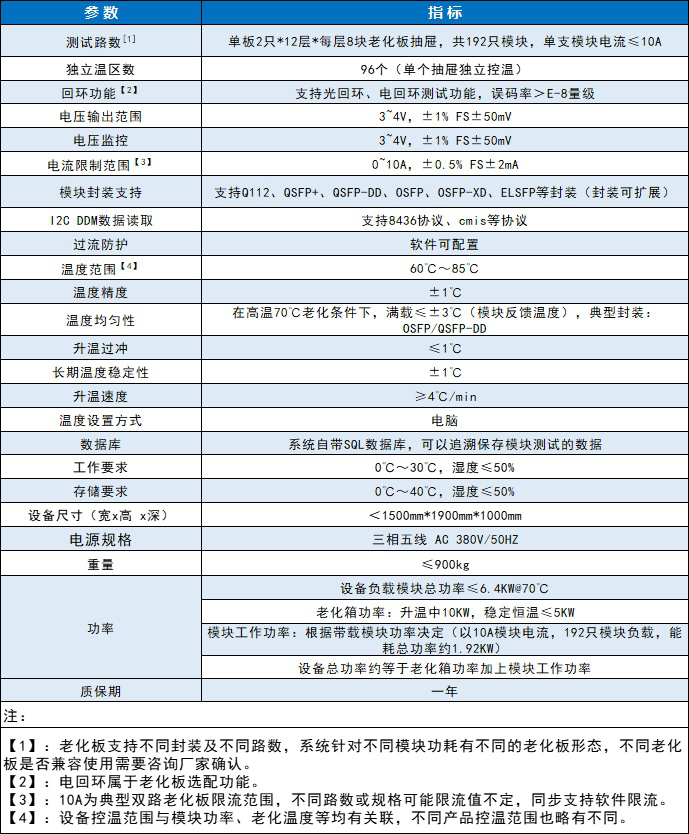

| Parameter | Value |
|---|---|
| Test Circuits | 单板2只×12层×每层8块老化板插座，共192只模块，单支模块电流≤10A |
| Independent Temperature Zones | 96 complete plans（单 complete plans抽屉独立控温） |
| Loopback Function | 支持光回环、电回环测试Function，误码率等级E-8级 |
| Voltage Output Range | 3~4V，±1%FS±50mV |
| Voltage Range | 3~4V，±1%FS±50mV |
| Current Limit Support | 0~10A，±0.5%FS±2mA |
| Module Package Support | 支持Q112、QSFP、QSFP-DD、OSFP、OSFP-XD、ELSFP等封装（封装可扩展） |
| I2C DDM Data Reading | 支持8436协议，cmis等协议 |
| Overcurrent Protection | 支持 |
| Temperature Range | 60°C~85°C |
| Temperature Accuracy | ±1°C |
| Temperature Uniformity | 在高温70°C老化条 Items下，满载状态下（模块板温度），典型封装：OSFP/QSFP-DD≤1°C，Other封装≤5°C |
| Heating Rate | >4°C/min |
| Temperature Setting Method | 电脑 |
| Database | 系统自带SQL数据库，可以遍历保存模块测试的数据 |
| Operating Requirements | 0°C~30°C，湿度≤50% |
| Storage Requirements | 0°C~40°C，湿度≤50% |
| Device Dimensions (W×D×H) | ≤1500mm×1900mm×1000mm |
| Power Specifications | 三相五线AC380V/50Hz |
| Weight | ≤900kg |
| Power | 老化负载模块总功率≤6.4KW@70°C，模块工作功率：升温10KW，稳定温度5KW，模块总功率：能耗总功率1.92KW |
| Warranty Period | 一年 |
