Photonics Source provides 21 products. Download datasheets, request quotes, and compare function, price, and availability.
-
Cable Assembly Software
Operating System Requirements: Windows 10/11 (64-bit) -

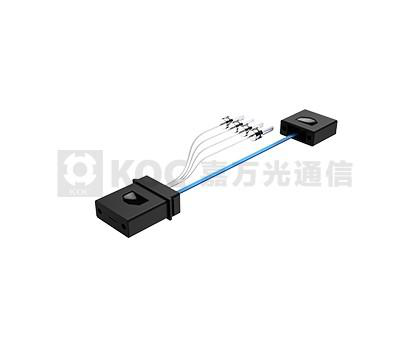

MT-SUS Assembly
Connector A: MT Ferrule with guide pin Connector B: MT&SUS or FA&SUS, Customized size/angle available for FA Fiber Type: OS1, OS2 Fiber Count: 8F Length: 20–50mm, Customized length available -

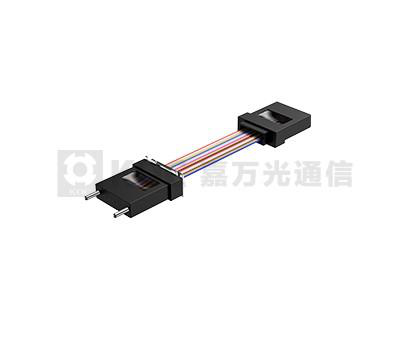

MT Assembly
Connector A: MT ferrule with guide pin Connector B: Customized Jumper/Lens, USconect Prizm/Lensed MT Fiber Shape: Ribbon/Single fibers Fiber Count: 2F/4F/8F/12F/16F/24F Fiber Type: OM3, OM4, OMS -

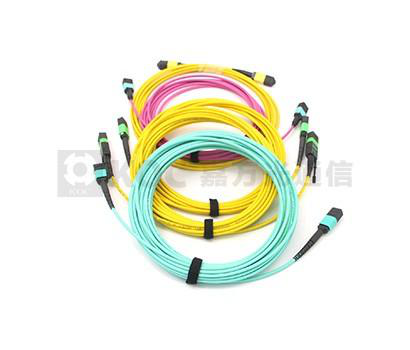

MPO Fiber Optic Patch Cable
Fiber Type: OM3, OM4, OS2 Connector Type: MPO/MTP Insertion Loss: ≤0.35dB Return Loss: ≥60dB Operating Temperature: -40°C to +85°C -

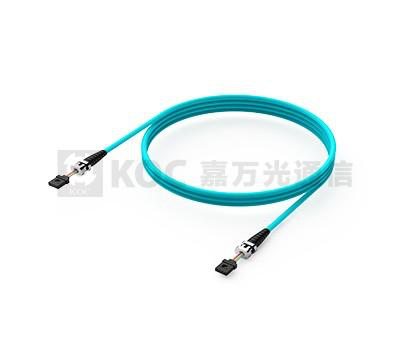

MT - MT AOC Assembly
Connector A: MT ferrule Connector B: MT ferrule Fiber Shape: Round Cable Fiber Count: 8F/12F/16F/24F Fiber Type: 0M2,0M3,0M4,OM5 -

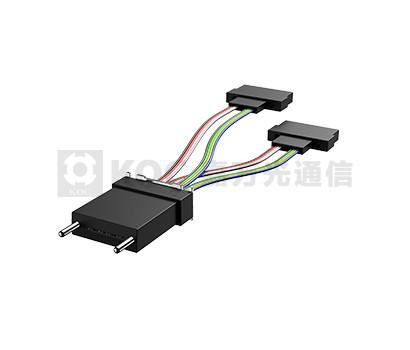

MT - 2*MT Assembly
Connector A: MT Ferrule with guide pin Connector B: MT Ferrule (2*MT ferrule) Fiber Shape: Ribbon/Single fibers Fiber Count: 8F/12F/16F/24F Fiber Type: OM2, OM3, OM4, OM5, OS1, OS2 -

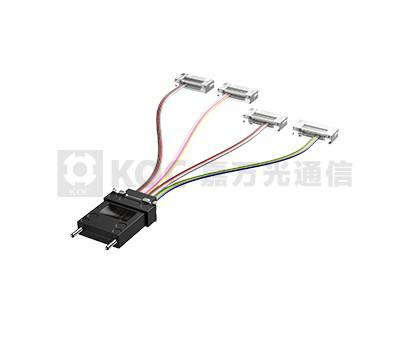

MT - 4*Jumper Assembly
Insertion Loss (dB): MT IL≤0.60, typical 0.20 Return Loss (dB): MT RL≥20 Connector A: MT ferrule with guide pin Connector B: Customized Jumper/Lens, Usconect Prizm/Lensed MT Fiber Shape: Ribbon/Single fibers -

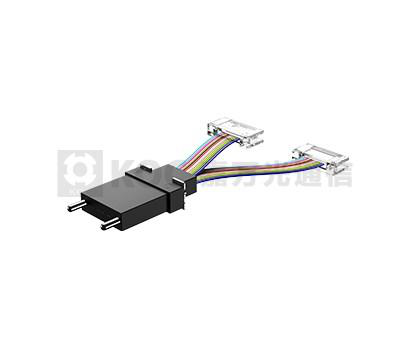

MT - 2*Jumper Assembly
Insertion Loss (dB): ≤0.60 typical 0.20 Return Loss (dB): ≥20 Connector A: MT ferrule with guide pin Connector B: Customized Jumper/Lens, Usconect Prizm/Lensed MT Fiber Type: Ribbon -

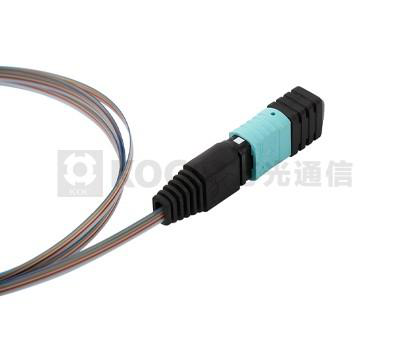

MPO Ribbon Bare Fiber Pigtail
Insertion Loss (Single Mode Standard): ≤0.75dB, typical≤0.5dB Insertion Loss (Single Mode Low Loss): ≤0.35dB, typical≤0.2dB Insertion Loss (Multimode Standard): ≤0.75dB, typical≤0.5dB Insertion Loss (Multimode Low Loss): ≤0.35dB, typical≤0.2dB Return Loss (Single Mode): ≥60dB(APC) -

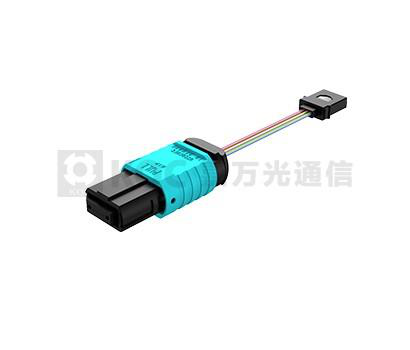

MPO-MT Assembly
Connector A: MPO Connector B: MT Ferrule Fiber Shape: Ribbon Fiber count: 12F/24F Fiber Type: OM2, OM3, OM4 -

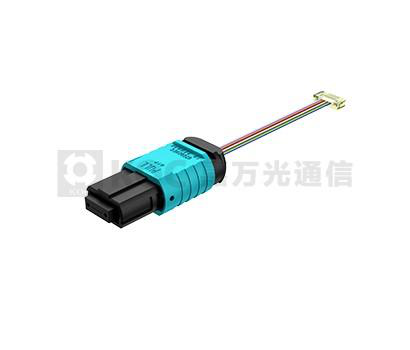

MPO - Jumper Assembly
Connector: MPO Connector Type: Customized Jumper/Lens Fiber Shape: Ribbon Fiber Count: 12F Fiber Type: OM2,OM3,OM4 -
LC-LC AOC Assembly
Connector A: 2*LC Ferrule Connector B: 2*LC Ferrule Fiber Shape: Ribbon Fiber Count: 2F Fiber Type: OM1, OM2 -

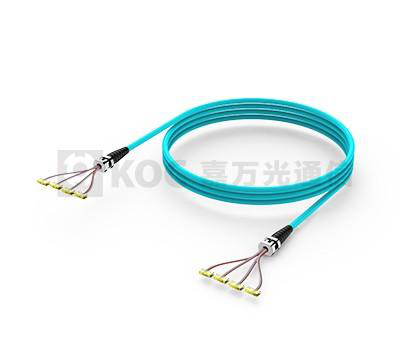

Jumper AOC Assembly
Features: GR-1435, GR-1221 compliant Transmission Mode: Multi-channel serial and parallel transmission mode Support: 40G(4x10G), 100G(4x25G), 100G(10x10G), 12x10G, 4x32G, 8x10G, 200G(8x25G), 400G(8x50G), 800G(8x100G) Coupling Mode: Passive coupling with guide pins and 0, 8 degrees; Active coupling without source and 0–45 degrees; Passive coupling with guide pins and 90 degrees Insertion Loss: MT IL ≤0.60dB typical 0.20dB; MT RL ≥20dB -

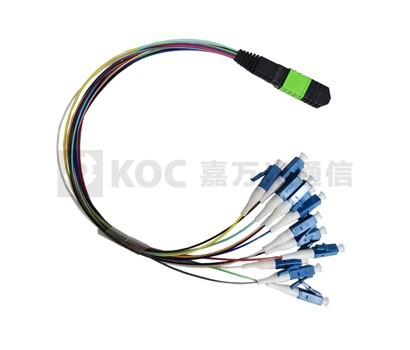

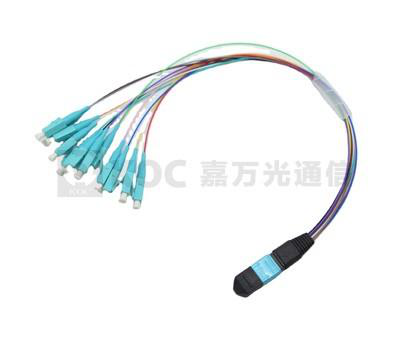

MTP/MPO - LC Fan-out Patch Cord
Insertion Loss (dB) Single mode MTP/MPO Low loss: ≤0.35 Insertion Loss (dB) Single mode MTP/MPO Standard loss: ≤0.7 Insertion Loss (dB) Single Mode LC: ≤0.3 Insertion Loss (dB) Multimode MTP/MPO Low loss: ≤0.35 Insertion Loss (dB) Multimode MTP/MPO Standard loss: ≤0.5 -

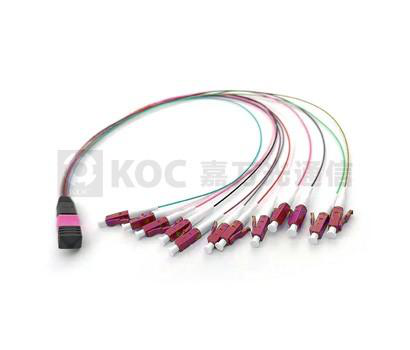

MTP/MPO - LC Fan-out Patch Cord
Insertion Loss (dB) Single Mode MTP/MPO: Low loss ≤0.35, Standard loss ≤0.7 Insertion Loss (dB) Single Mode LC: ≤0.3 Insertion Loss (dB) Multimode MTP/MPO: Low loss ≤0.35, Standard loss ≤0.5 Insertion Loss (dB) Multimode LC: ≤0.3 Return Loss (dB) Single Mode MTP/MPO: ≥60 -
MTP/MPO - LC Fan-out Patch Cord
Insertion Loss (dB) MTP/MPO Single mode: Low loss ≤0.35dB, Standard loss ≤0.7dB Insertion Loss (dB) LC Single mode: ≤0.3dB Insertion Loss (dB) MTP/MPO Multimode: Low loss ≤0.35dB, Standard loss ≤0.5dB Insertion Loss (dB) LC Multimode: ≤0.3dB Return Loss (dB) MTP/MPO Single mode: ≥60dB -
USB 3.0 Active Optical Cable
Protocols Supported: Universal Serial Bus 3.0 Specification Data Rate: 5Gbps BER: <10^-12 Operating Case Temperature: 0 to +70°C Storage Temperature: -20 to +85°C -
HDMI 2.1 Hybrid Active Optical Cable
Support HDMI ver.: HDMI 2.1 Data Rate: 48Gbps(12Gbps per channel) Video Format: 8K@60Hz/4K@120Hz/1080p/1080i/720p format Support features: HDCP/EDID/CEC/DDC/Audio Signal Input & Output Connector: HDMI A-type(Plug) -

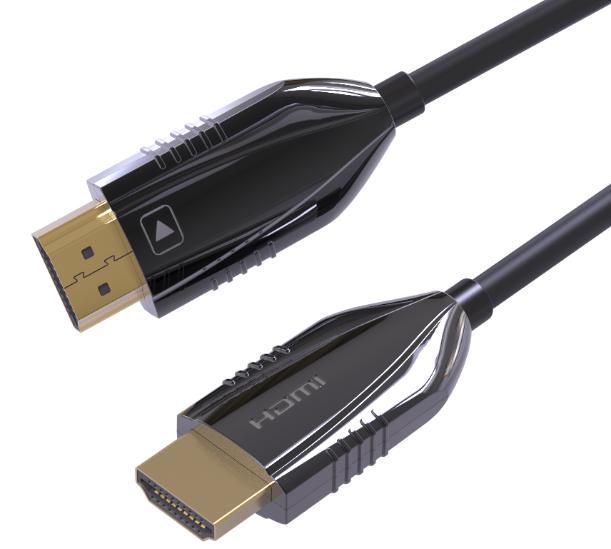

HDMI 2.0 Hybrid Active Optical Cable
Supported HDMI Version: HDMI 2.0 Data Rate: 18Gbps(6Gbps per channel) Video Format: 4K@60/3D/1080p/1080i/720p Supported Features: HDCP/EDID/CEC/DDC/Audio Signal Input & Output Connector: HDMI A-type(Plug) -

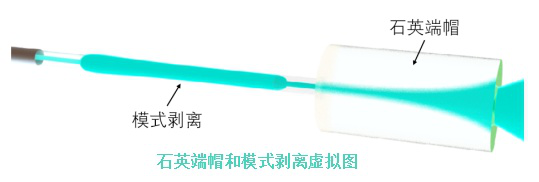

Unknown
Mode Stripping: Not specified Quartz End Cap: Not specified
