COBT2001
COBT2001 is a high-performance COB testing machine designed for optical module testing, offering precise and efficient testing capabilities.
Save to Favorites
Overview

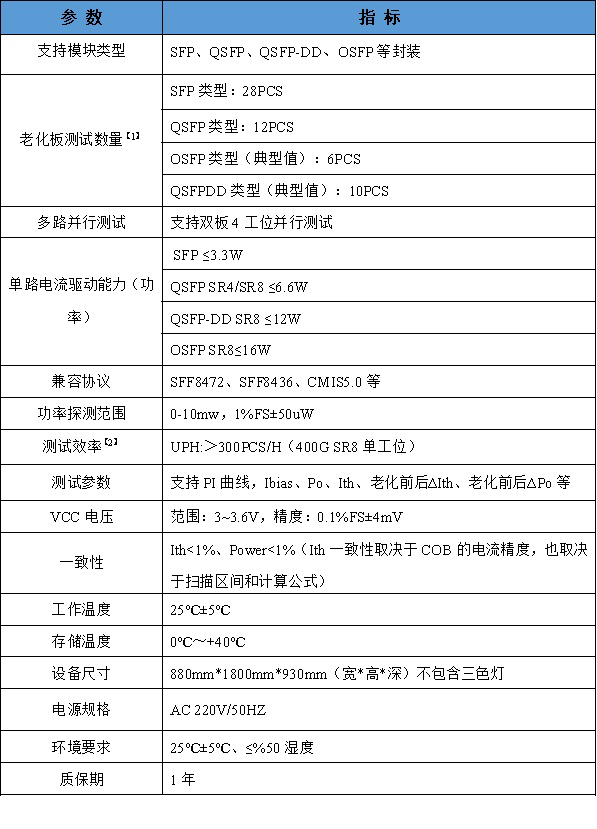

Specifications
| Parameter | Value |
|---|---|
| Supported Module Types | SFP, QSFP, QSFP-DD, OSFP |
| SFP Type | 28PCS |
| Aging Board Test Quantity | QSFP Type: 12PCS, QSFP-DD Type: 10PCS, OSFP Type: 6PCS |
| Multi-channel Parallel Testing | Supports dual-board 4-channel parallel testing |
| SFP Power Consumption | ≤3.3W |
| Single-channel Current Driving Capability (Power) | QSFP SR4/SR8 ≤6W, QSFP-DD SR8 ≤12W, OSFP SR8 ≤16W |
| Compatible Protocols | SFF8472, SFF8436, CMISS0 |
| Power Detection Range | 0-10mW, 1%FS±50μW |
| Testing Efficiency | UPH: >300PCS/H (400G SR8 single unit) |
| Testing Parameters | Supports PI curve, Bias, Po, Ith, aging front ΔIth, aging front ΔPo |
| VCC Voltage | Range: 3-3.6V, Accuracy: 0.1%FS±4mV |
| Consistency | Ith<1%, Power<1% (Ith consistency determines COB current accuracy) |
| Operating Temperature | 25°C±5°C |
| Device Dimensions | 880mm×1800mm×930mm (W×H×D) excluding tri-color light |
| Power Specifications | AC 220V/50Hz |
| Environmental Requirements | 25°C±5°C, ≤50% humidity |
| Warranty Period | 1 year |
