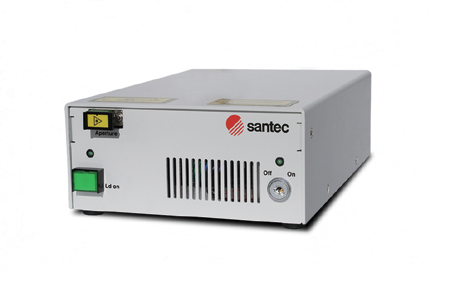

HSL-20
The HSL-20 is a MEMS-based swept laser designed for high-speed operation with long coherence length, offering a compact solution for SS-OCT imaging. It supports scan rates up to 100kHz and can be configured with start trigger and k-clock based on system requirements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Main Scan Rate (kHz) | 50 or 100±0.1 |
| Maximum Optical Output Power (mW) | ≤40 |
| Center Wavelength (nm) | 1280-1340 |
| Scan Range (nm) | ≥105 |
| Coherence Length (mm) | ≥16 |
| Duty Cycle (%) | ≥45 |
| Size (W×D×H) | 150×226×72.5 |
Applications
Key Features
Datasheet
Supplier Information
