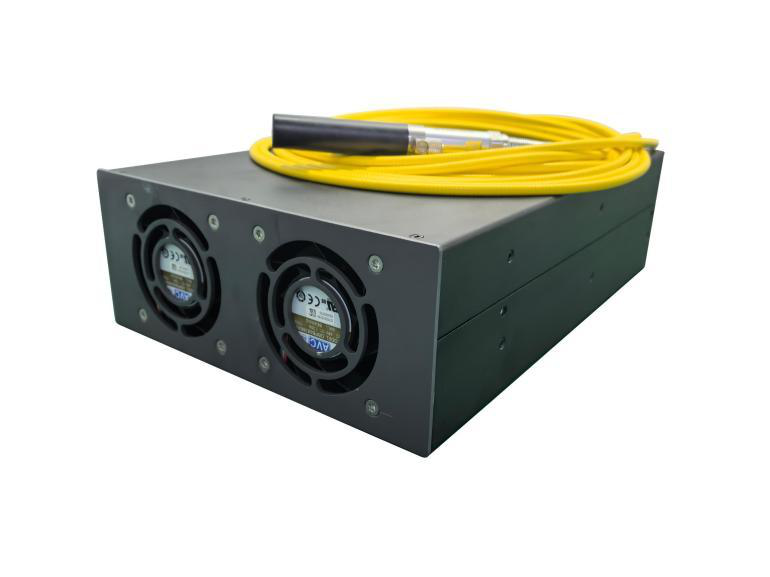

BFL-ACW05S Storm Series Fiber Laser
The BWT Storm Series fiber laser BFL-ACW05S adopts a brand-new heat dissipation structure and powerful fans, delivering superior cooling performance and more stable laser operation. Its compact and minimalist enclosure design provides greater freedom, rationality, and high integration for laser equipment design. This air-cooled laser offers excellent beam quality, allowing the laser beam to be focused close to the diffraction limit for precision processing. Both continuous-wave (CW) and modulated-pulse operation modes are selectable, greatly reducing the heat-affected zone during processing. With reliable performance and a modular all-fiber design, all optoelectronic components are sealed inside a rugged enclosure. The laser can process various steels, aluminum-based and nickel-based alloys, titanium alloys, and alumina ceramics, and it is widely used in precision welding, precision cutting, handheld welding, and sheet metal processing. BWT also provides professional laser application engineers and high-quality laser system solutions.
Save to Favorites
Overview

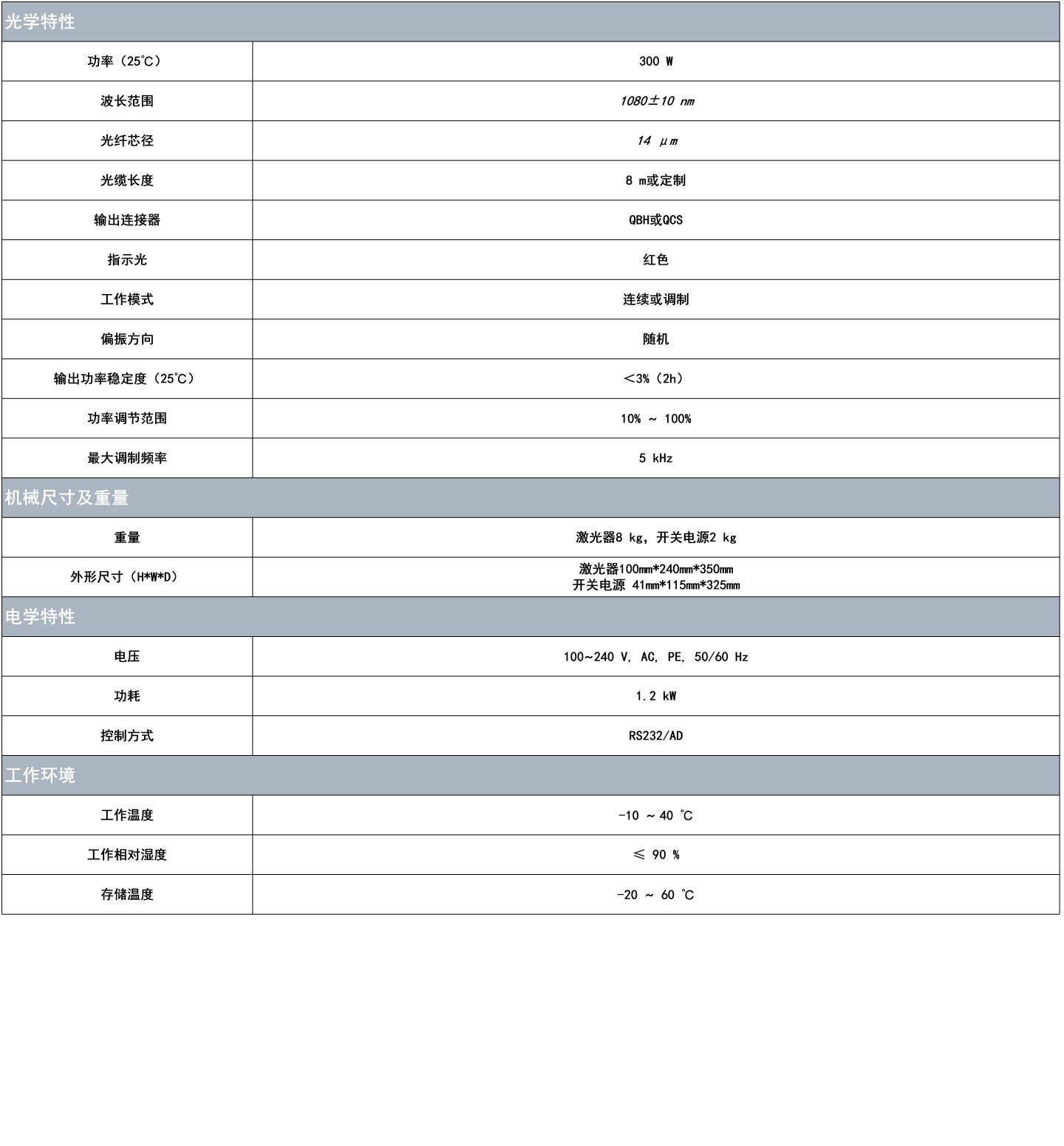

Specifications
| Parameter | Value |
|---|---|
| Fiber Core Diameter | 14μm |
| Fiber Cable Length | 8 m or custom length |
| Output Connector | QBH or QCS |
| Indicator Light | Red |
| Operation Mode | Continuous or modulated |
| Polarization Direction | Random |
| Maximum Modulation Frequency | 5kHz |
| Laser Weight | 8kg |
| Switching Power Supply Weight | 2kg |

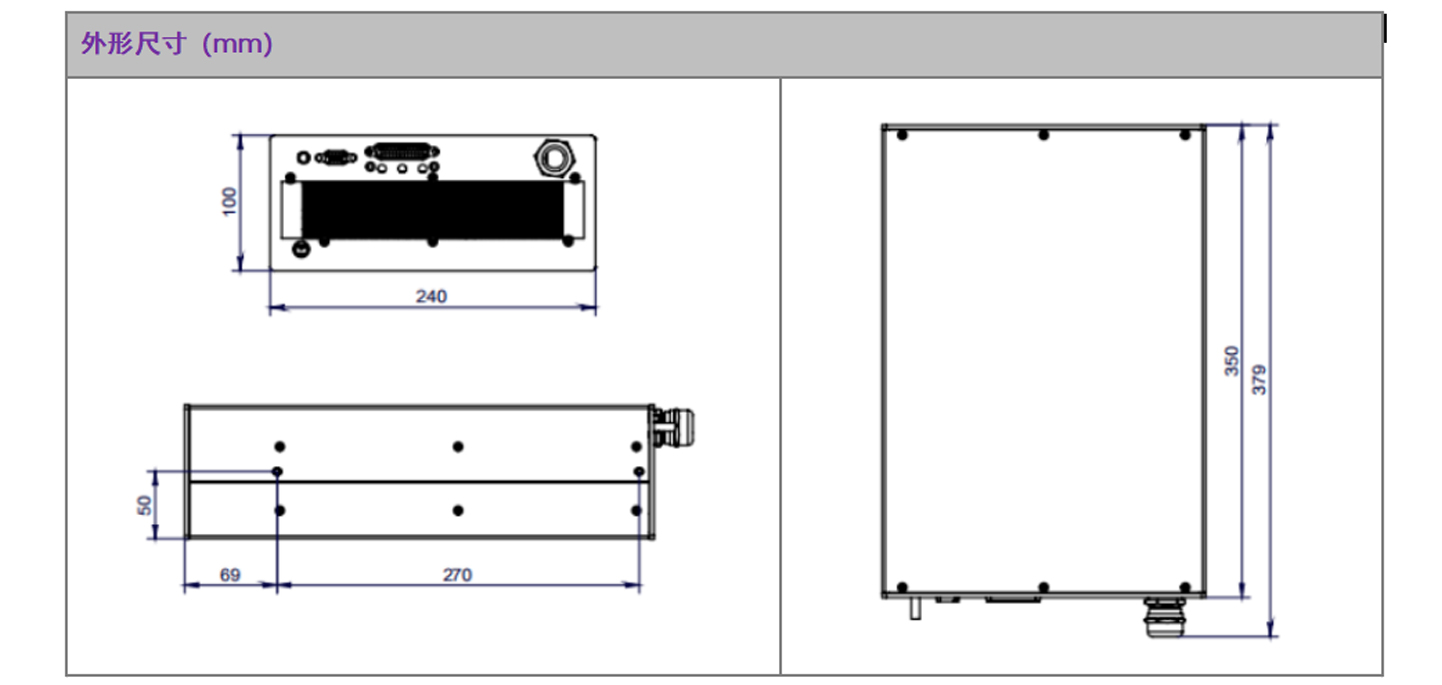

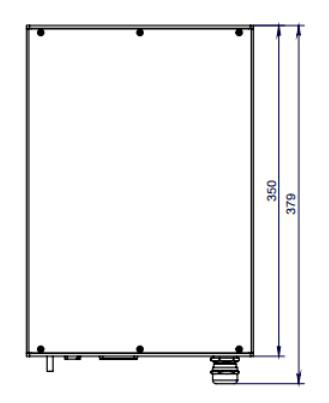

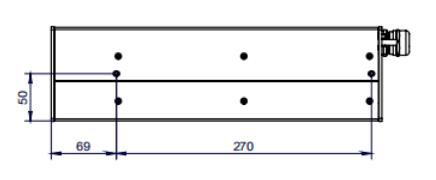

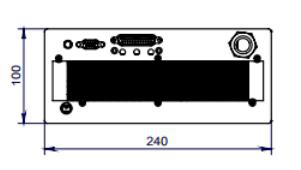

| Laser Dimensions (H*W*D) | 100mm*240mm*350mm |
| Switching Power Supply Dimensions (H*W*D) | 41mm*115mm*325mm |
| Power Consumption | 1.2kW |
| Operating Temperature | -10～40℃ |
| Storage Temperature | -20～60℃ |
