High Power Narrow Pulse Width Infrared Femtosecond Laser (BFL-1030-10LE)

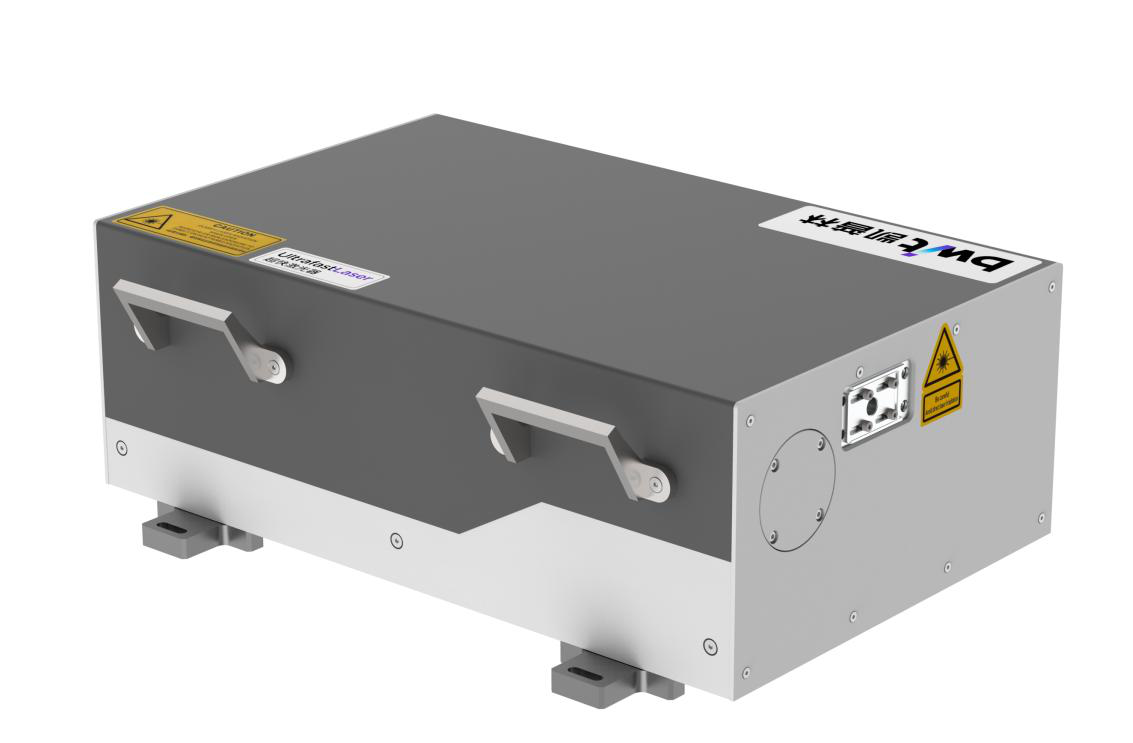

The BFL-1030-10LE is a high-power, narrow pulse width infrared femtosecond laser developed by Tianjin BWT Laser Technology Co., Ltd. (BWT), a national high-tech enterprise specializing in femtosecond, picosecond and nanosecond lasers. It delivers 10W average output power at a center wavelength of 1030±2nm with a 50MHz repetition rate (frequency adjustable), an adjustable pulse width of 200fs-2ps, and a maximum single pulse energy of 200nJ. Featuring TEM00 beam quality (M²<1.3), >90% beam circularity, vertical polarization (100:1), excellent power and pulse energy stability, intelligent real-time monitoring and a simple control interface, the laser is packaged in a compact air-cooled housing (L461.5 x W352.7 x H169.6mm) supporting 110V~260V AC power. It is a low-cost, maintenance-free ultrafast laser solution ideal for precision processing and scientific research.
Save to Favorites
Overview

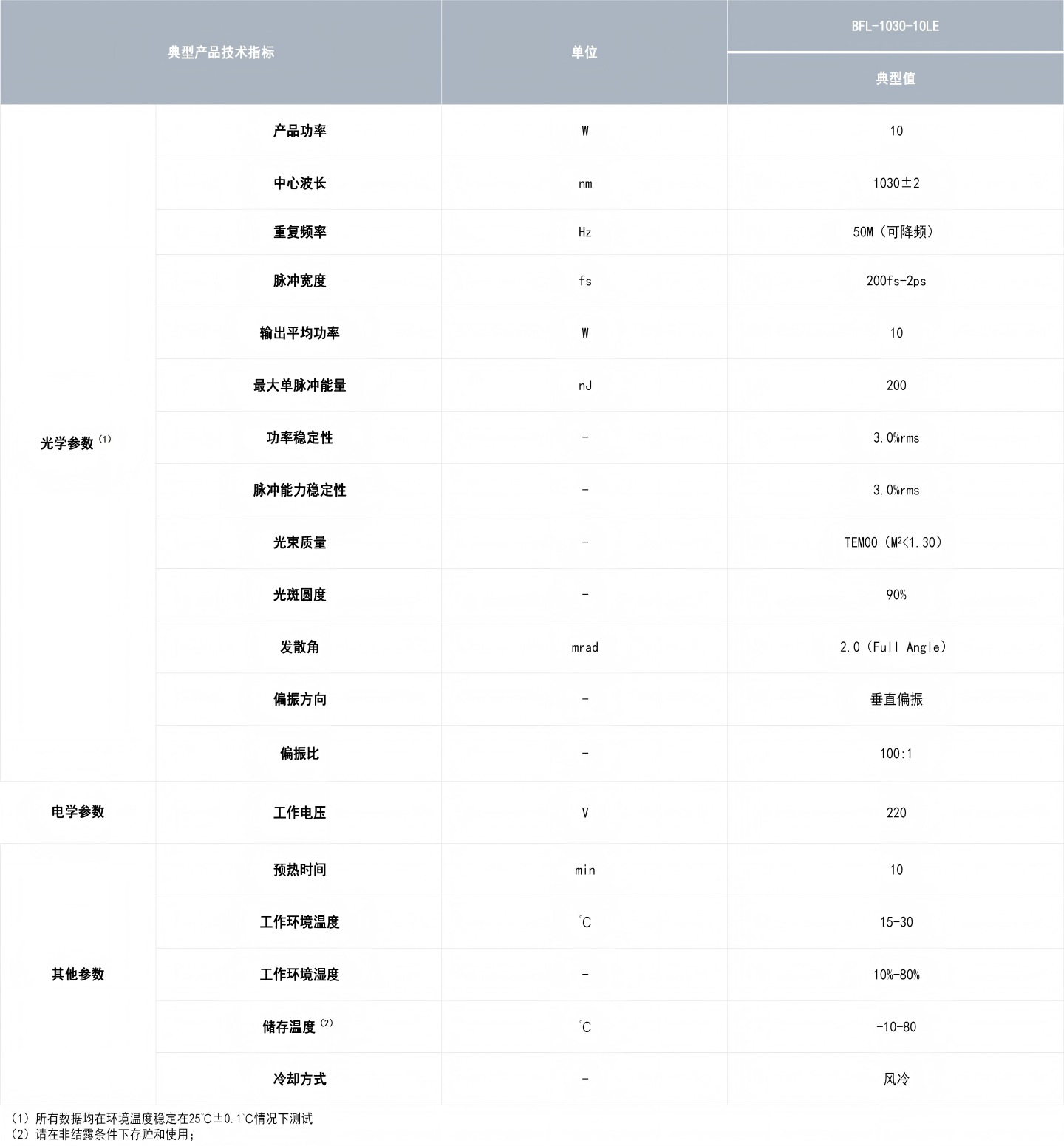

Specifications
| Parameter | Value |
|---|---|
| Product Power | 10W |
| Center Wavelength | 1030±2nm |
| Repetition Frequency | 50MHz (Adjustable) |
| Pulse Width | 200fs-2ps |
| Output Average Power | 10W |
| Maximum Single Pulse Energy | 200nJ |
| Maximum Pulse Energy | >200nJ@50MHz |
| Power Stability | 2.0%rms |
| Pulse Energy Stability | 3.0%rms |
| Beam Quality | TEM00 (M²<1.30) |
| Beam Circularity | 90% |
| Divergence Angle | 2.0mrad (Full Angle) |
| Polarization Direction | Vertical Polarization |
| Polarization Ratio | 100:1 |
| Operating Voltage | 220V |
| Power Supply | 110V~260V AC |
| Warm-up Time | 10min |
| Operating Ambient Temperature | 15~30℃ |
| Operating Ambient Humidity | 10%-80% |
| Storage Temperature | -10~80℃ |
| Cooling Method | Air Cooling |

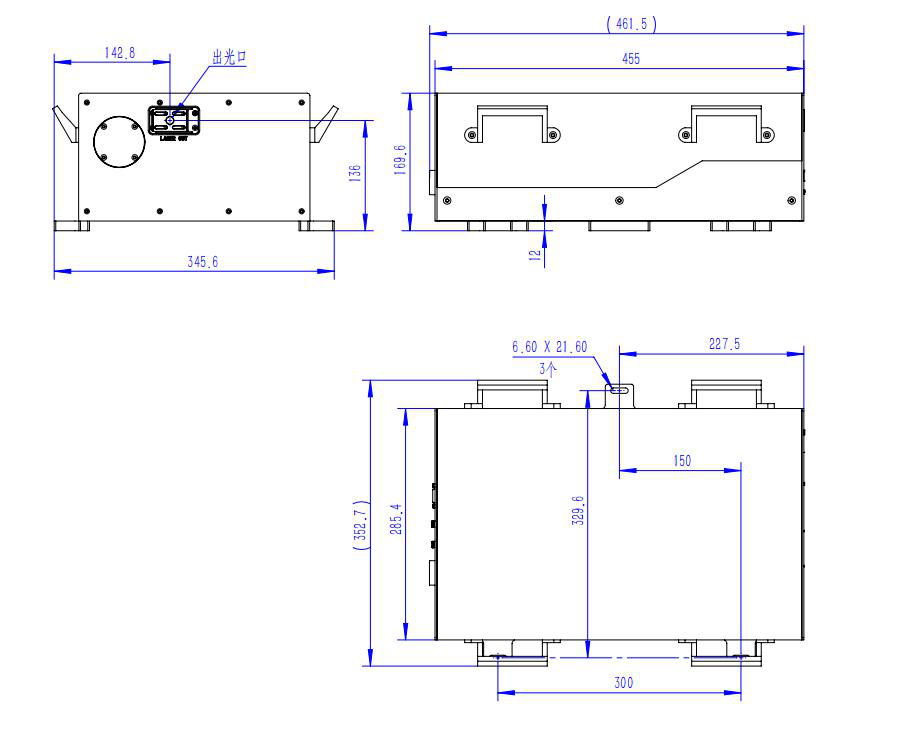

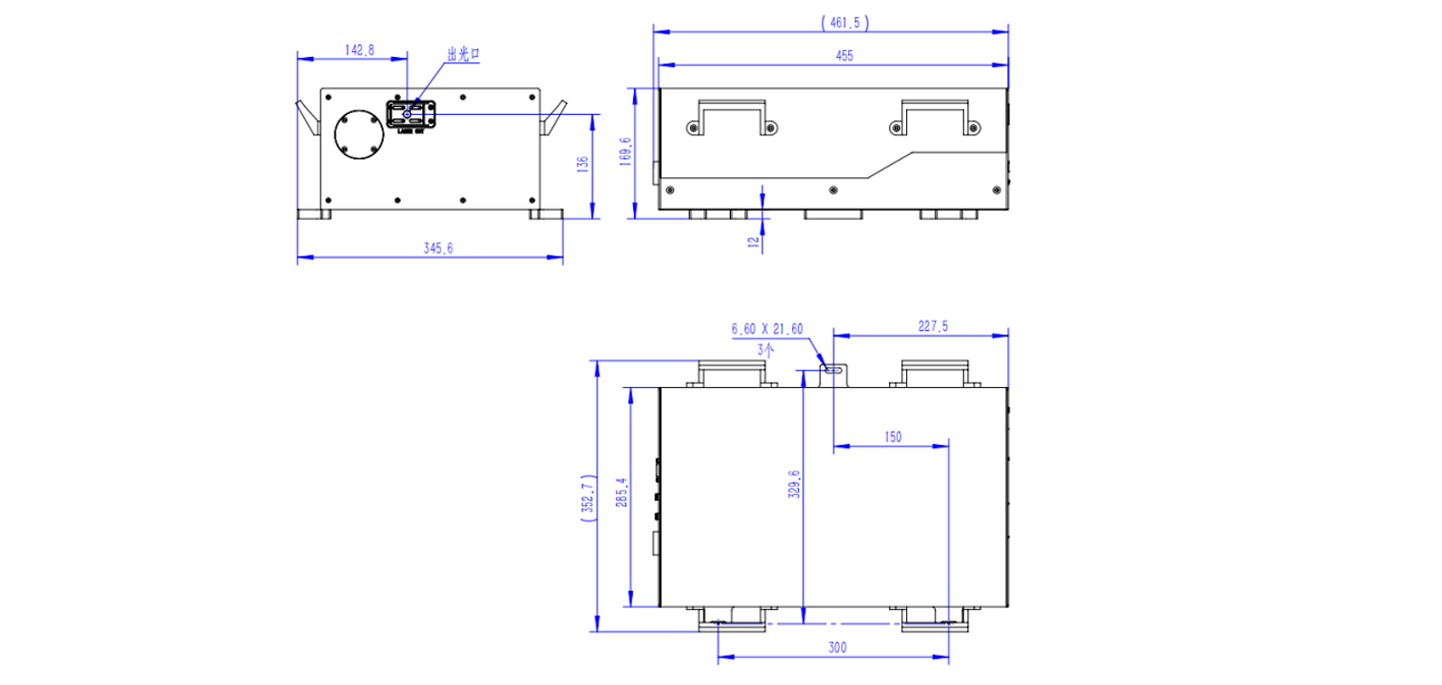

| Dimensions | L461.5 x W352.7 x H169.6mm |
