BFL-ACW20S-2

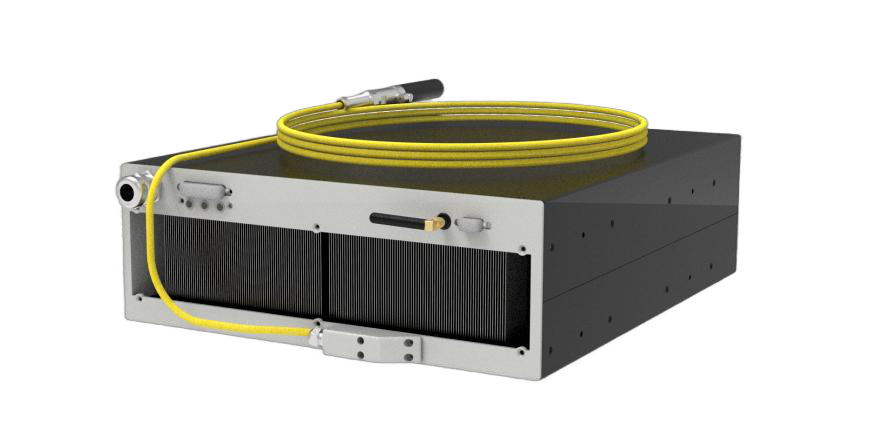

The BFL-ACW20S-2 is a 1500W air-cooled fiber laser from BWT's Storm Series. It adopts a brand-new heat dissipation structure and powerful fans, delivering superior cooling performance and more stable laser operation. Its compact design offers greater freedom, rationality, and integration flexibility for laser equipment design. This air-cooled laser features excellent beam quality, allowing the laser beam to be focused close to the diffraction limit for precision processing. Both continuous wave (CW) and modulated pulse working modes are selectable, greatly reducing the heat-affected zone during processing. With reliable performance and a modular all-fiber design, all optoelectronic components are sealed inside a rugged enclosure. It can process various steels, aluminum and nickel-based alloys, titanium alloys, and alumina ceramics.
Save to Favorites
Overview

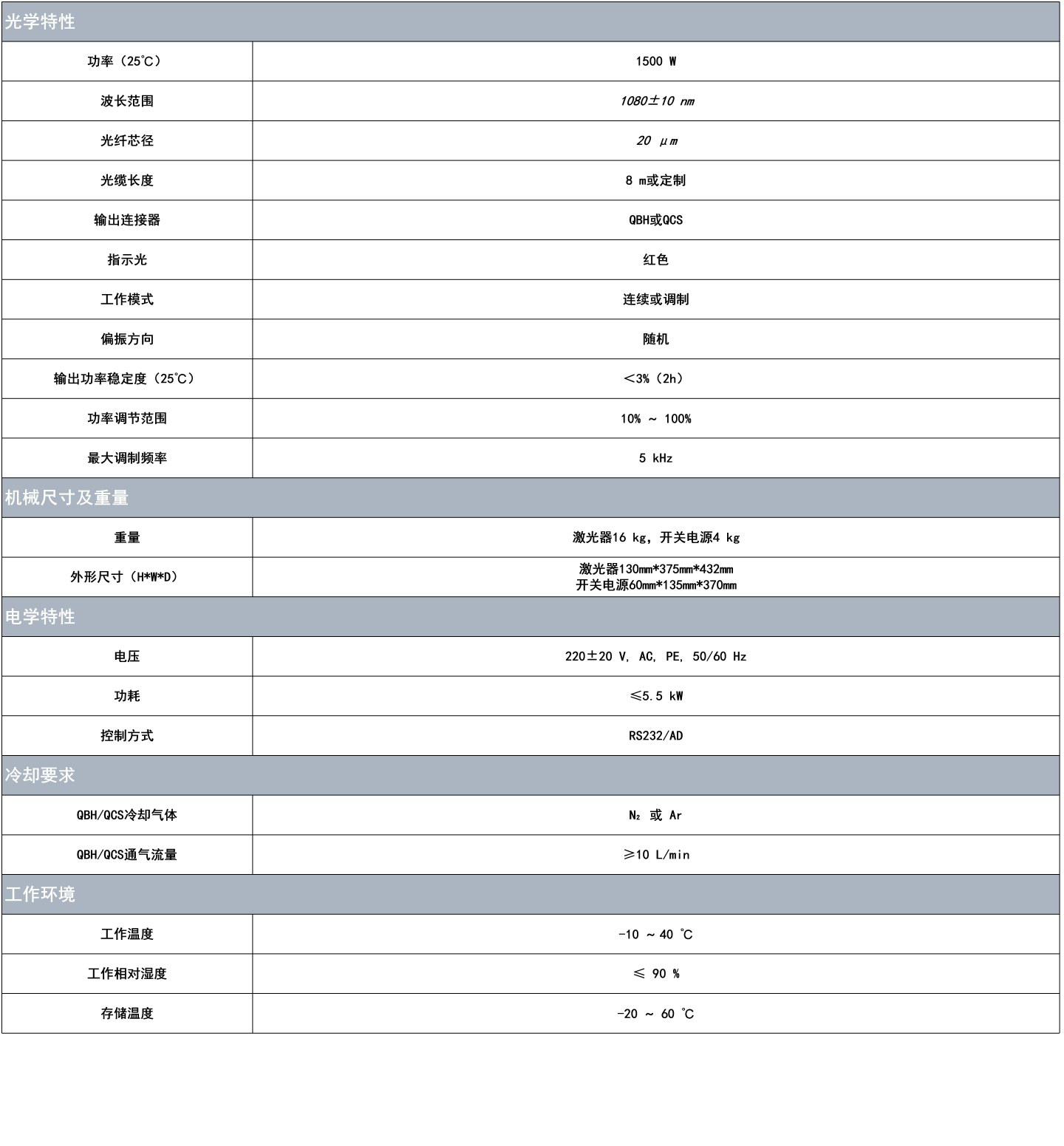

Specifications
| Parameter | Value |
|---|---|
| Power (25°C) | 1500W |
| Fiber Core Diameter | 20μm |
| Output Connector | QBH or QCS |
| Indicator Light | Red |
| Operating Mode | CW or Modulated |
| Polarization Direction | Random |
| Output Power Stability (25°C) | <3%(2h) |
| Power Adjustment Range | 10%~100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | Laser 16kg, switching power supply 4kg |
| Voltage | 220±20V, AC, PE, 50/60Hz |
| Power Consumption | ≤5.5kW |
| QBH/QCS Cooling Gas | N₂ or Ar |
| QBH/QCS Gas Flow Rate | ≥10L/min |
| Operating Temperature | -10~40°C |
