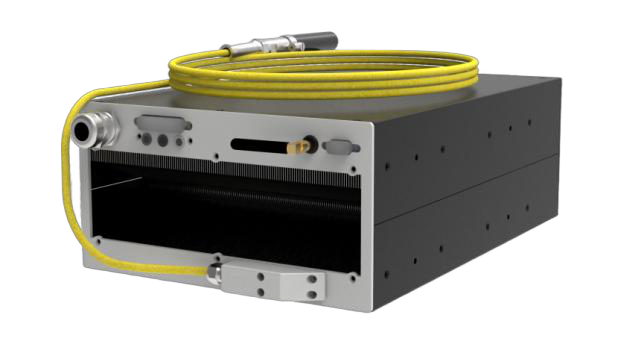

BFL-ACW500-1 Storm Series Fiber Laser
The BWT Storm series fiber laser adopts a brand-new heat dissipation structure and powerful fans, delivering superior cooling performance and more stable laser operation. Its simple and compact appearance design provides greater freedom for laser equipment design, with higher rationality and integration. This air-cooled laser features excellent beam quality: the laser beam can be focused close to the diffraction limit to achieve precision processing. Two operating modes (continuous wave and modulated pulse) are selectable, greatly reducing the heat-affected zone during processing. With reliable performance and a modular all-fiber design, all optoelectronic components are sealed inside a rugged housing. It is widely used in precision welding, handheld welding and sheet metal processing, and can process various steels, aluminum-based and nickel-based alloys, titanium alloys, alumina ceramics, etc.
Save to Favorites
Overview

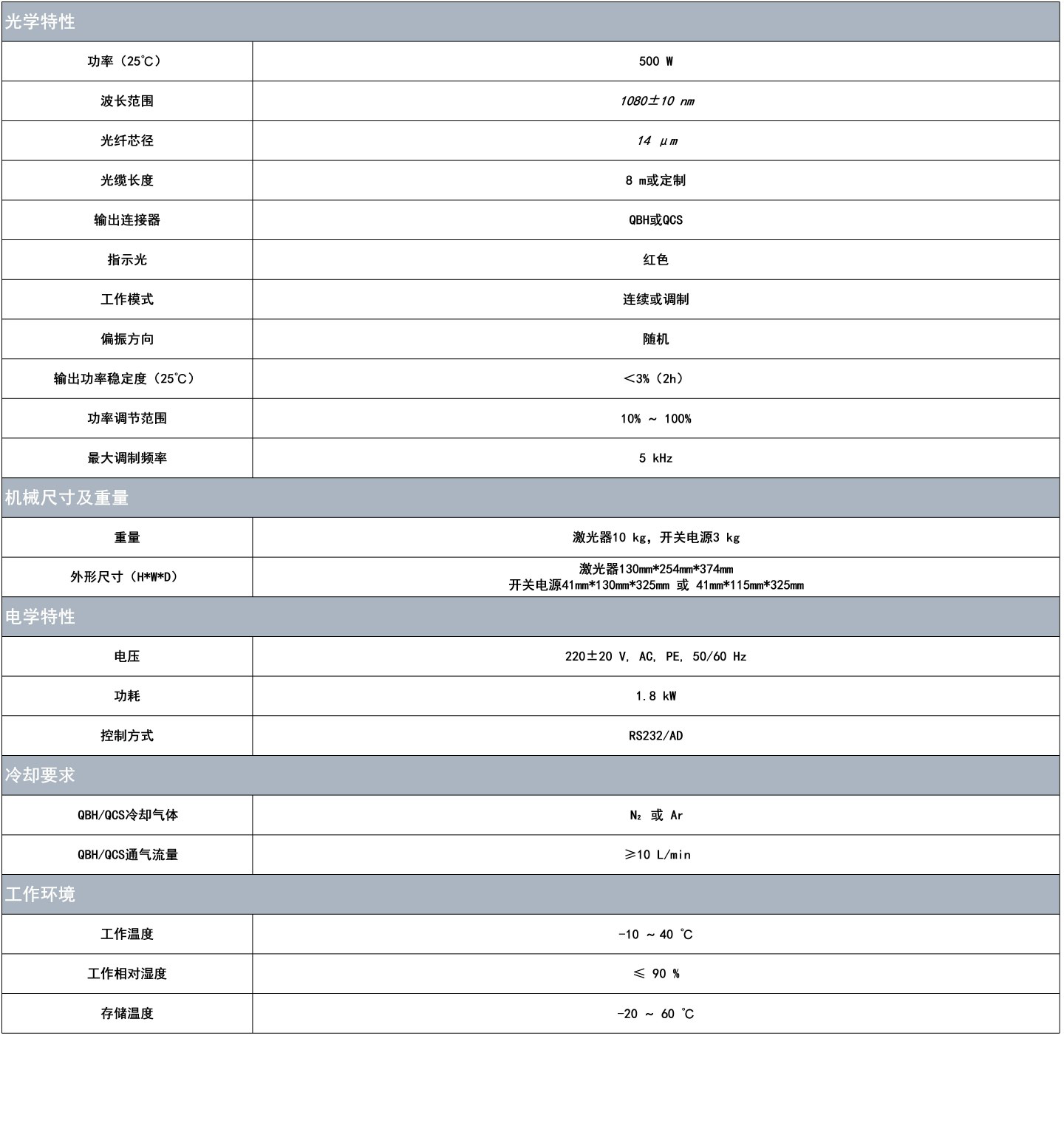

Specifications
| Parameter | Value |
|---|---|
| Fiber Core Diameter | 14μm |
| Output Connector | QBH or QCS |
| Indicator Light | Red |
| Operation Mode | CW or Modulated |
| Polarization Direction | Random |
| Power Adjustment Range | 10%~100% |
| Maximum Modulation Frequency | 5kHz |
| Weight - Laser | 10kg |
| Weight - Switching Power Supply | 3kg |

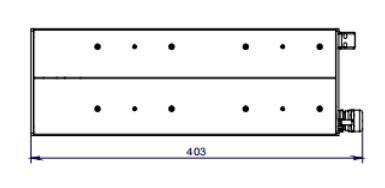

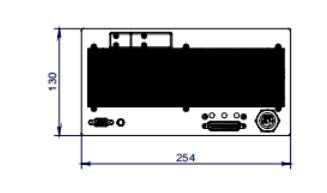

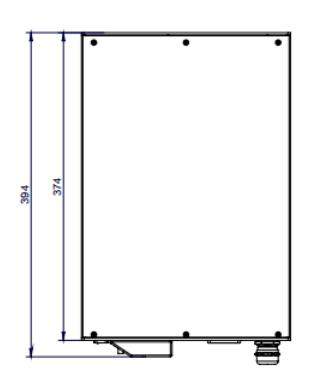

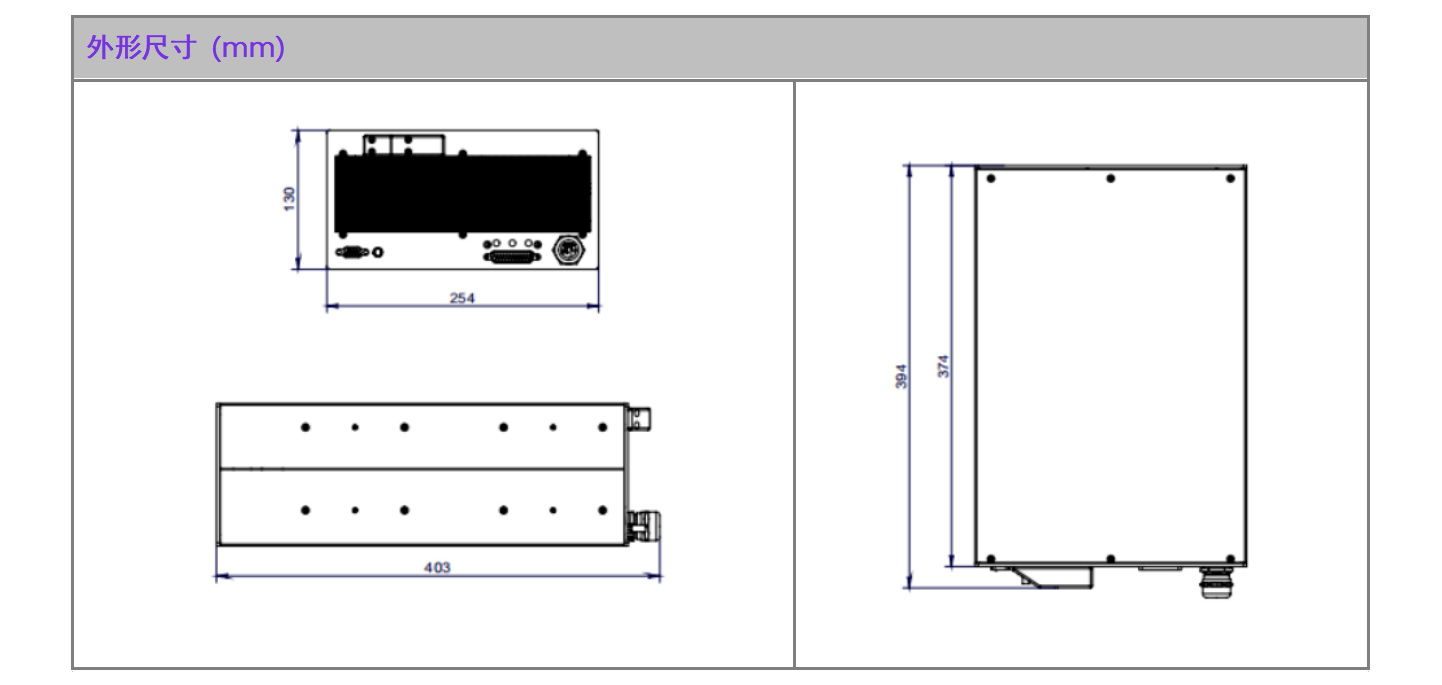

| Dimensions (H×W×D) - Laser | 130mm×254mm×374mm |
| Dimensions (H×W×D) - Switching Power Supply | 41mm×130mm×325mm or 41mm×115mm×325mm |
| Voltage | 220±20V, AC, PE, 50/60Hz |
| Power Consumption | 1.8kW |
| Control Mode | RS232/AD |
| QBH/QCS Cooling Gas | N₂ or Ar |
| QBH/QCS Gas Flow Rate | ≥10L/min |
| Storage Temperature | -20~60℃ |
