BFL-ACW10S-1 Storm Series Fiber Laser

BFL-ACW10S-1 Storm Series Fiber Laser

Supplier
Bwt-bj
Part Number
BFL-ACW10S-1 Storm Series Fiber Laser
Category
Laser Modules & Systems
Origin
China

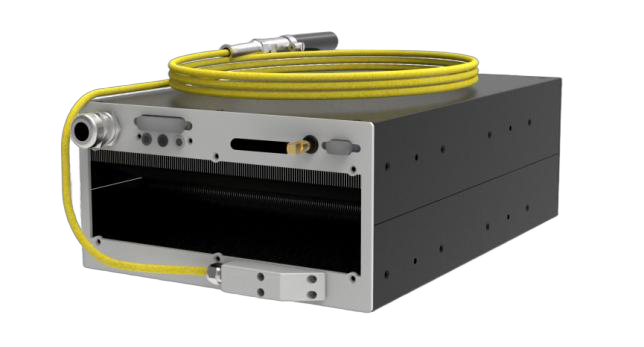

The BWT Storm series fiber laser adopts a brand-new heat dissipation structure and powerful fans, delivering superior cooling performance and more stable laser operation. Its compact appearance design provides greater freedom for laser equipment integration, with enhanced rationality and high integration. This air-cooled laser features excellent beam quality, allowing the laser beam to be focused close to the diffraction limit for precision processing. It offers both continuous-wave (CW) and modulated pulse working modes, greatly reducing the heat-affected zone during processing. With reliable performance and a modular all-fiber design, all optoelectronic components are sealed inside a rugged enclosure. It can process various materials including carbon steel, aluminum-based and nickel-based alloys, titanium alloys, and alumina ceramics.

Specification Snapshot
Fiber Core Diameter
14μm

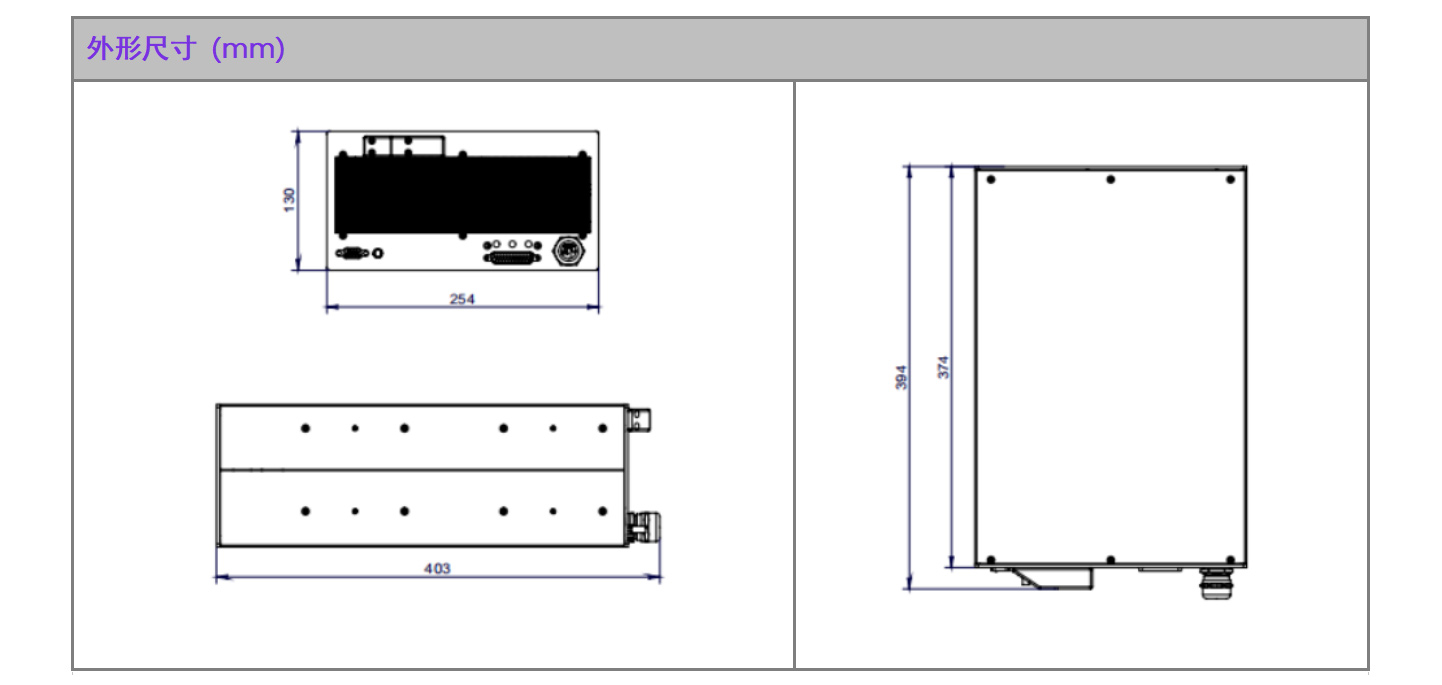

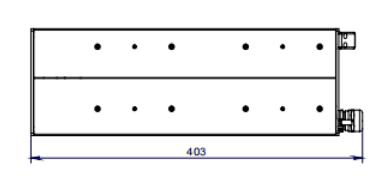

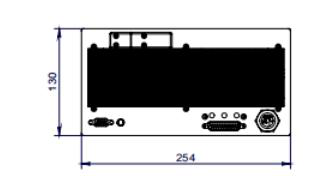

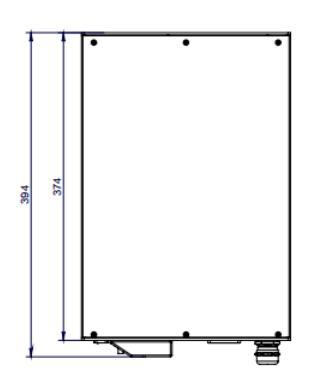

Dimensions (H*W*D)
Laser: 130 mm × 254 mm × 374 mm; switching power supply: 41 mm × 130 mm × 325 mm or 41 mm × 115 mm × 325 mm
Voltage
220±20V, AC, PE, 50/60Hz
Power Consumption
2.7kW
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The BWT Storm series fiber laser adopts a brand-new heat dissipation structure and powerful fans, delivering superior cooling performance and more stable laser operation. Its compact appearance design provides greater freedom for laser equipment integration, with enhanced rationality and high integration. This air-cooled laser features excellent beam quality, allowing the laser beam to be focused close to the diffraction limit for precision processing. It offers both continuous-wave (CW) and modulated pulse working modes, greatly reducing the heat-affected zone during processing. With reliable performance and a modular all-fiber design, all optoelectronic components are sealed inside a rugged enclosure. It can process various materials including carbon steel, aluminum-based and nickel-based alloys, titanium alloys, and alumina ceramics.

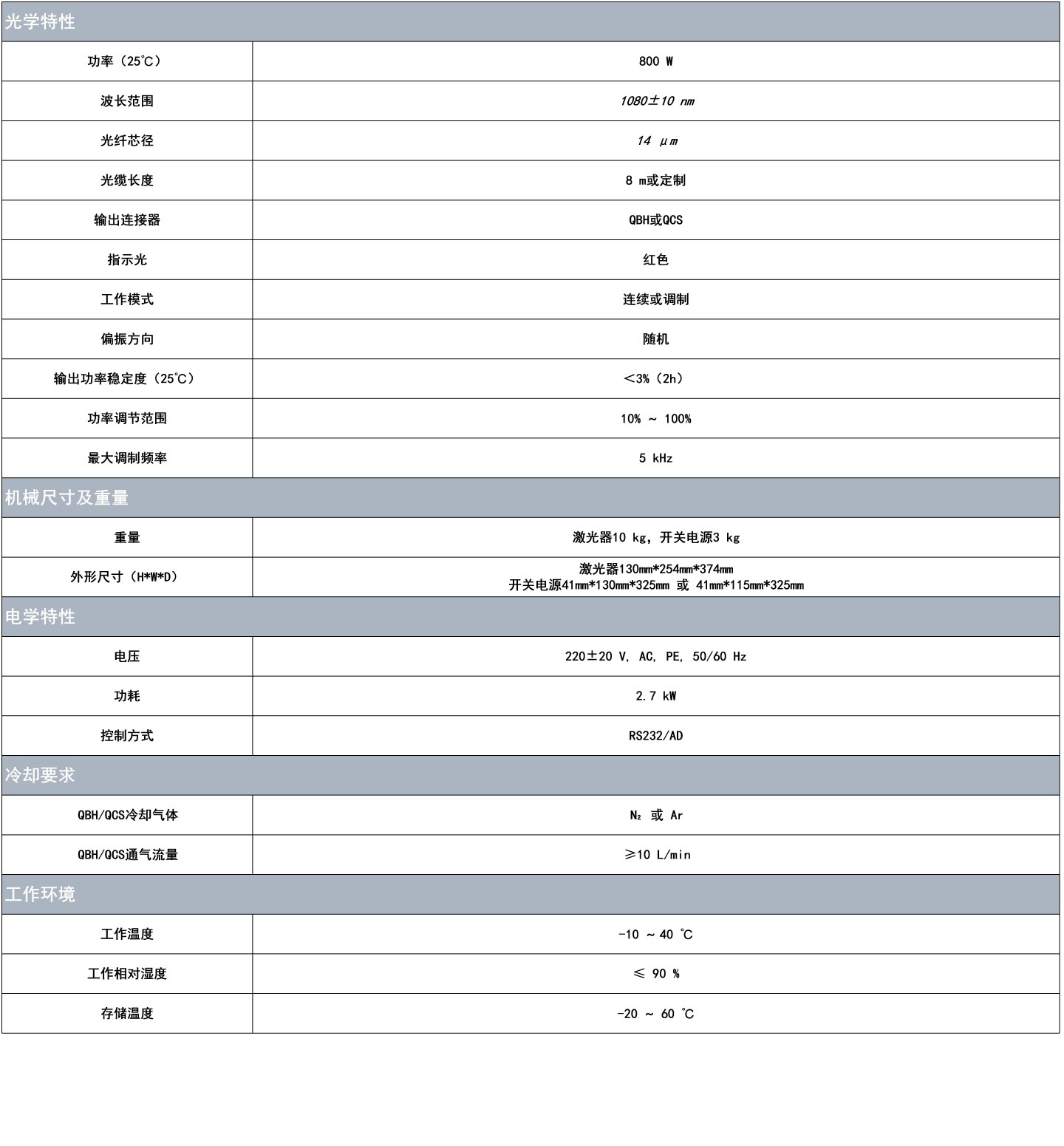

Specifications

ParameterValue
Fiber Core Diameter14μm
Fiber Cable Length8 m or custom length
Output ConnectorQBH or QCS
Indicator LightRed
Operation ModeContinuous or modulated
Polarization DirectionRandom
Maximum Modulation Frequency5kHz
WeightLaser: 10 kg; switching power supply: 3 kg
Voltage220±20V, AC, PE, 50/60Hz
Power Consumption2.7kW
Control ModeRS232/AD
QBH/QCS Cooling GasN₂ or Ar
QBH/QCS Gas Flow Rate≥10L/min
Operating Temperature-10~40℃
Storage Temperature-20~60℃

Applications

1. Precision welding 2. Handheld welding 3. Sheet metal processing

Key Features

1. Low cost and maintenance-free 2. Excellent power stability (<3% over 2 hours) 3. Outstanding system stability with new heat dissipation structure and powerful fans 4. Simple control interface (RS232/AD) 5. Near-diffraction-limited beam quality for precision processing 6. CW and modulated pulse modes selectable, reducing heat-affected zone 7. Modular all-fiber design with all optoelectronic components sealed in a rugged enclosure 8. Compact air-cooled design for high equipment integration
