TS3000-HP

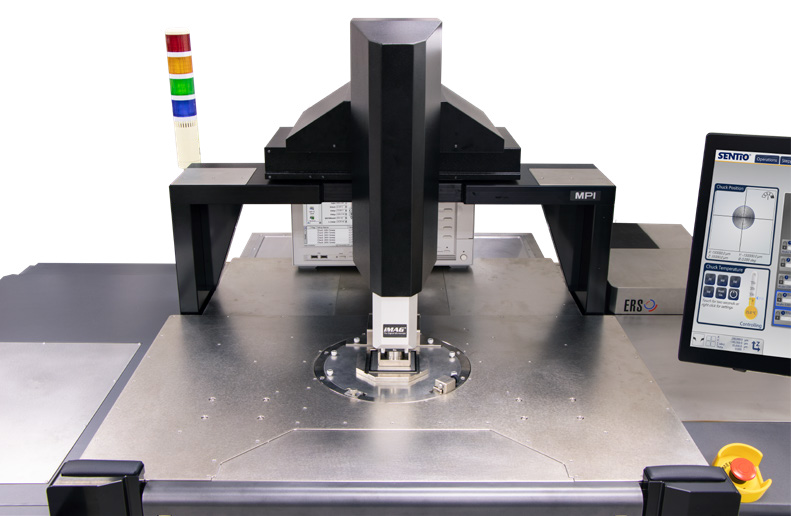

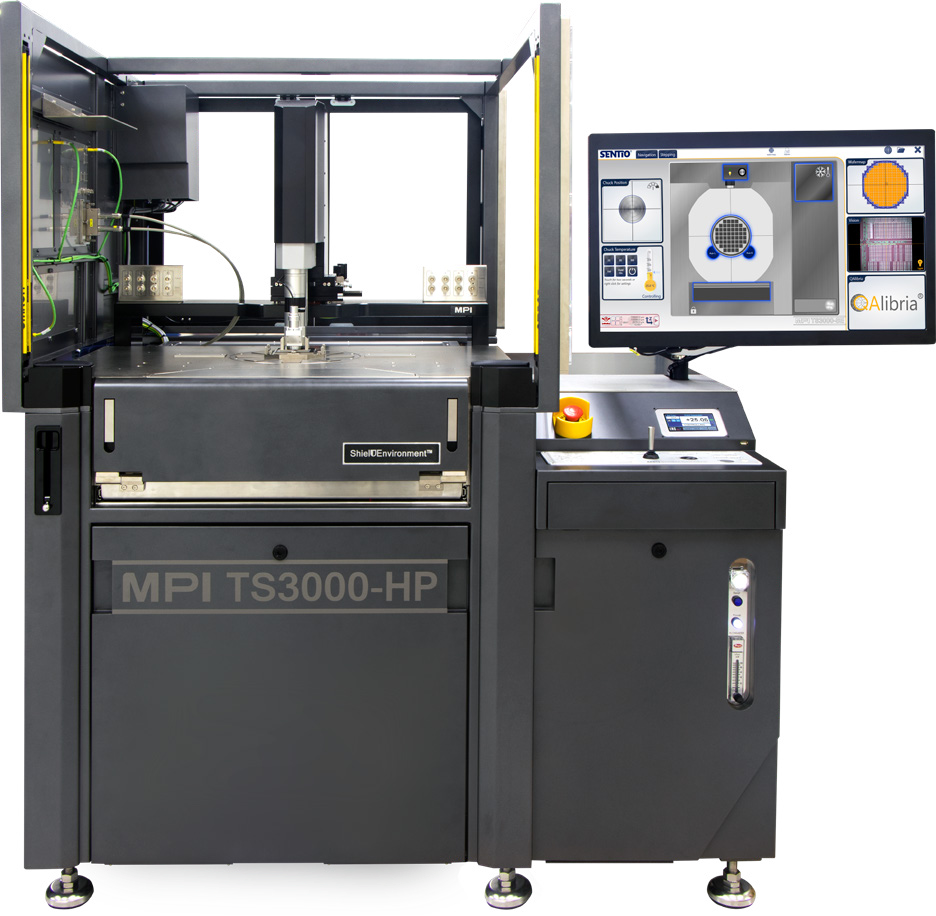

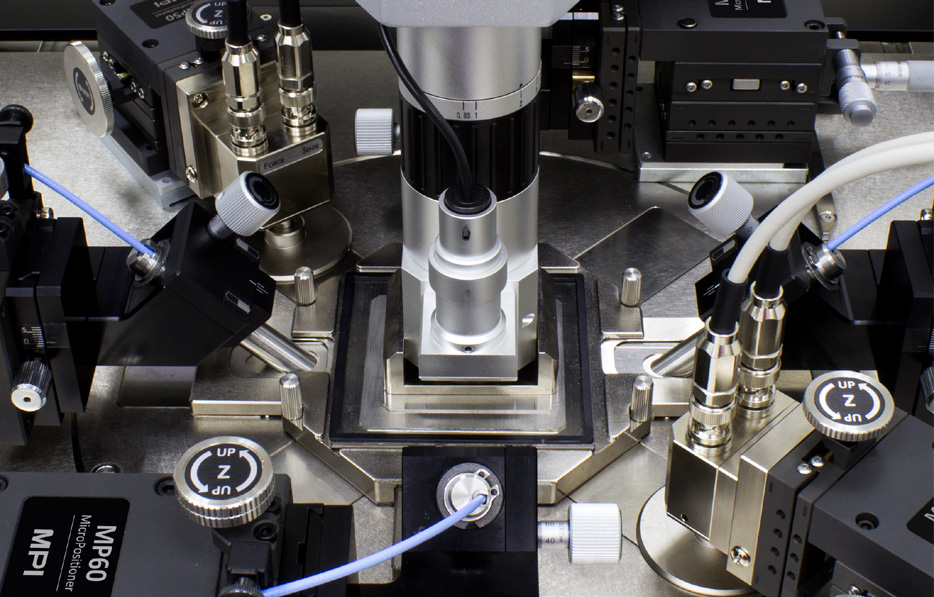

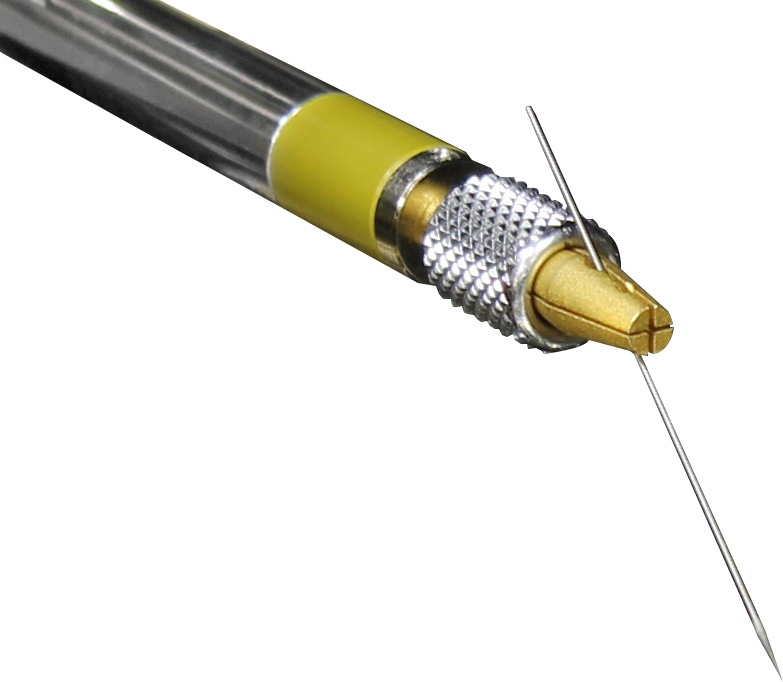

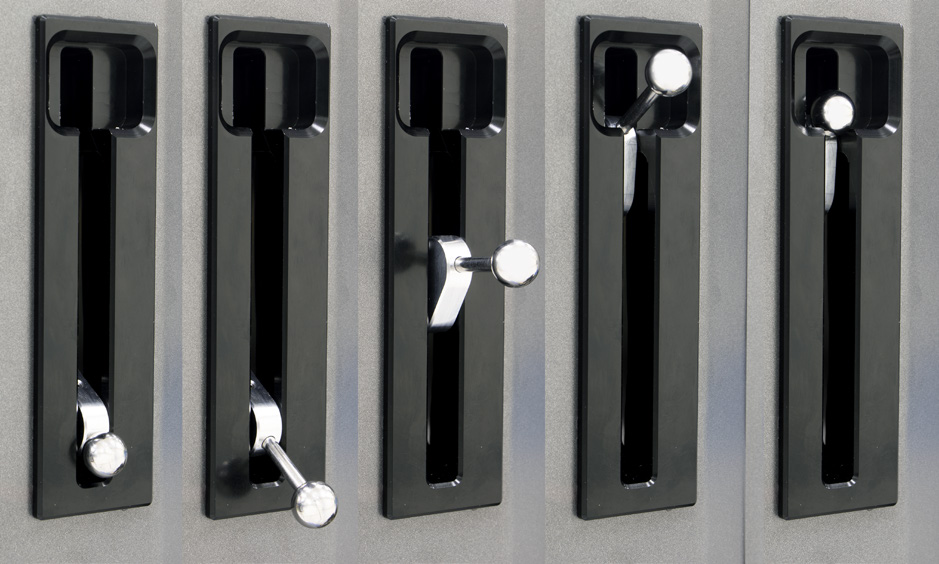

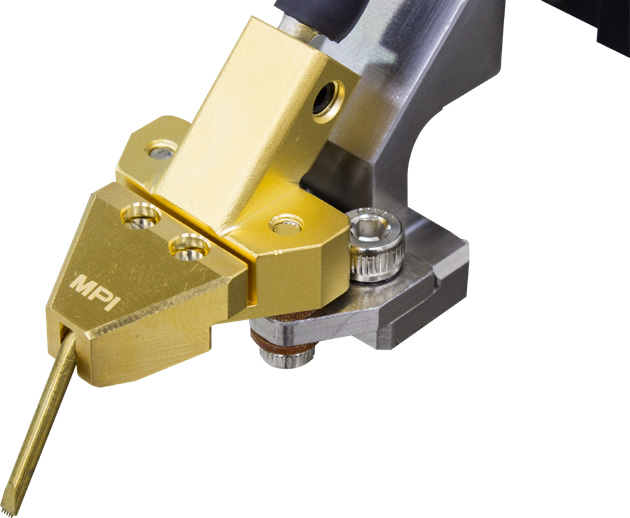

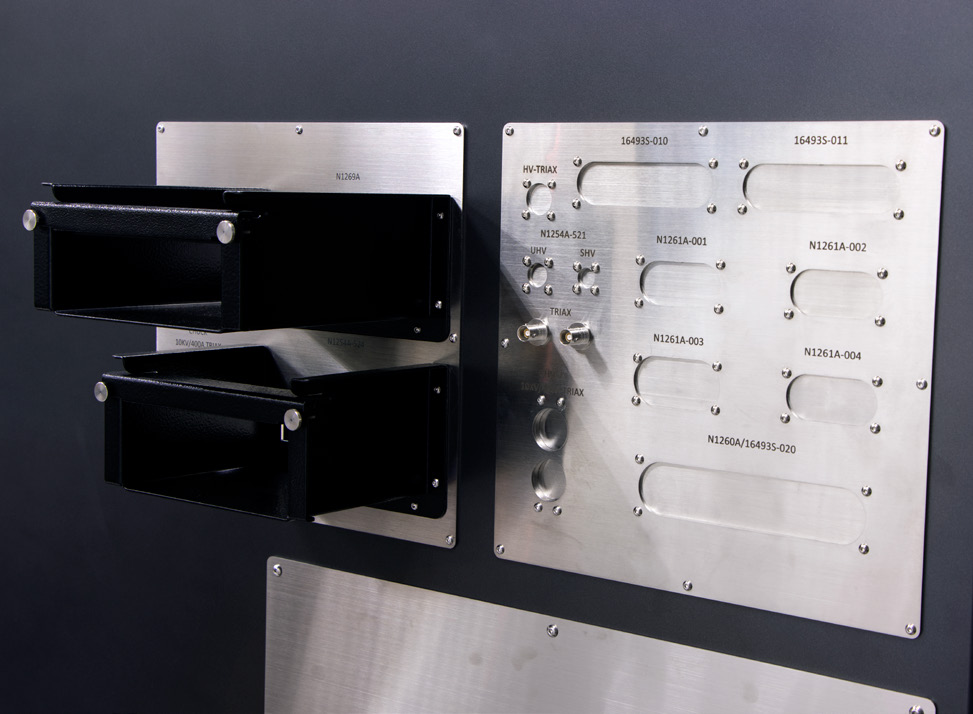

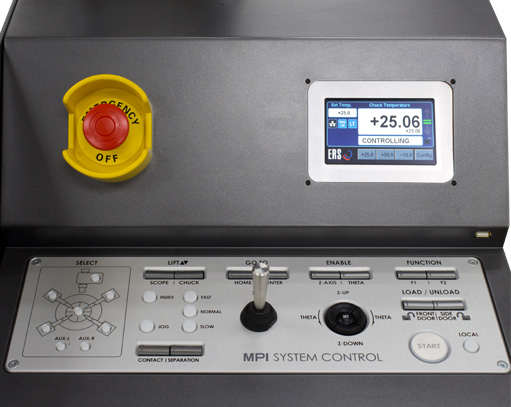

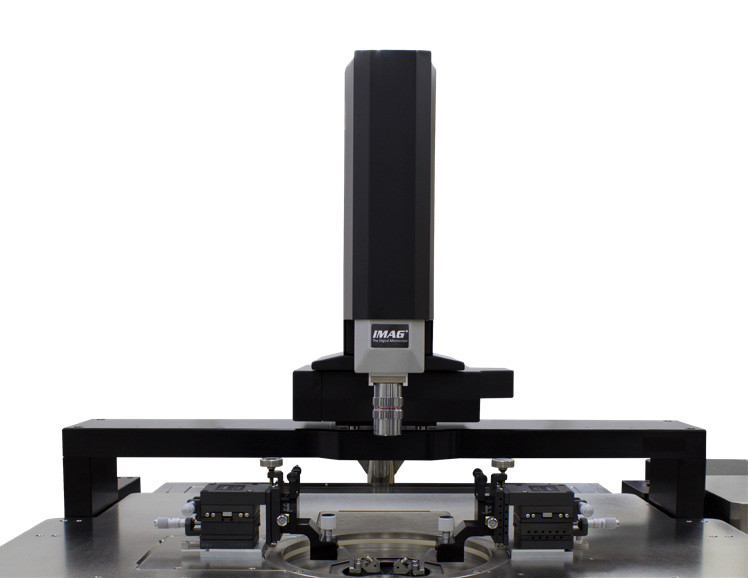

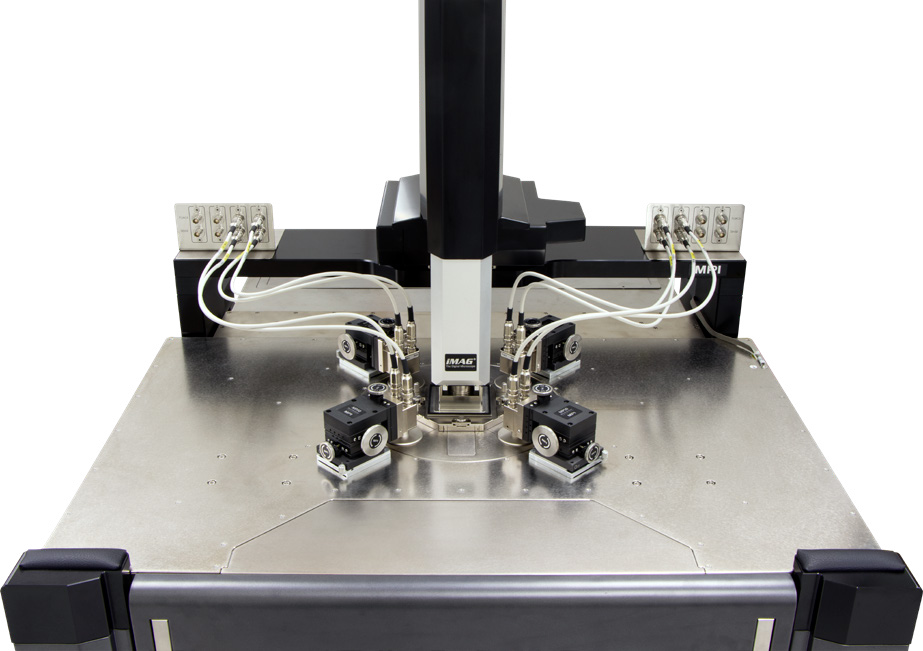

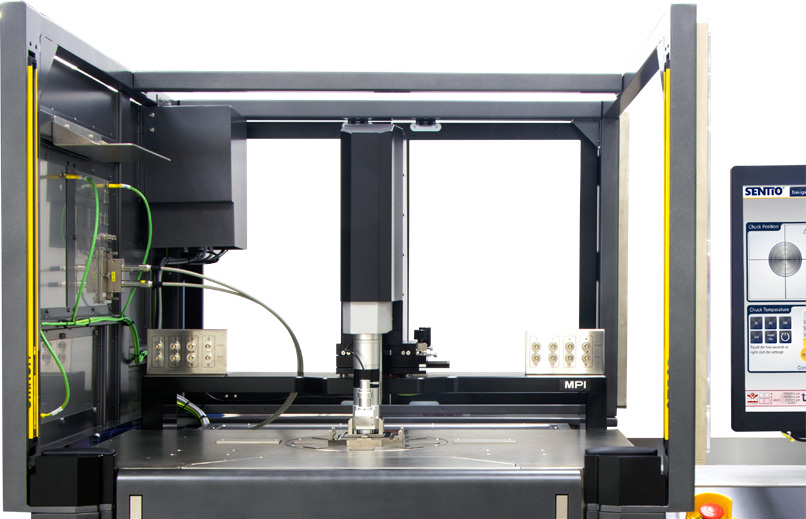

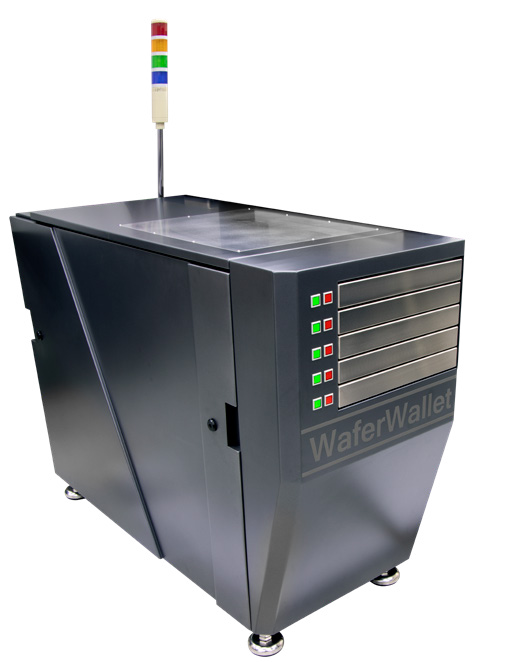

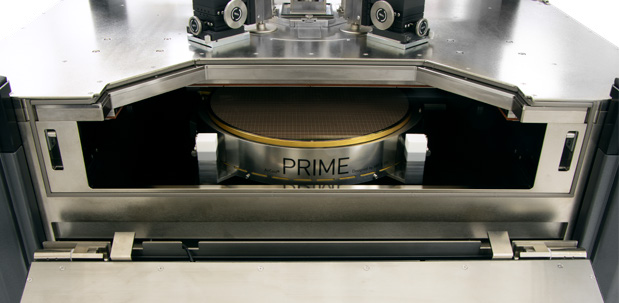

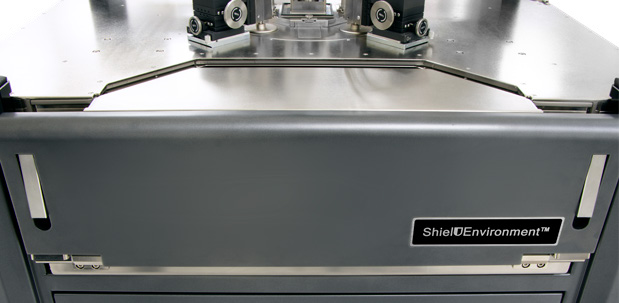

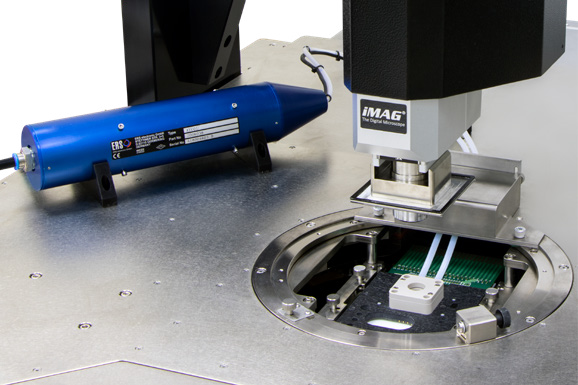

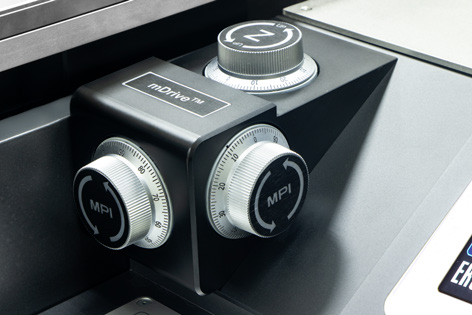

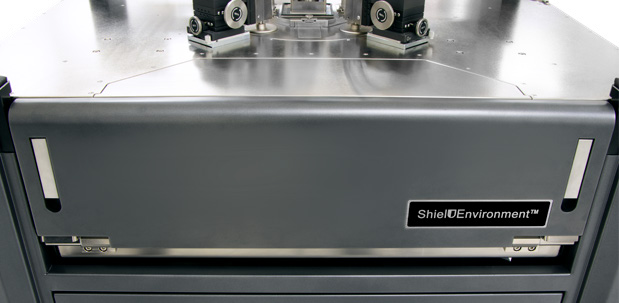

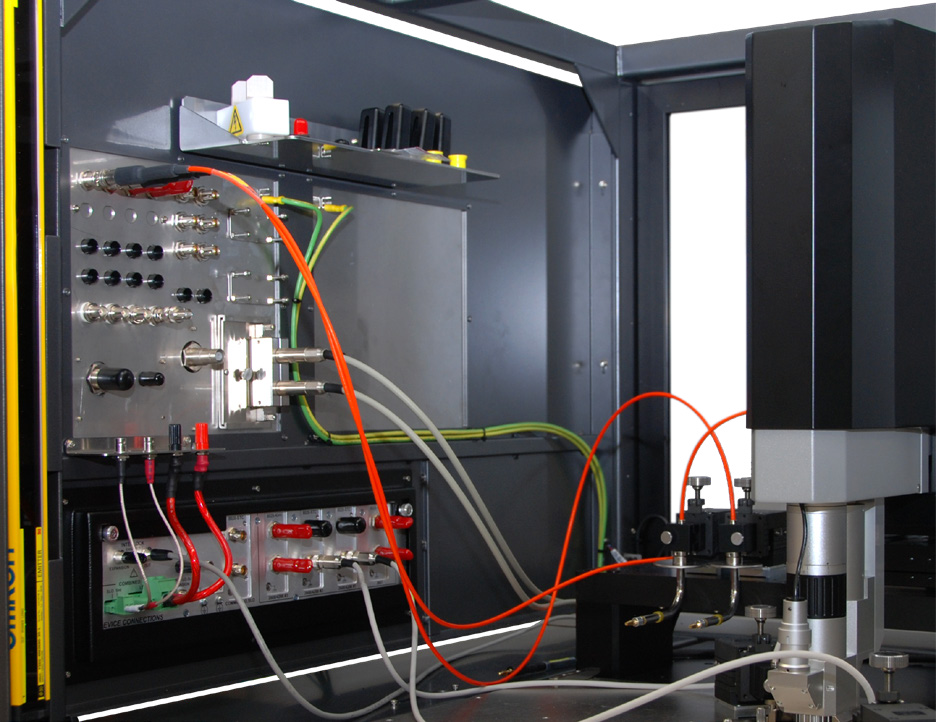

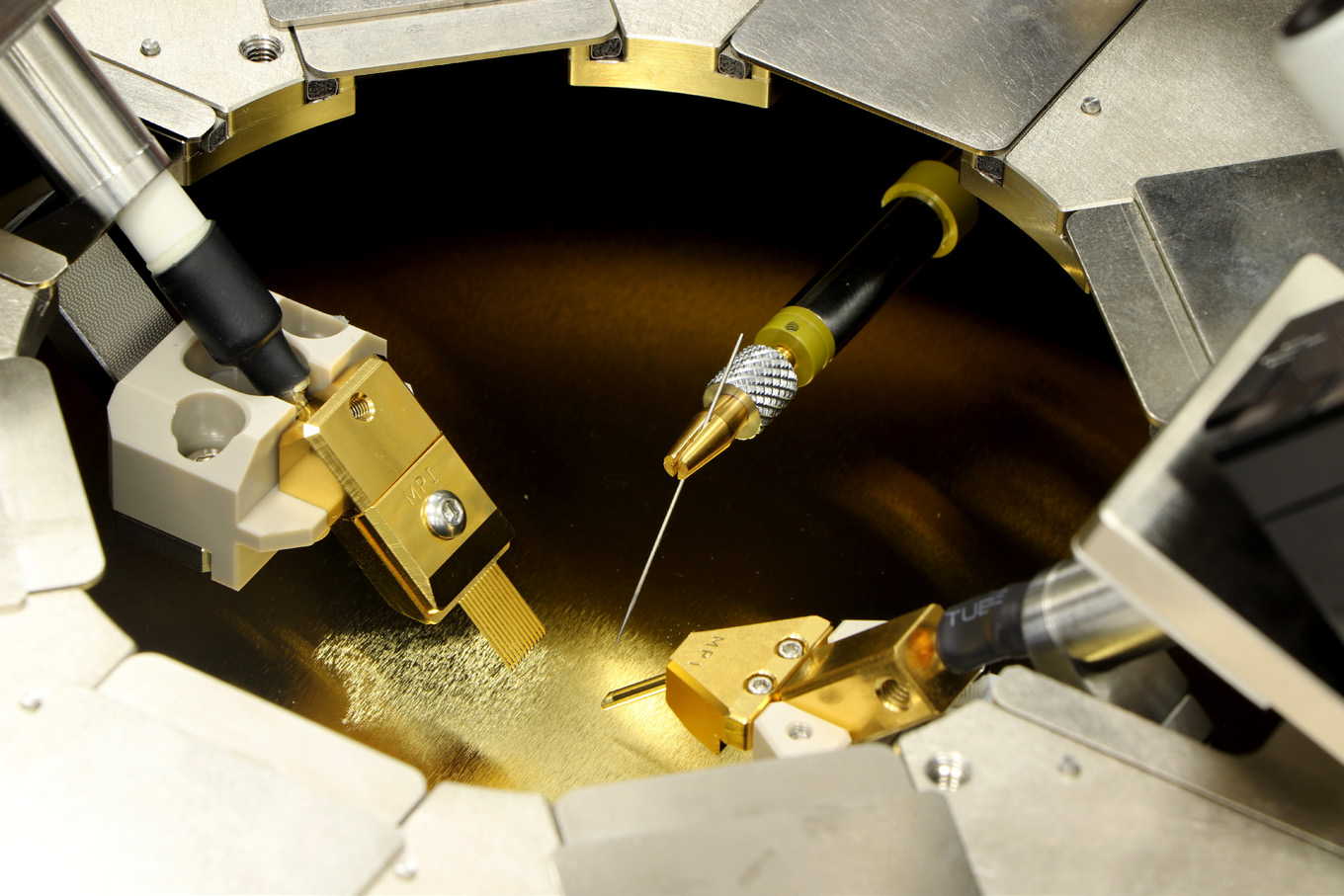

The TS3000-HP is a 300 mm automated probe system designed for high-power measurements up to 10 kV and 600 A. It features advanced anti-arcing technologies, ergonomic design, and precise control systems for reliable testing.
Save to Favorites
Overview
Specifications

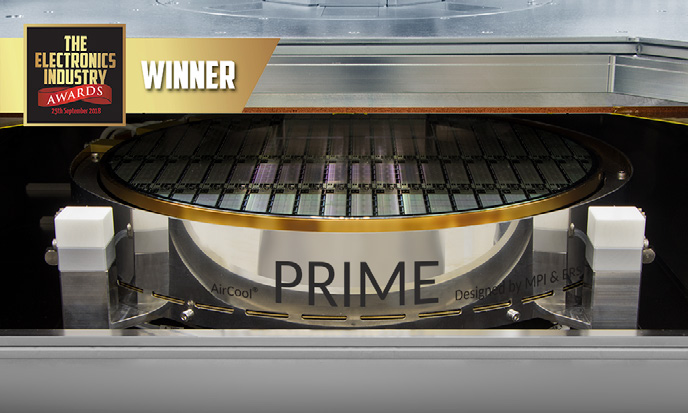

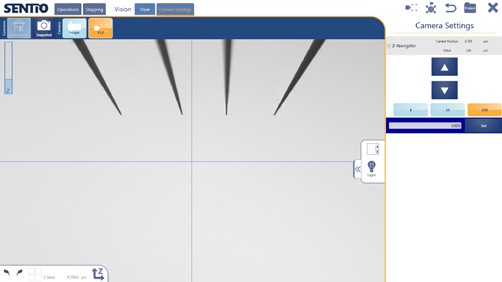

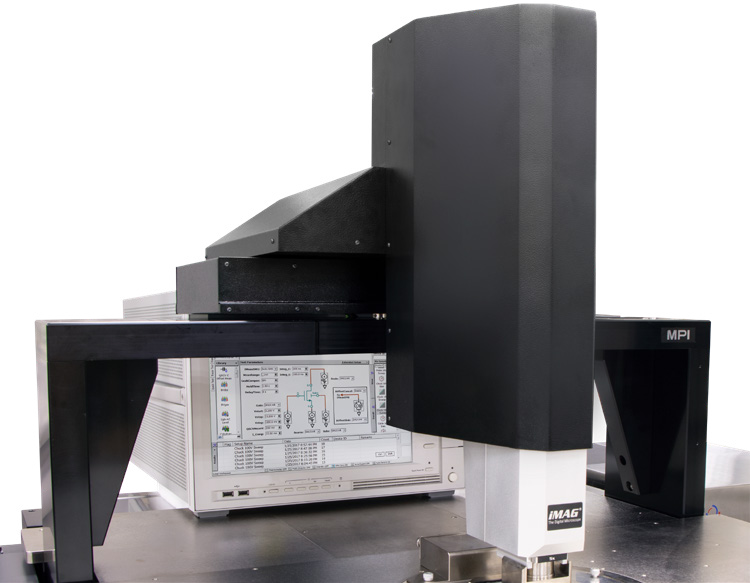

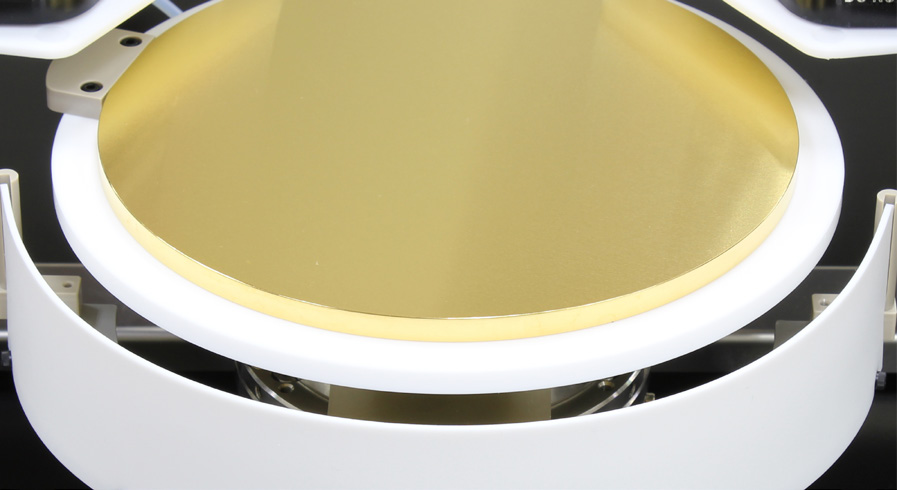

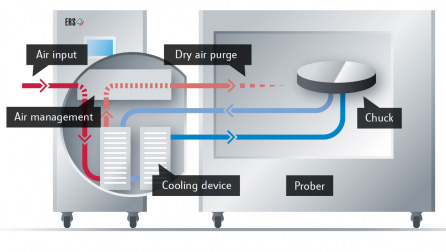

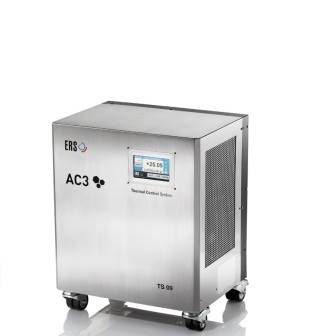

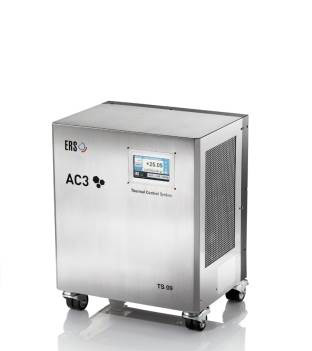

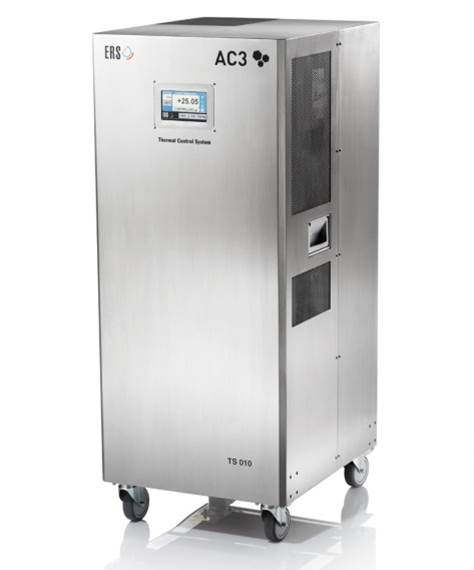

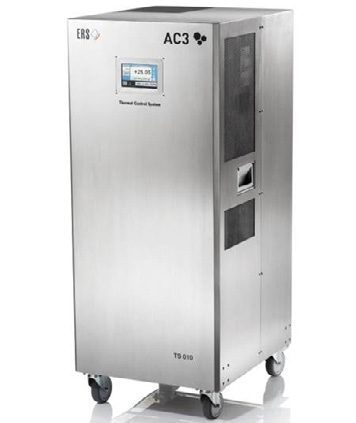

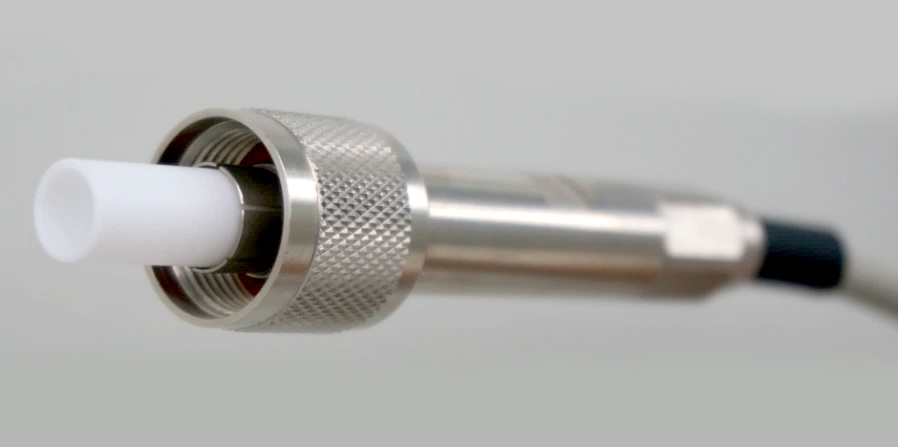

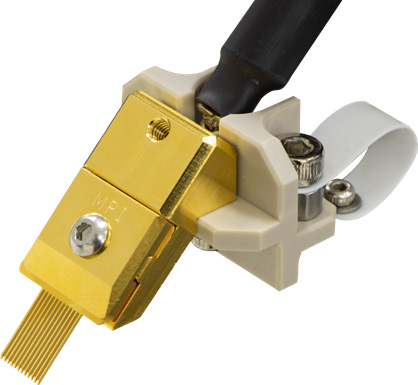

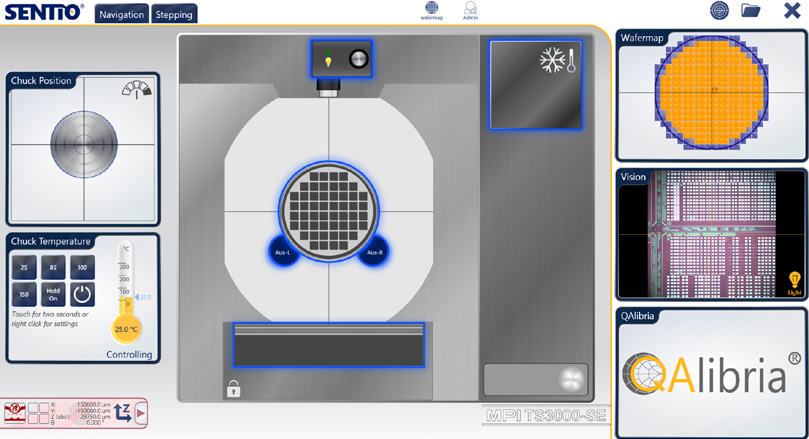

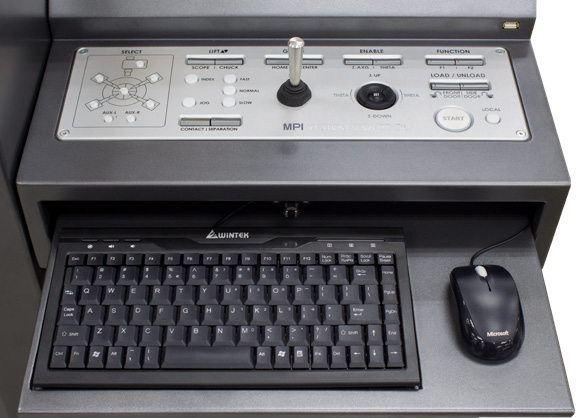

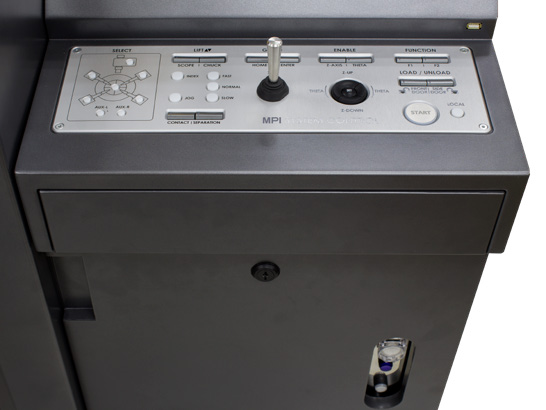

| Parameter | Value |
|---|---|
| Chuck Dimensions | 310 mm x 335 mm |
| Chuck Resolution | 0.5 μm |
| Chuck Accuracy | ±2.0 μm |
| Chuck Speed | 50 mm/sec |
| Chuck Z-Axis Travel | 30 mm |
| Chuck Z-Axis Resolution | 0.2 μm |
| Chuck Z-Axis Accuracy | ±2 μm |
| Chuck Z-Axis Repeatability | ±1 μm |
| Chuck Theta Travel | ±5° |
| Chuck Theta Resolution | 0.0001° |
| Chuck Theta Accuracy | <2.0 μm |
| Chuck Theta Repeatability | <1.0 μm |
| Microscope Movement Range | 50 x 50 mm / 300 x 300 mm |
| Microscope Resolution | 1 μm |
| Microscope Repeatability | ≤2 μm |
| Microscope Accuracy | ≤5 μm |
| Microscope Z-Axis Travel | 140 mm |
| Microscope Z-Axis Resolution | 0.05 μm |
| Microscope Z-Axis Repeatability | ≤2 μm |
| Microscope Z-Axis Accuracy | ≤4 μm |
| EMI Shielding | ≥30 dB |
| Light Attenuation | ≥130 dB |
| Spectral Noise Floor | ≤-180 dBVrms/rtHz |
| System AC Noise | ≤5 mVp-p |
| Chuck Temperature Range | -60°C to 300°C |
| Chuck Temperature Stability | ±0.5°C |
| Chuck Temperature Accuracy | ±0.1°C |
| Chuck Temperature Display Resolution | 0.01°C |
| Heating Rate | <12 min (-60°C to 25°C) |
| Cooling Rate | <15 min (25°C to -10°C) |
| Max Voltage | 10 kV |
| Max Current | 600 A |
| Residual Capacitance | ≤2.5 pF |
| System Dimensions | 1400 x 1300 x 1700 mm |
| System Weight | 960 kg |
| Controller CPU | Intel Core i7-7700, 3.6 GHz |
| Controller RAM | DDR4 2400 MHz 16 GB |
| Controller Storage | SSD 500 GB |
| Controller OS | Windows 10 Professional |
| Controller Power | 460 W |
| Controller LAN | TCP/IP ports |
| Controller USB Ports | 3 internal, 1 external |
| Controller GPIB Interface | Optional |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Vacuum Requirements | -0.9 bar |
| Compressed Air Requirements | 6.0 bar |
