Electro-Optic Deflectors (EODs): Overview and Operating Principle
Published: 2026-07-17 13:45:50 Views: 200
Electro-Optic Deflectors (EODs): Overview and Operating Principle
Electro-optic deflectors (EODs) are optical devices used to steer or deflect light beams by applying an electric field to a specialized optical crystal. Unlike mechanical beam steering systems that rely on moving mirrors, electro-optic deflectors enable high-speed, non-mechanical beam control with exceptional precision and responsiveness. They are widely used in laser scanning, optical communications, microscopy, laser printing, spectroscopy, and scientific research, where rapid and accurate laser beam positioning is essential.

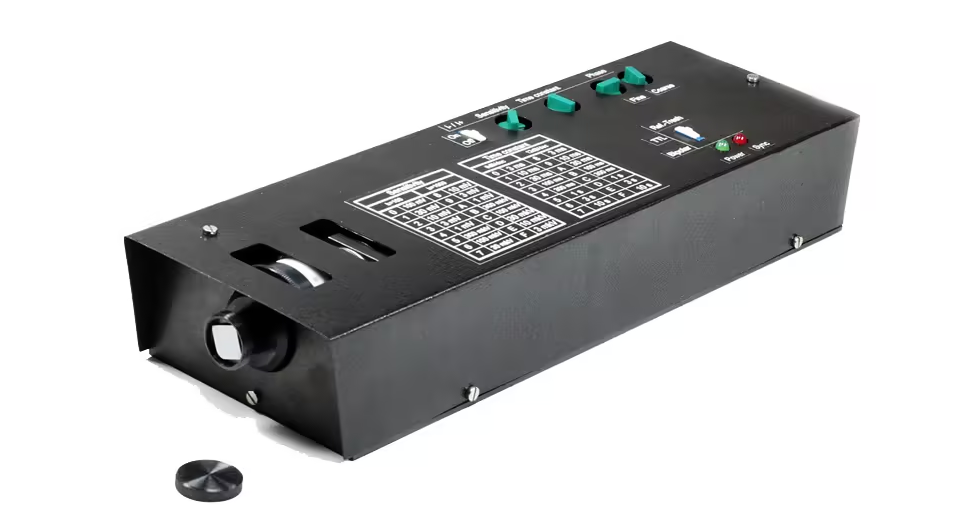

Figure 1: Electro-optic deflector
Electro-optic deflectors operate based on the electro-optic effect, where the refractive index of certain crystals changes in response to an applied electric field. This change alters the propagation path of light, allowing the laser beam to be redirected at extremely high speeds. Compared to traditional mirror-based systems, electro-optic deflectors provide faster beam steering and highly precise optical control.
Working of an Electro-Optic Deflector
An electro-optic deflector works by manipulating the refractive properties of an optical crystal using an applied electric field. When voltage is applied to the crystal, its refractive index changes, causing the direction of the incoming light beam to shift. By adjusting the applied voltage, the beam can be redirected with high precision and extremely fast response times.

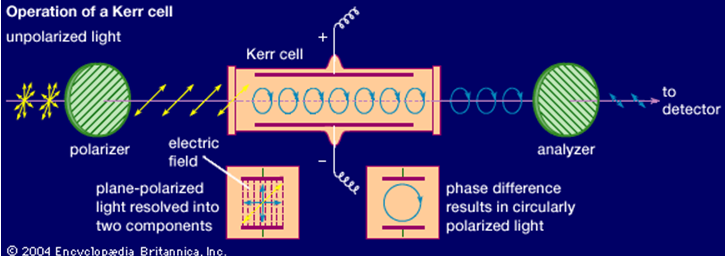

Figure 2: Electro Optic Effect
The operating principle of electro-optic deflectors is primarily based on the Pockels effect, where certain crystals exhibit an instantaneous change in refractive index when exposed to an electric field. This enables beam steering in nanoseconds, making electro-optic deflectors ideal for high-speed optical systems requiring rapid switching and accurate beam positioning.
