SWIT-009

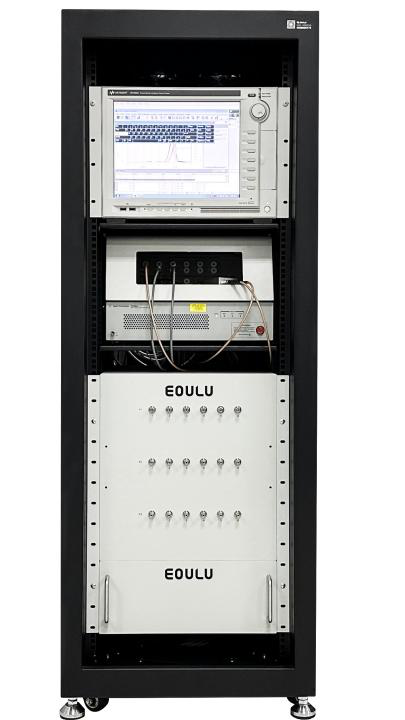

SWIT-009 is a high-performance matrix switch designed for precise and efficient signal routing in various applications. It features advanced technical specifications and robust design, making it suitable for demanding environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Number of Input Ports | 12 |
| Number of Output Ports | 18 |
| Maximum Operating Voltage | 3000V |
| Maximum Operating Current | 1ADC, 5APulse (持续10ms,占空比10%) |
| Maximum Switching Time | <1ms@30V |
| Maximum Closing Time | <1ms@30V |
| Input Interface Type | SHV-F |
| Output Interface Type | SHV-F |
| Communication Interface Type | Ethernet/RS232 |
| Accessories | 2m电源线1pcs, 3m网络线1pcs, 2mRS232线1pcs |
| Channel Leakage Current | 15.80pA-105.71pA |
| Inter-Channel Leakage Current | 1.23pA-276.88pA |
| Channel Resistance | 59mΩ-71mΩ |
| Channel Insulation Resistance | 13.45TΩ-7531TΩ |
| Inter-Channel Insulation Resistance | 10.83TΩ-2438.26TΩ |
| Capacitance Value | 0.05pF@1MHz-0.71pF@1MHz |
| Inductance Value | 0.96μH@1MHz-1.25μH@1MHz |
| Maximum Switching Voltage (DC or AC Peak) | 1000V |
| Maximum Switching Current (DC or AC Peak) | 1A |
| Maximum Power Handling | 100W |
| Switch Control Voltage | 24V |
| Typical Channel Resistance | 50mΩ |
| Minimum Insulation Resistance | 10TΩ (RH<45%,测试电压为100V) |
| Breakdown Voltage (30~40AT) | 3000VDC |
| Maximum Opening Time | 1.1ms |
| Typical Capacitance | 0.5pF (开关开启@10kHz) |
| Dimensions (WxDxH) | 602mmx494mmx631mm |
| Maximum Dimensions (WxDxH) | 642mmx494mmx631mm |
| Net Weight | ~66kg |
| Shipping Weight | ~90kg |
| Power Supply | 220VAC,50Hz |
| Operating Temperature | 0~55°C |
| Operating Humidity | 10%~95%RH(@25°C,None冷凝) |
| Storage Temperature | -35~70°C |
| Storage Humidity | 10%~95%RH(@25°C,None冷凝) |
