futureD Semiconductor Big Data System
futureD is a big data processing tool designed to help customers process massive data generated during semiconductor testing. It simplifies calculations, making data processing faster and more efficient.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Server Room | 不同断电源、温度、湿度适宜，防尘 |
| Operating System | win10; 64位操作系统 |
| Processor | 6核 |
| Memory | 16GB运行内存 |
| Hard Disk | 分配存储空间:1TB(具体视业务需求调整) |
| Maximum Calculation per Click | <=100000颗芯片;3 complete plans单值Parameters |
| Maximum Curve Calculation per Click | <=20000颗芯片;50 complete plans单值Parameters |
| Maximum Graphical Display Items | 100000颗芯片对应结点显示项，系统不崩溃 |
| Typical Calculation Time Parameter | ≤15所有项目 |

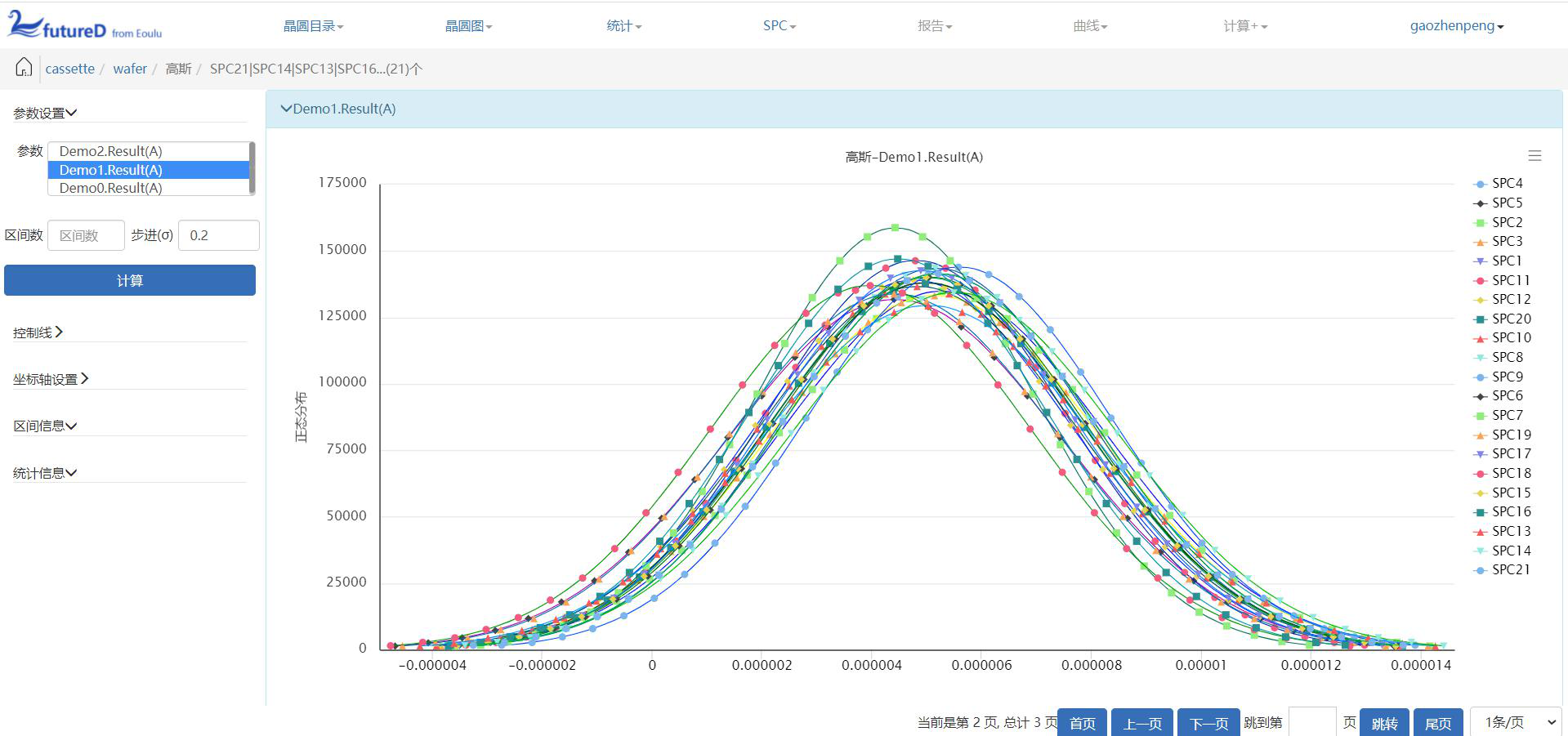

| Curve Overlay | 10组曲线，More组曲线需增加扩展 |

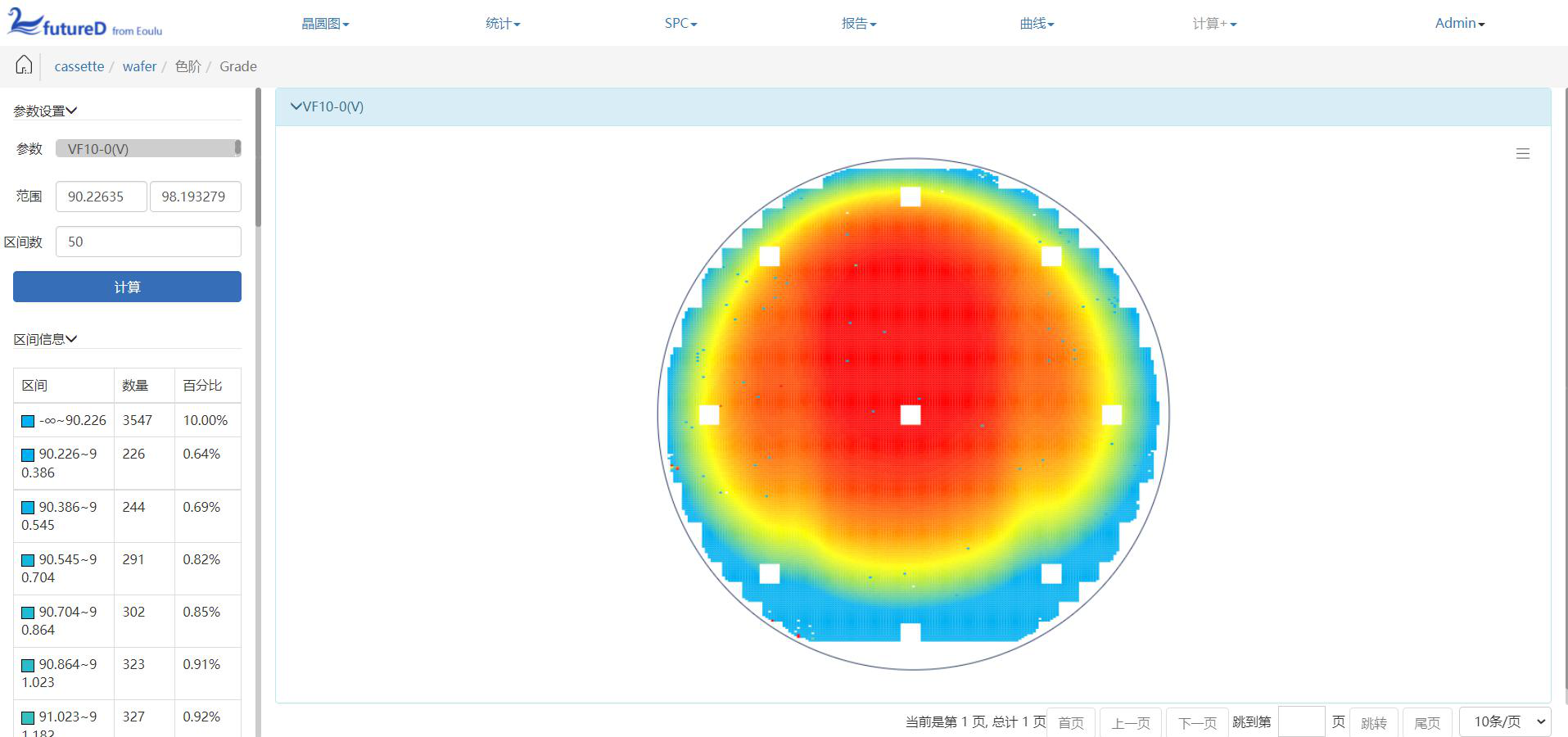

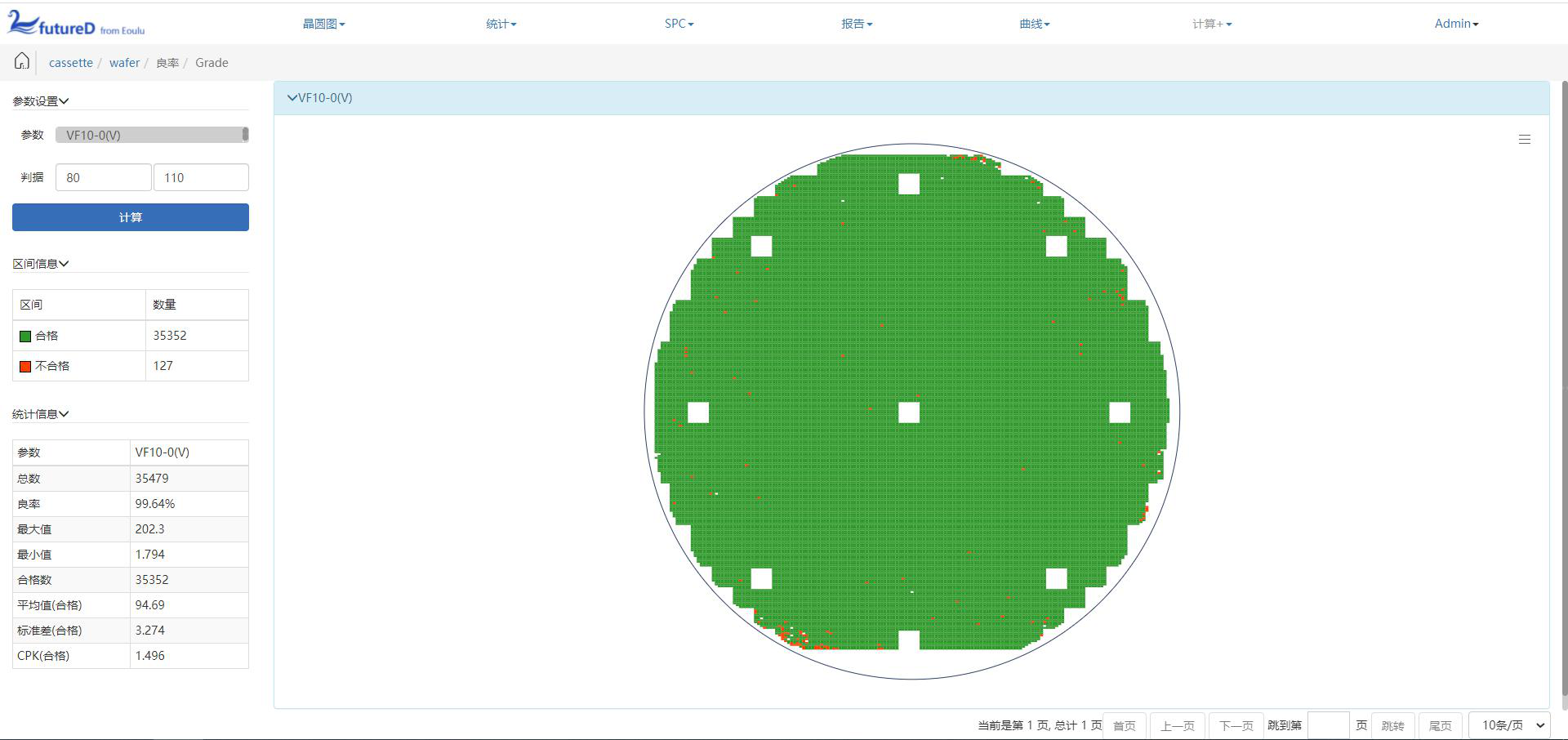

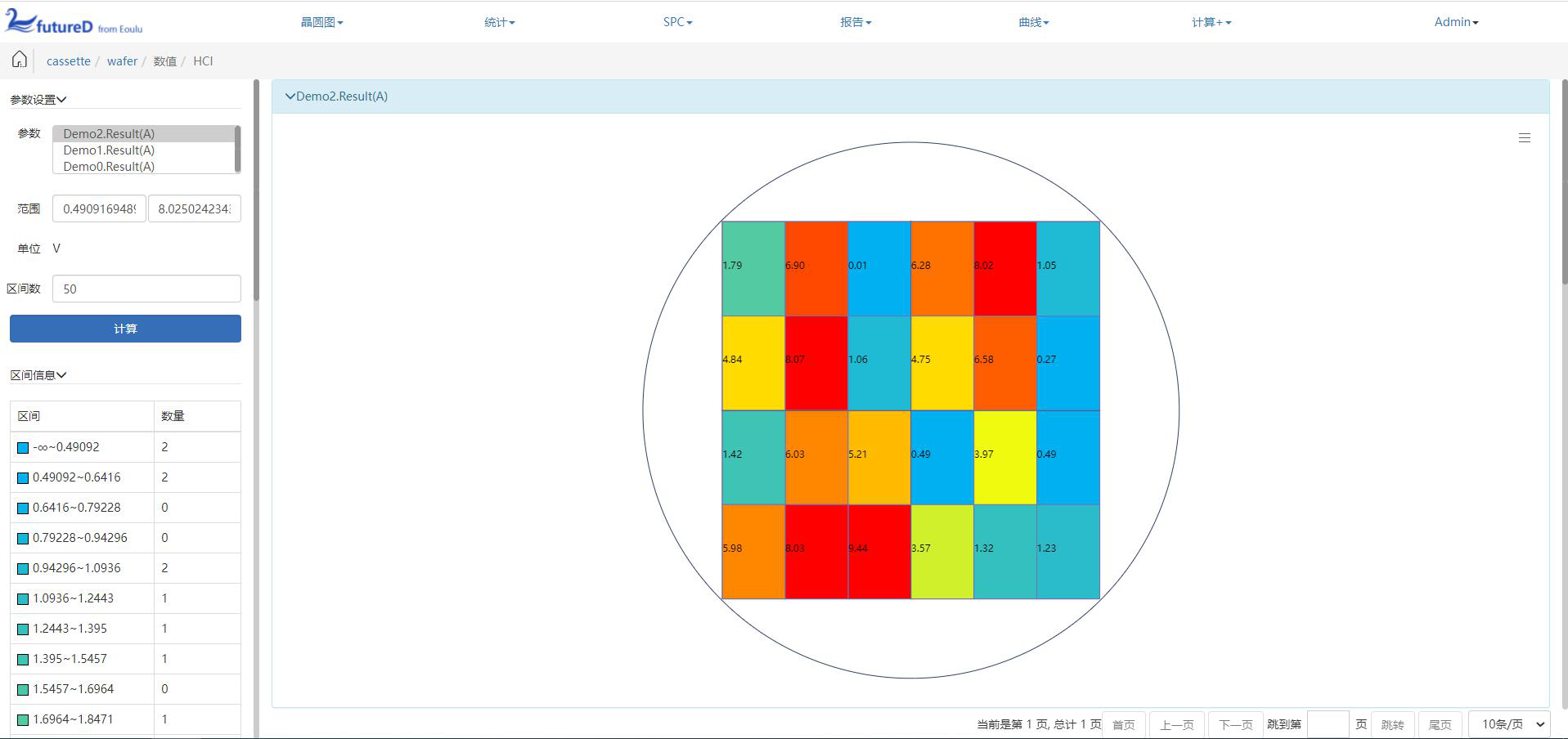

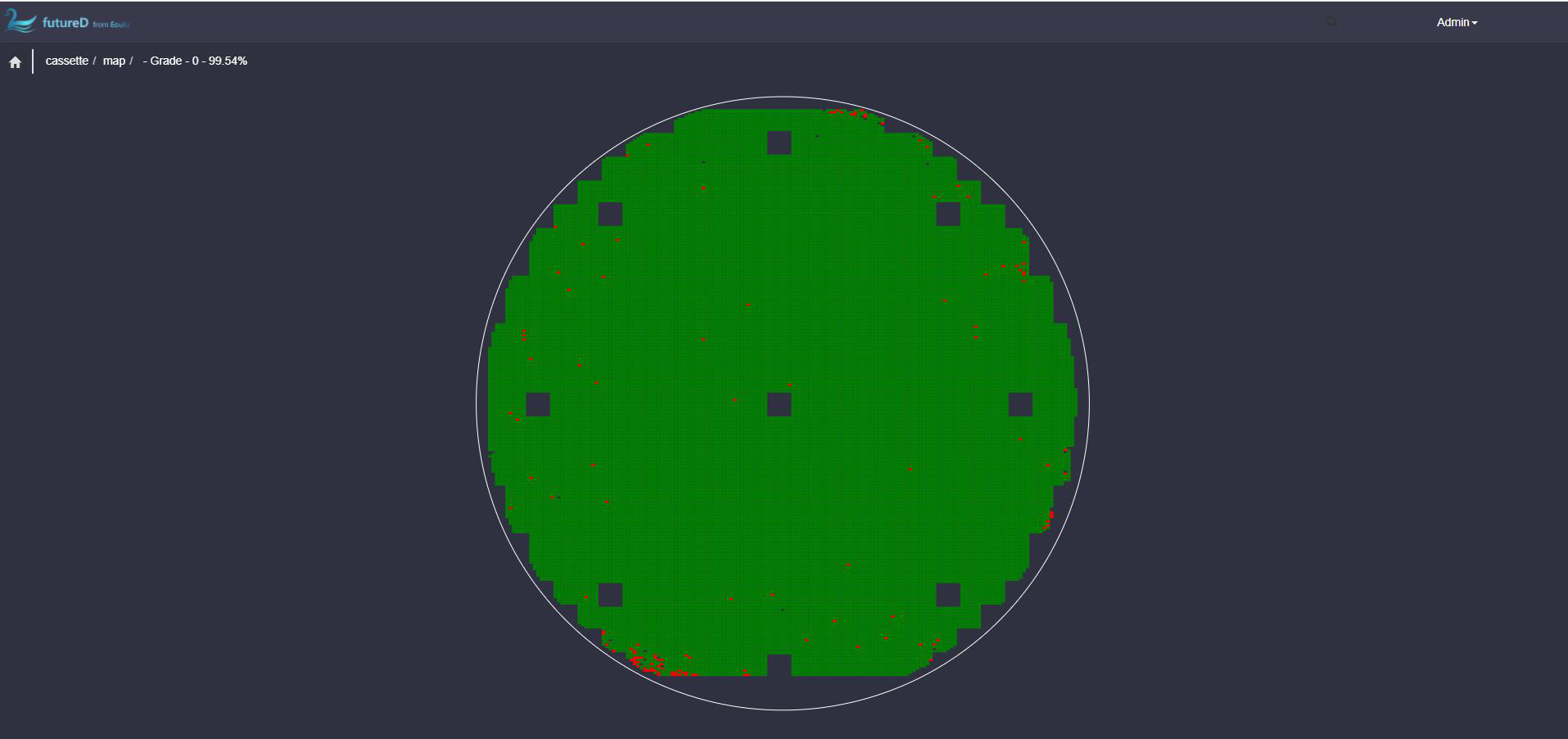

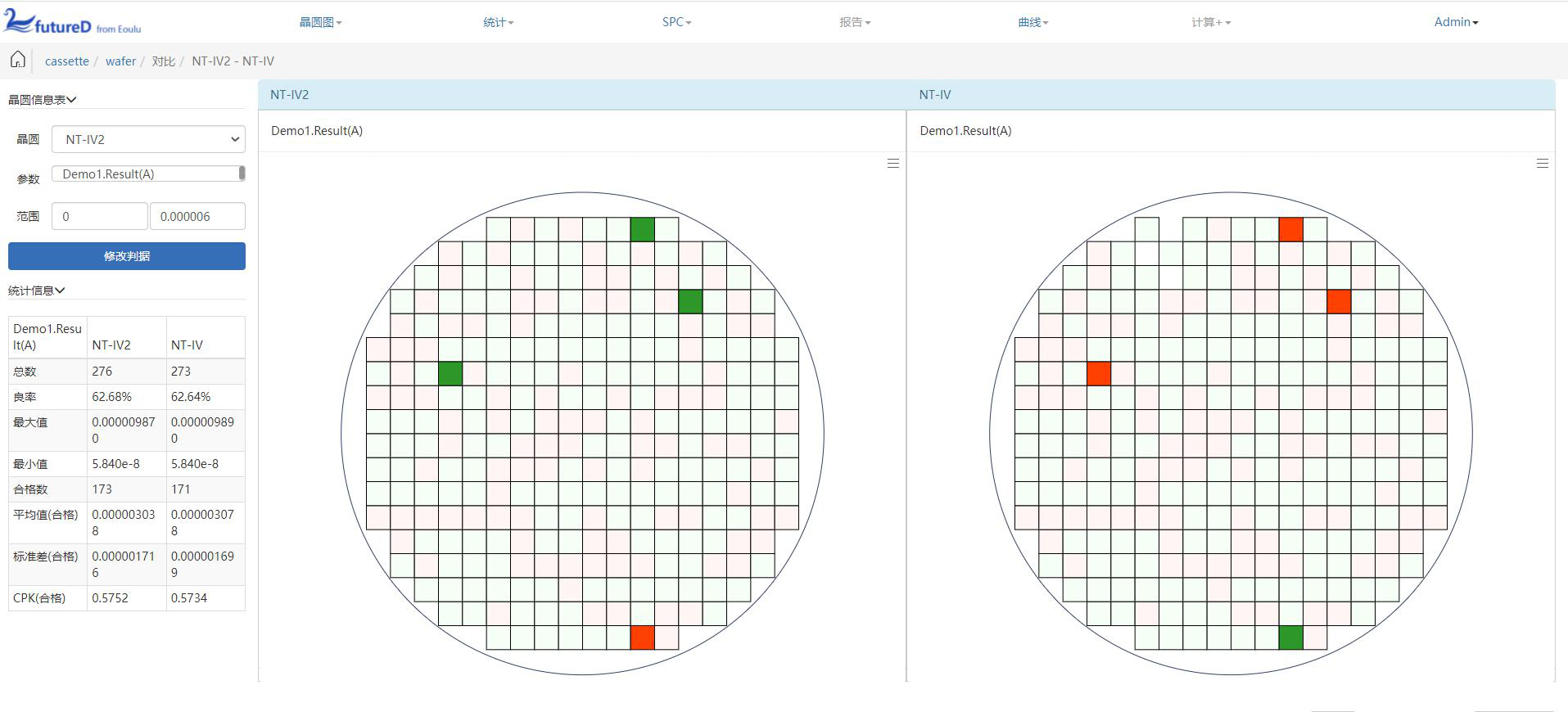

| Wafer Map Values | <120die显示项 |

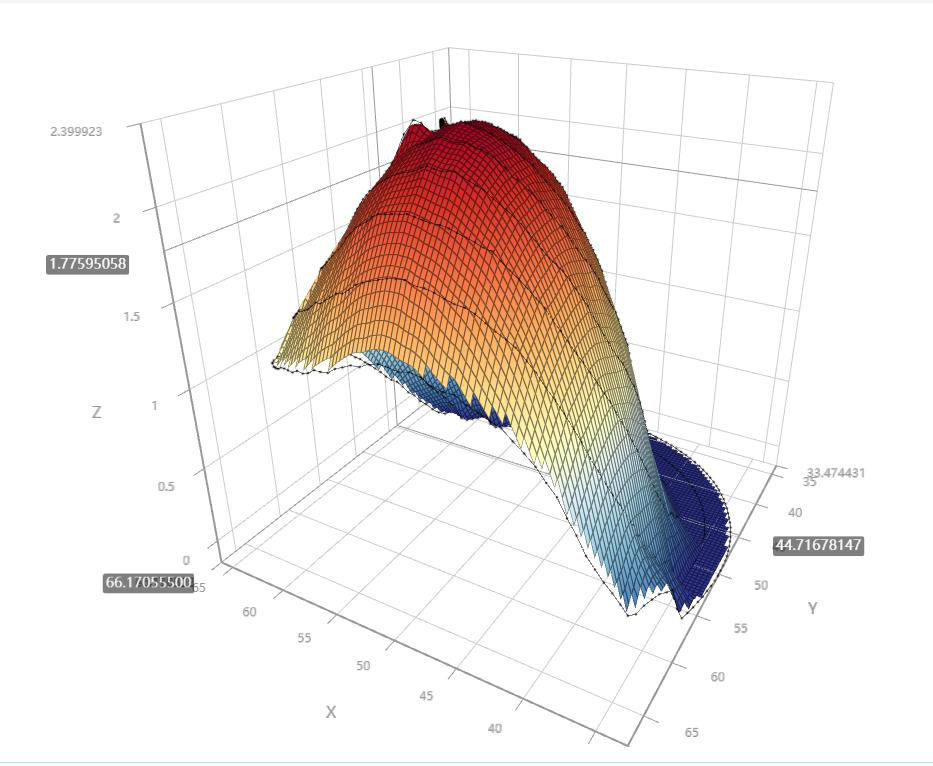

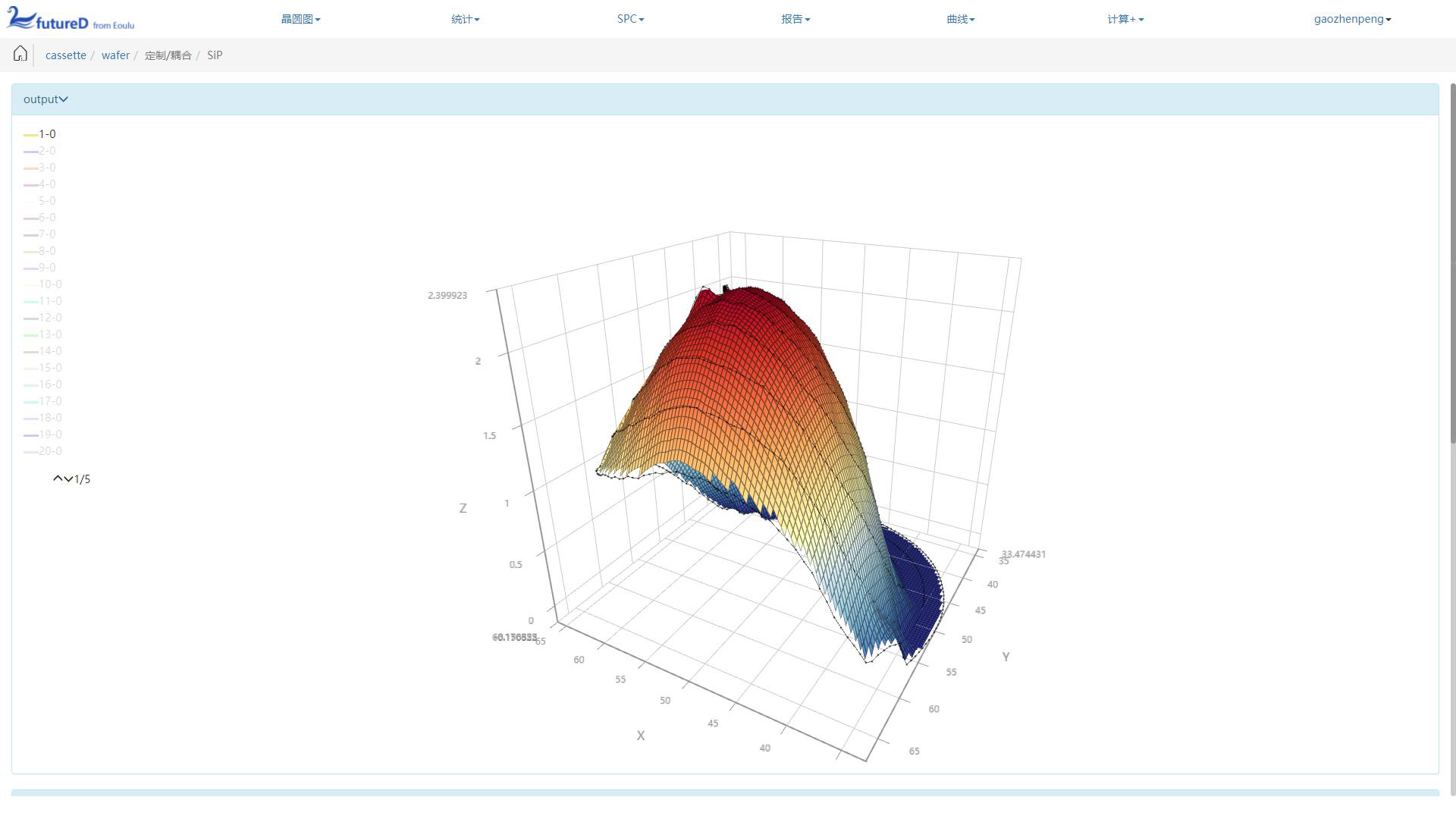

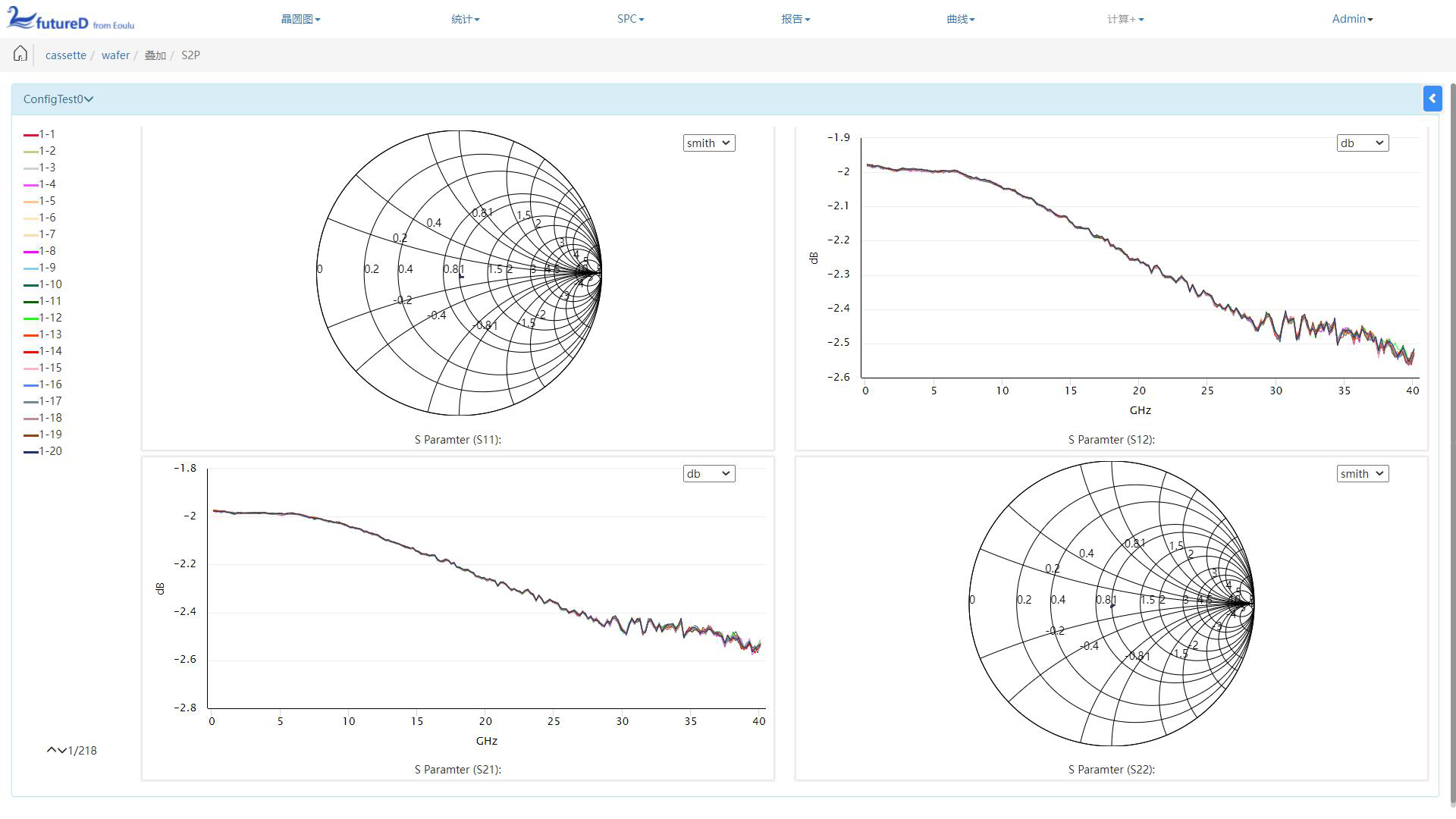

| Curve | 对数坐标、极坐标、X-Y坐标、Smithchart、三维mesh坐标，可添加More坐标系 and 曲线展示项 |
