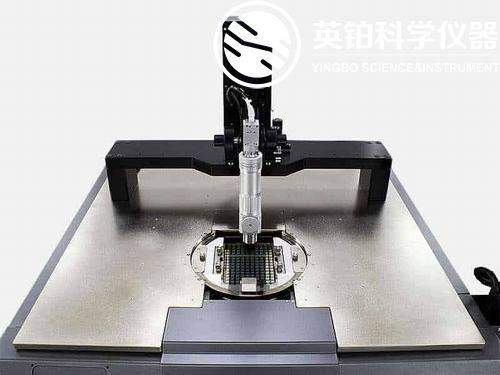

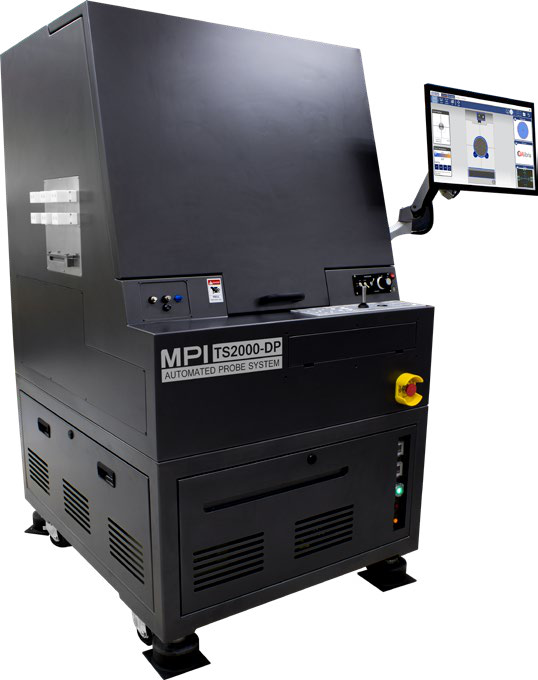

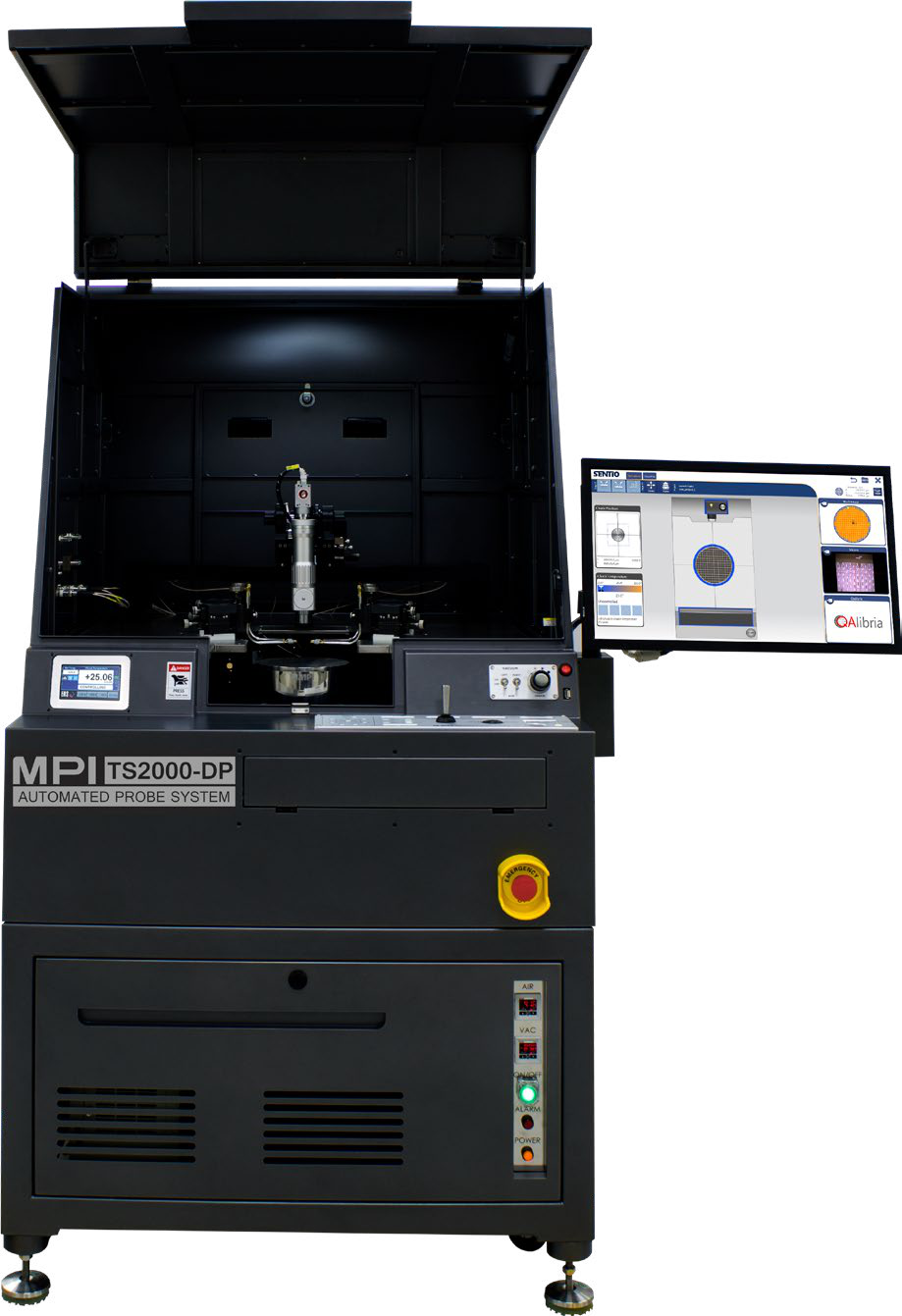

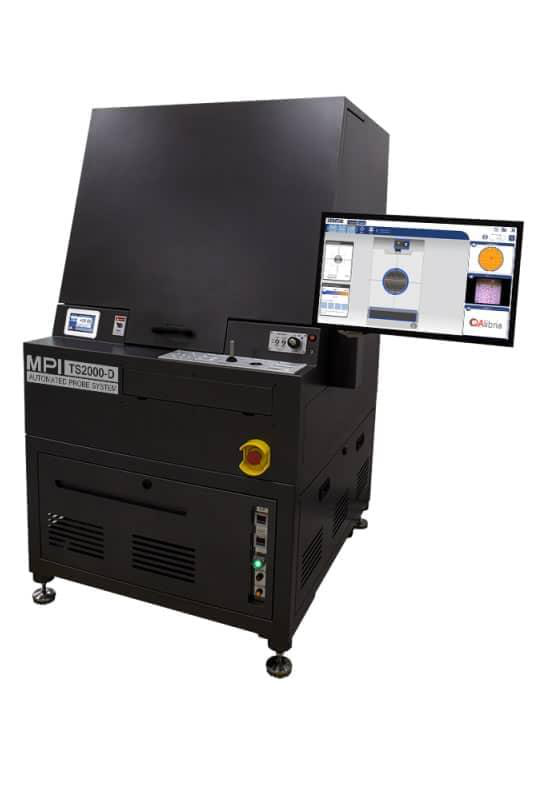

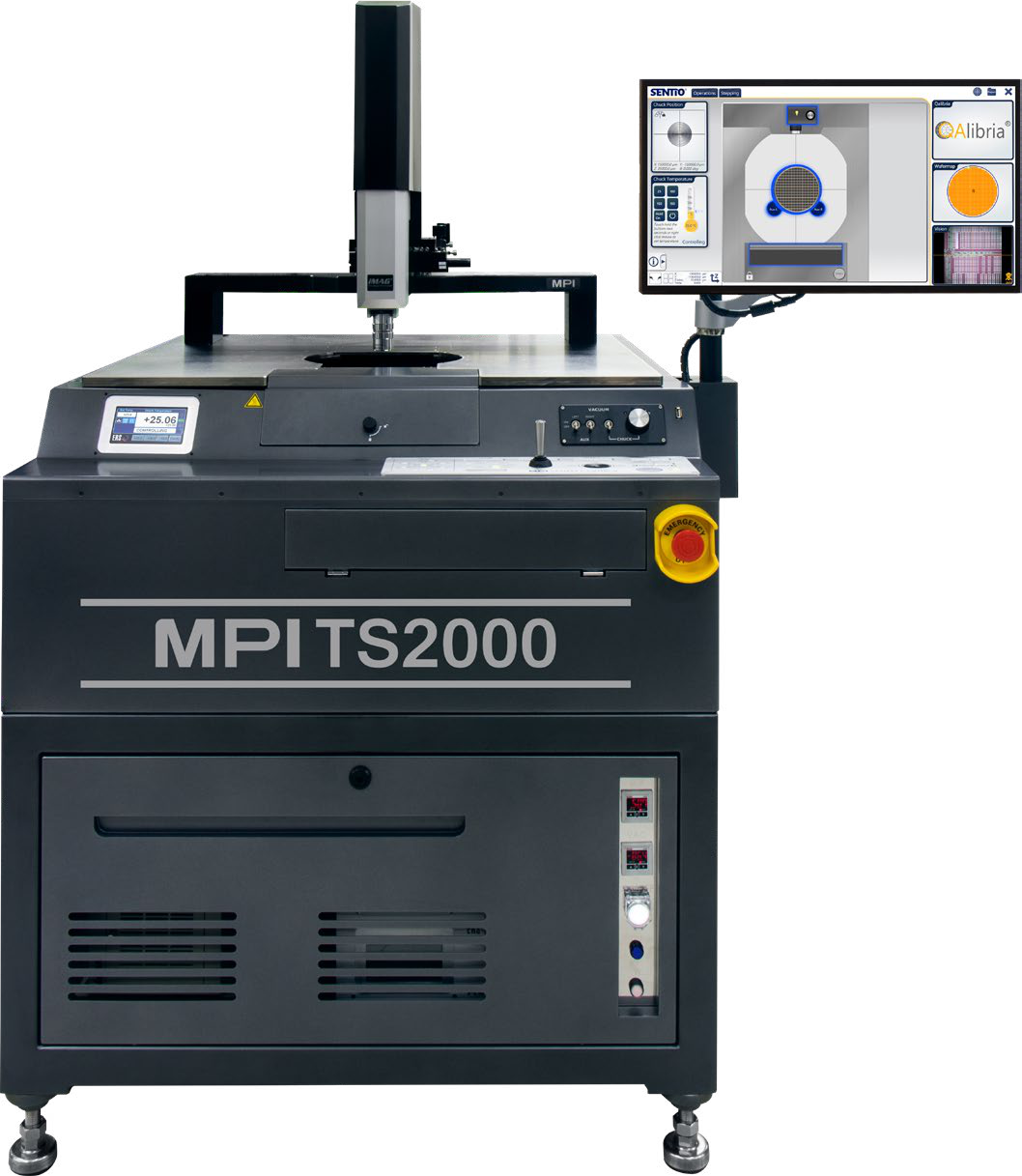

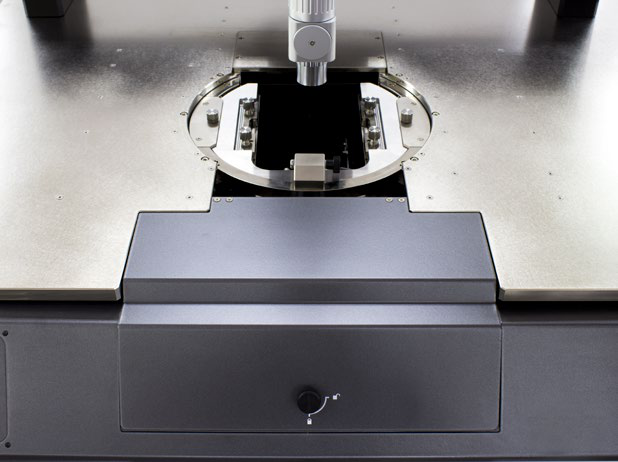

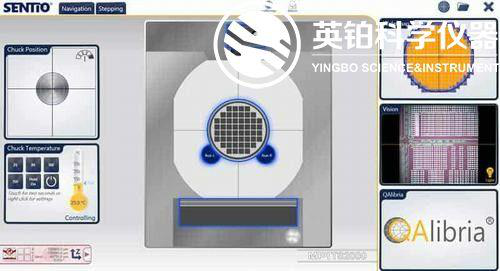

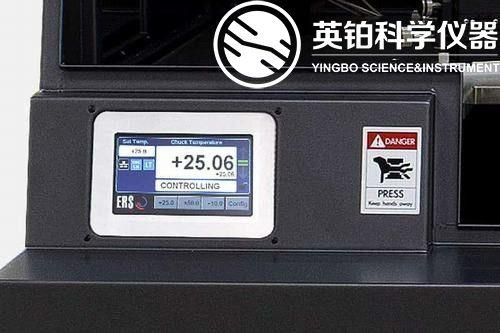

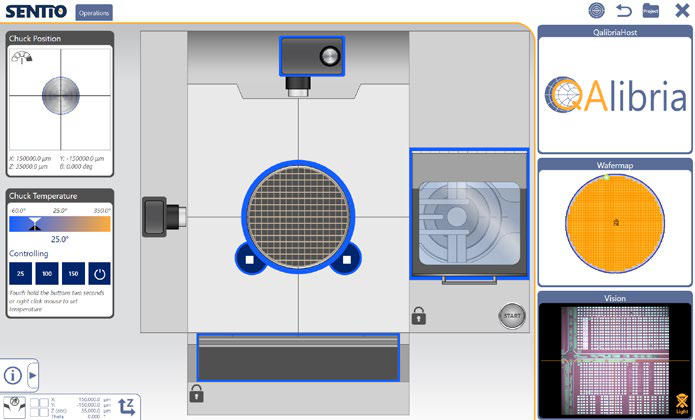

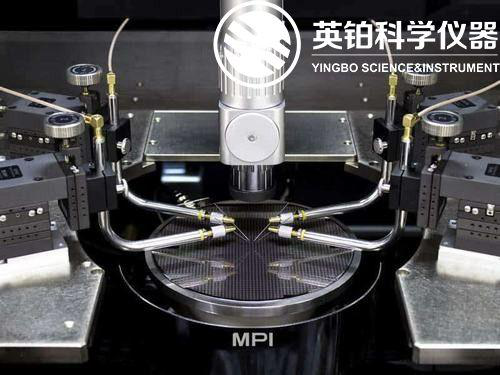

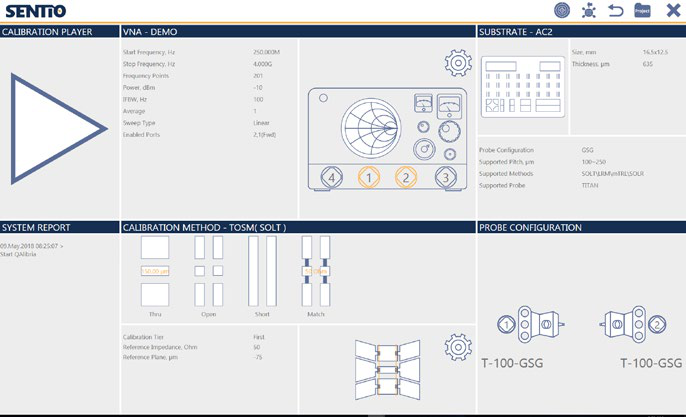

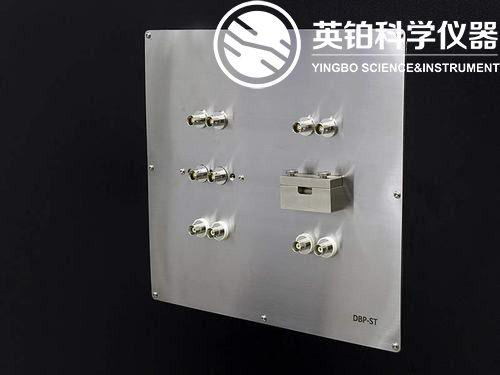

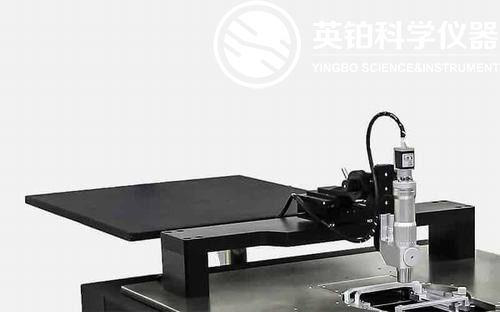

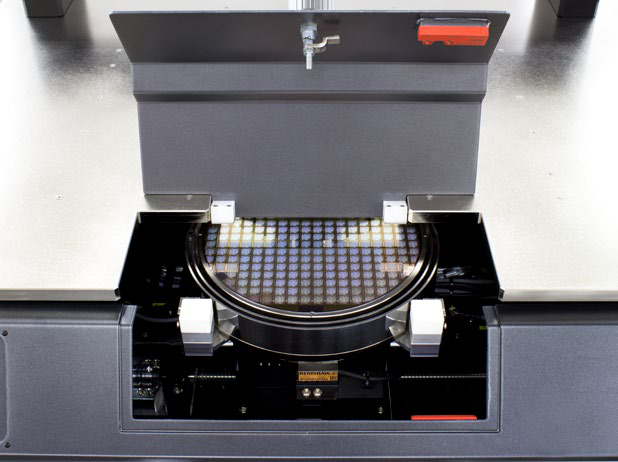

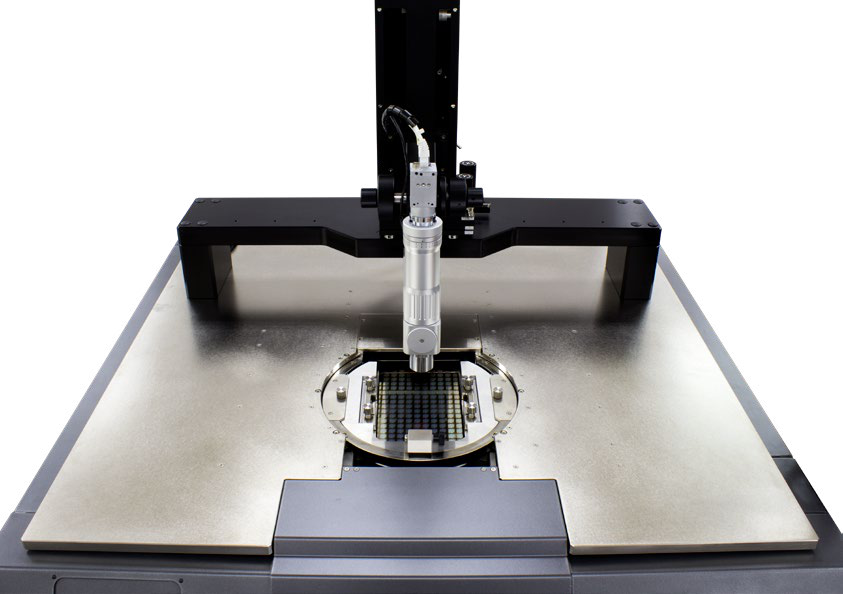

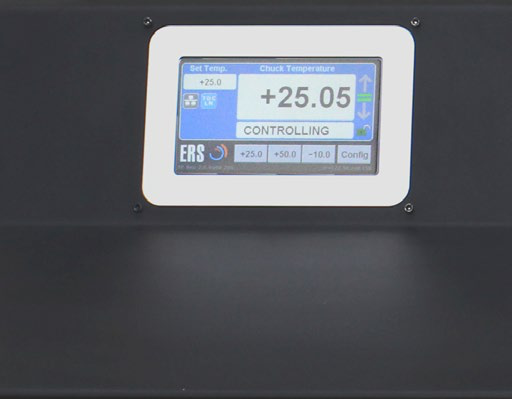

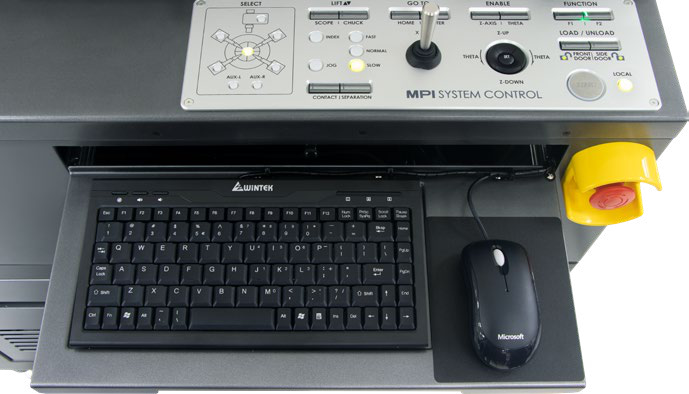

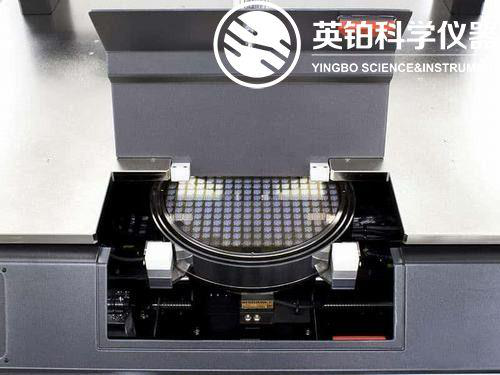

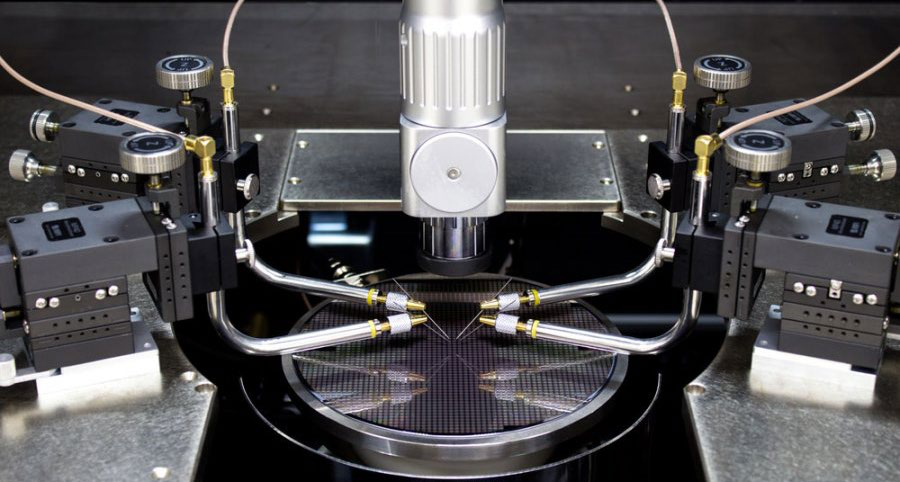

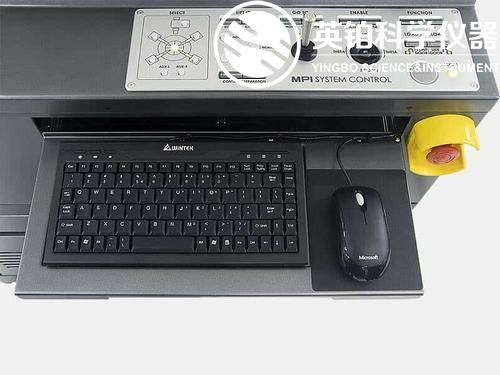

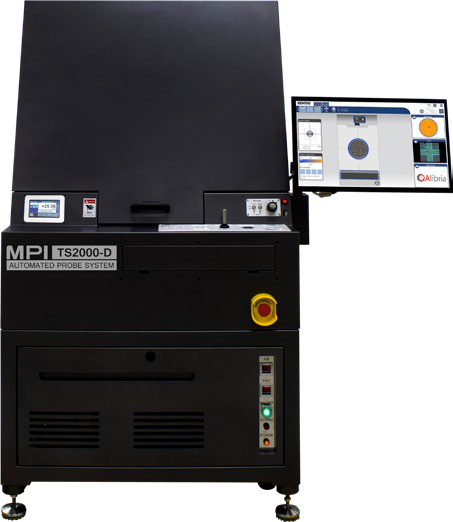

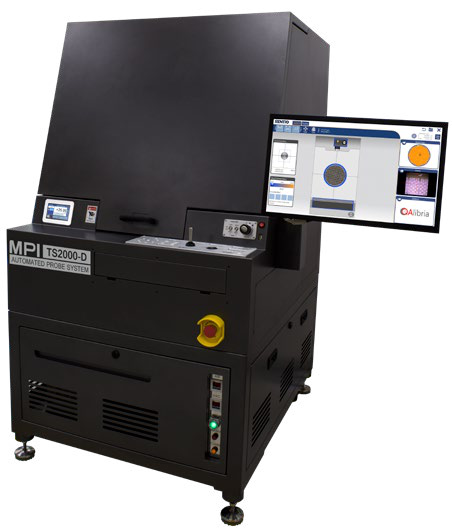

MPI TS2000 Series

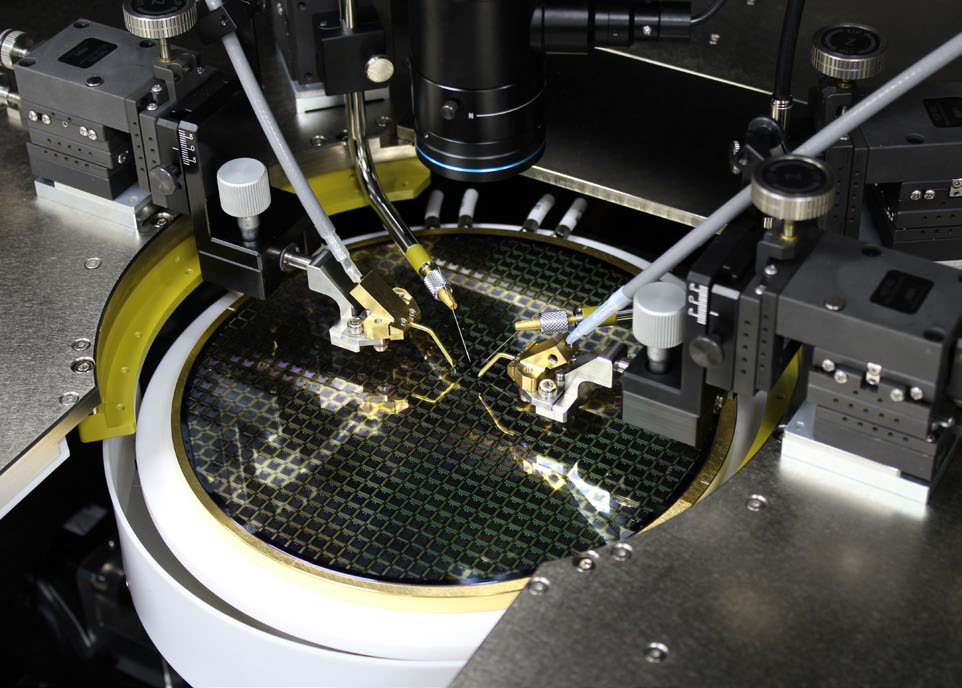

The MPI TS2000 Series is a 200 mm automated probe system designed for accurate and reliable DC/CV, RF, and high-power measurements. It features advanced thermal chucks, integrated dark box, and intuitive software for efficient testing.
Save to Favorites
Overview
Specifications

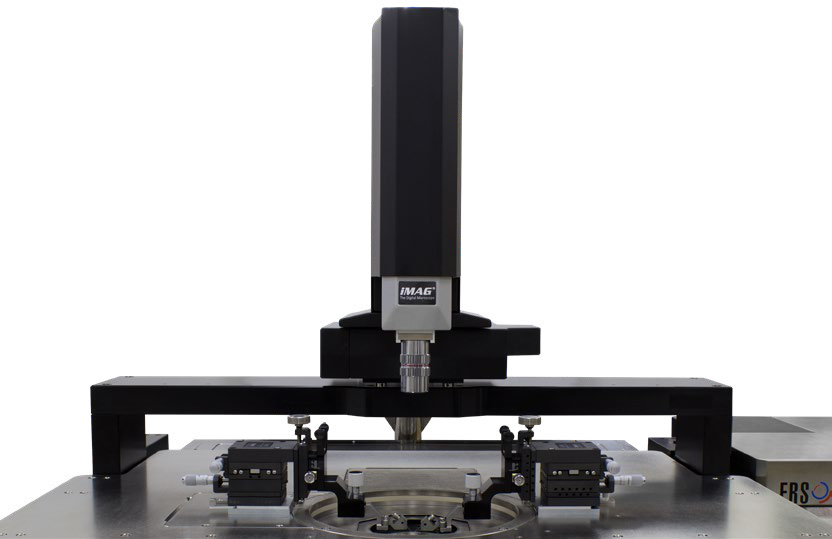

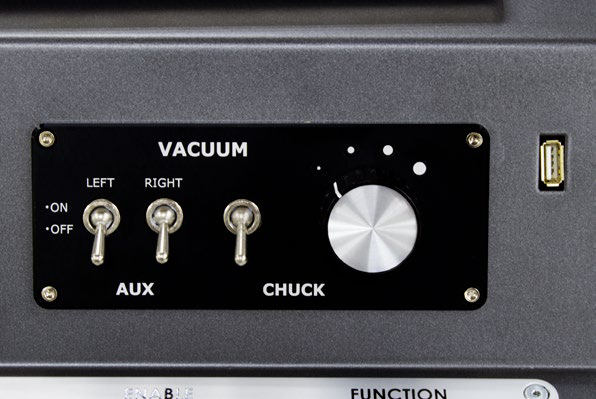

| Parameter | Value |
|---|---|
| Chuck XY Stage Travel Range | 210mm×340mm |
| Chuck XY Stage Resolution | 0.1μm |
| Chuck XY Stage Accuracy | ±4.0μm |
| Chuck XY Stage Drive | Closed-loop high precision servo motor PID control |
| Chuck XY Stage Speed | 5-Speed XY chuck stage speed movement |
| Chuck XY Stage Max Movement Speed | 100mm/s |
| Chuck Z Stage Travel Range | 10mm |
| Chuck Z Stage Resolution | 0.2μm |
| Chuck Z Stage Accuracy | ±2.0μm |
| Chuck Z Stage Repeatability | ±3.0μm (in fast mode) |
| Chuck Z Stage Drive | Closed-loop high precision servo motor PID control |
| Chuck Z Stage Speed | 5-Speed Z chuck stage adjustable speed movement |
| Chuck Z Stage Max Movement Speed | 30mm/s |
| Chuck Theta Stage Travel Range | ±5° |
| Chuck Theta Stage Resolution | 0.0004° |
| Chuck Theta Stage Accuracy | <3.0μm (measured at the edge of the 200mm chuck) |
| Chuck Theta Stage Repeatability | <2.0μm |
| Chuck Theta Stage Drive | High resolution stepper motor with linear encoder feedback system |
| Microscope XYZ Programmable Travel Range | 50mm×50mm |
| Microscope XYZ Programmable Resolution | 1μm (0.04mils) |
| Microscope XYZ Programmable Repeatability | <2μm (0.08mils) |
| Microscope XYZ Programmable Accuracy | <5μm (0.2mils) |
| Microscope Z Travel Range | 140mm |
| Microscope Z Resolution | 0.05μm (0.002mils) |
| Microscope Z Repeatability | <2μm (0.08mils) |
| Microscope Z Accuracy | <4μm (0.016mils) |
| Probe Platen Material | Nickel plated steel |
| Chuck Top to Platen Top Minimum Height | 28mm |
| Max Number of MicroPositioners | 12x DC MicroPositioners or 4x DC + 4x RF MicroPositioner Setup |
| Electrical Specification Operation Voltage | 100-240VAC auto switch |
| Electrical Specification Frequency | 50Hz/60Hz |
| Electrical Specification Operating Pressure | 6.0bar (0.6MPa, 87psi) |
| System Controller CPU | Intel Core i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151(4C/8T) |
| System Controller RAM | DDR4 2400MHz 16GB×1 |
| System Controller Operating System | Windows 10 Professional (English) |
| System Controller Power | 460W |
| System Controller Storage | SSD 500GB |
| System Controller LAN | One internal and one external TCP/IP ports |
| System Controller USB Ports | Internal (on PC)×3, External×1 |
| System Controller GPIB Interface | Optional |
| System Dimensions | 900mm×1100mm×1345mm (35.4×43.3×53.0in) |
| System Weight | 500kg (1102lb) |
