KDE412SA Probe Station
The KDE412SA Probe Station is a high-precision device designed for advanced testing and measurement applications in the field of optoelectronics.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

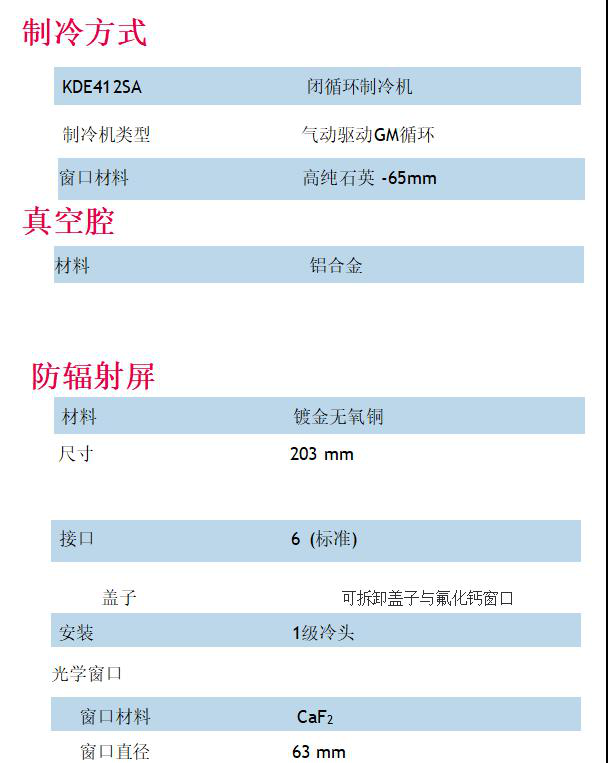

| Cooling Method | 闭循环制冷机 |
| Refrigeration Type | 气动驱动GM循环 |
| Window Material | 高纯石英-65mm |
| Vacuum Chamber Material | 铝合金 |
| Radiation Shield Material | 镀金None氧铜 |
| Radiation Shield Size | 203mm |
| Radiation Shield Interface | 6(标准) |
| Radiation Shield Cover | 可拆卸盖子与氟化钙窗口 |
| Radiation Shield Installation | 1级冷头 |
| Optical Window Material | CaF2 |
| Optical Window Diameter | 63mm |

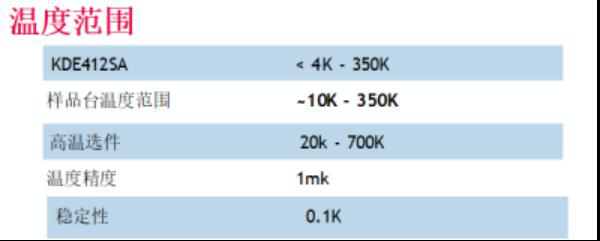

| Sample Stage Temperature Range | <4K-350K |
| High-Temperature Option | ~10K-350K |
| Temperature Accuracy | 1mK |
| Stability | 0.1K |

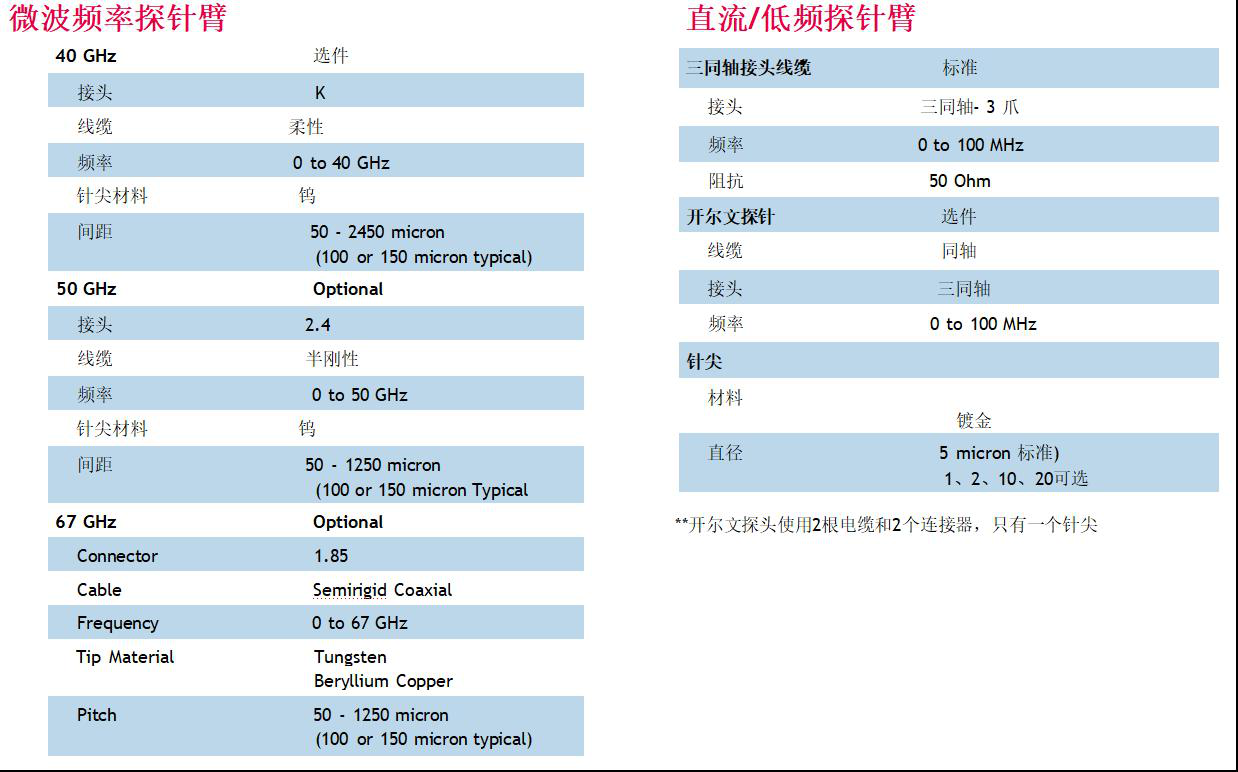

| Microwave Frequency Probe 40GHz Connector | K |
| Microwave Frequency Probe 40GHz Cable | 柔性 |
| Microwave Frequency Probe 40GHz Frequency | 0-40GHz |
| Microwave Frequency Probe 40GHz Tip Material | 钨 |
| Microwave Frequency Probe 40GHz Pitch | 50-2450micron(100or150microntypical) |
| Microwave Frequency Probe 50GHz Connector | 2.4 |
| Microwave Frequency Probe 50GHz Cable | 半刚性 |
| Microwave Frequency Probe 50GHz Frequency | 0-50GHz |
| Microwave Frequency Probe 50GHz Tip Material | 钨 |
| Microwave Frequency Probe 50GHz Pitch | 50-1250micron(100or150microntypical) |
| Microwave Frequency Probe 67GHz Connector | 1.85 |
| Microwave Frequency Probe 67GHz Cable | 半刚性同轴 |
| Microwave Frequency Probe 67GHz Frequency | 0-67GHz |
| Microwave Frequency Probe 67GHz Tip Material | 钨铍铜 |
| Microwave Frequency Probe 67GHz Pitch | 50-1250micron(100or150microntypical) |
| DC/Low-Frequency Probe Triaxial Cable | 标准 |
| DC/Low-Frequency Probe Triaxial Connector | 三同轴3爪 |
| DC/Low-Frequency Probe Triaxial Frequency | 0-100MHz |
| DC/Low-Frequency Probe Triaxial Impedance | 50Ohm |
| DC/Low-Frequency Probe Kelvin Cable | 可选 |
| DC/Low-Frequency Probe Kelvin Connector | 同轴 |
| DC/Low-Frequency Probe Kelvin Frequency | 0-100MHz |
| DC/Low-Frequency Probe Tip Material | 镀金 |
| DC/Low-Frequency Probe Tip Diameter | 5micron(标准)1,2,10,20可选 |
