All-Weather Panoramic & Miniature Cooled MWIR Infrared Cores from FJR Optoelectronics
Published: 2026-07-31 14:02:24 Views: 3
Founded in Beijing in 2011, Beijing FJR Opto-electronic Technology Co., Ltd. specializes in R&D, manufacturing and sales of infrared thermal imaging equipment and complete optoelectronic systems. Centered on infrared hardware and self-developed image processing algorithms, our product lineup covers low-light, SWIR, UV and visible multi-spectrum detection. Our main products include infrared imaging cores, standard thermal cameras and customized EO payloads. We optimize solutions in terms of size, weight, power, imaging sensitivity, detection range and total cost for security, airborne, industrial and research customers.

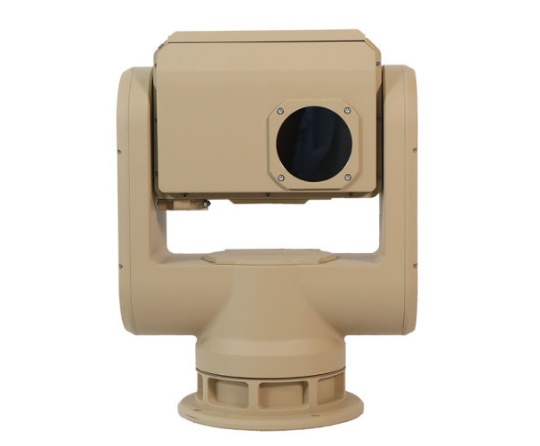

FOS-50PCS01 360° Uncooled Panoramic EO Radar
Product Overview
Lightweight LWIR panoramic scanner designed for 24/7 full-area outdoor perimeter monitoring
Key Feature
- Continuous 360° horizontal rotation with pitch range -45°~+45°, full scan within 2.4s for fast target capture;
- 640×480 uncooled LWIR FPA working at 8–12μm atmospheric window, clear imagery day and night under fog;
- Ultra-light unit ≤15kg, DC24V low power supply, easy installation for fixed towers and vehicles;
- Integrated gimbal design with GigE remote control, stable operation from -30℃ to +55℃ for harsh open-air environments.
Core Specifications
- Detector: 640×480 uncooled LWIR
- Spectral band: 8–12 μm
- FOV: 13° × 360°, pitch -45°~+45°
- Scan cycle: 2.4s per full rotation
- Peak power: ≤60W, input DC24V
- Weight: ≤15 kg
- Operating temp: -30℃ ~ +55℃
Application Scenarios
Border full-range security monitoring, oil & wind farm perimeter protection, port wide-area surveillance, long-distance maritime vessel inspection, outdoor factory intrusion alert

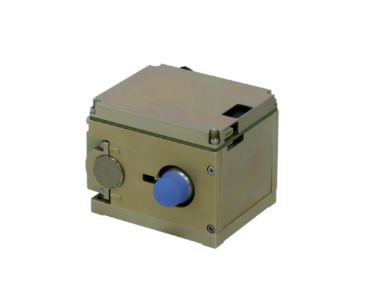

Miniature Cooled MWIR Imaging Core
Product Overview
Compact SWAP cooled mid-wave core optimized for UAV, airborne and portable miniature EO payloads
Key Features
- 640×512 detector with 15μm pixel pitch, 3.7–4.8μm MWIR band, excellent sensitivity for hot object detection;
- Ultra-small footprint: 87×81×63mm, weight ≤540g, average power ≤6W, ideal for battery-powered mobile devices;
- Cool-down time ≤3 min at 25℃, multiple output interfaces including CameraLink, SDI and serial ports for secondary integration;
- Stable imaging from -40℃ to +60℃, compatible with airborne and vehicle harsh environments.
Core Specifications
- Resolution: 640×512, 15μm pixel pitch
- MWIR band: 3.7–4.8 μm
- Cool-down time: ≤3 min @25℃
- Weight: ≤540 g, dimension 87×81×63 mm
- Power input: 12~18V DC
- Operating temp: -40℃ ~ +60℃
Application Scenarios
UAV electro-optic payloads, compact airborne pods, portable sighting devices, precision high-temperature industrial measurement, lab infrared spectroscopy, miniature missile-borne optical systems
Customization & Mass Supply
FJR offers customized optical parameters, mechanical structure, image algorithms and communication protocols for all cores and systems. We support prototype sampling, small batch trial production and stable mass delivery. Each unit passes full environmental and imaging tests with official test reports.
If you need complete datasheets, project evaluation or bulk quotation, please reach out to our photonicssource sales team.
