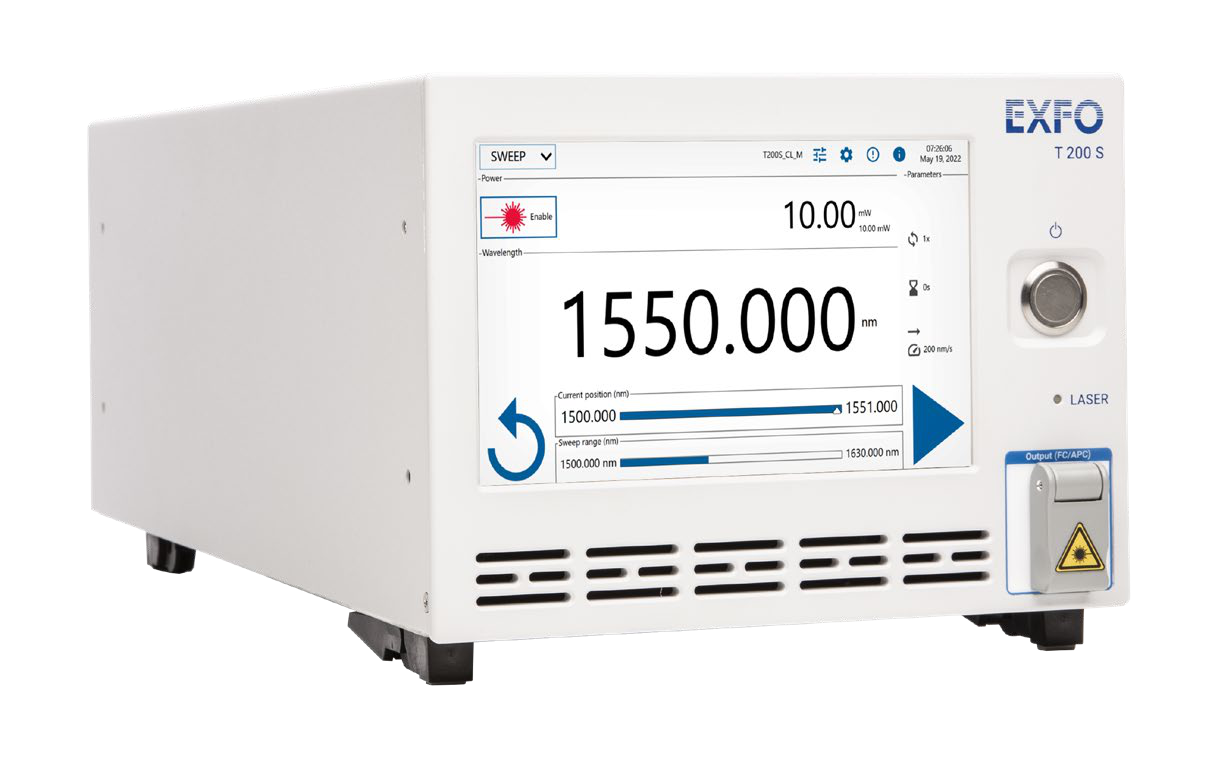

T200S
The T200S is a high-power continuously tunable laser designed for R&D applications and testing photonic integrated circuits and optical components. It offers high sweep speed, narrow linewidth, and exceptional spectral purity.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) T200S-O | 1260-1360 |
| Wavelength Range (nm) T200S-CL | 1500-1630 |
| Wavelength Uncertainty (pm) T200S-O | ±5 (typical) |
| Wavelength Uncertainty (pm) T200S-CL | ±20 |
| Wavelength Repeatability (pm) T200S-O | ±5 (typical) |
| Wavelength Repeatability (pm) T200S-CL | ±5 (typical) |
| Wavelength Stability (pm) | ±5 |
| Wavelength Resolution Setting (pm) | 1 |
| Maximum Speed (nm/s) | 100 (200 optional) |
| Adjustable Speed (nm/s) | 0.5, 1, 2, 5, 10, 20, 50, 100 (200 optional) |
| Mode-Hop-Free Operation | Active mode-hop cancellation |
| Nominal Output Power Over Full Wavelength Range (dBm) | 10 |
| Power Stability (dB) | ±0.01 (typical) |
| Linewidth (10s Integration Time) T200S-O (kHz) | ≤25 (typical) |
| Linewidth (10s Integration Time) T200S-CL (kHz) | ≤250 (typical) |
| Side Mode Suppression Ratio (SMSR) (dB) | ≥50 (typical) |

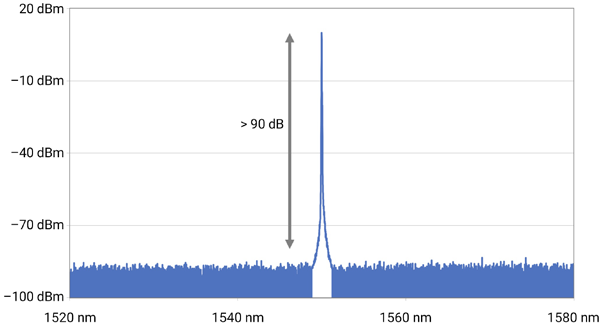

| Signal-to-Source Spontaneous Emission Ratio (SSSER) (dB) | ≥90 (typical) |
| Signal-to-Total-Source Spontaneous Emission Ratio (STSSER) (dB) | ≥75 (typical) |
| Relative Intensity Noise (RIN) (dB/Hz) | ≤-150 (typical) |
| Optical Fiber Type | PM optical fiber, FC/APC connector |
| PER (dB) | ≥17 (typical) |
| Operating Temperature | 15°C to 35°C (59°F to 95°F) |
| Operating Humidity | ≤80% (non-condensing) |
| Warm-Up Time (hour) | 1 |
| Size (L×H×D) | 217mm×173mm×441mm (8½in×6⅞in×17⅜in) |
| Weight | 9kg (20lb) |
| Monitor | 7in capacitive touchscreen |
| Remote Communication | Ethernet RJ45 LAN 10/100/1000Mbit/s |
| Electrical BNC Ports | 1×trigger IN, 1×trigger OUT, power monitoring and wavelength monitoring |
| USB Ports | USB3.0 (1), USB2.0 (2) |
| Laser Safety | Class 1M |
| Power Supply | 100-240VAC, 50/60Hz, 0.65-0.3A |
| Accessories | Rackmount, 4U tablet accommodating 2 units |
