GTA1005 1310nm Pulse Laser

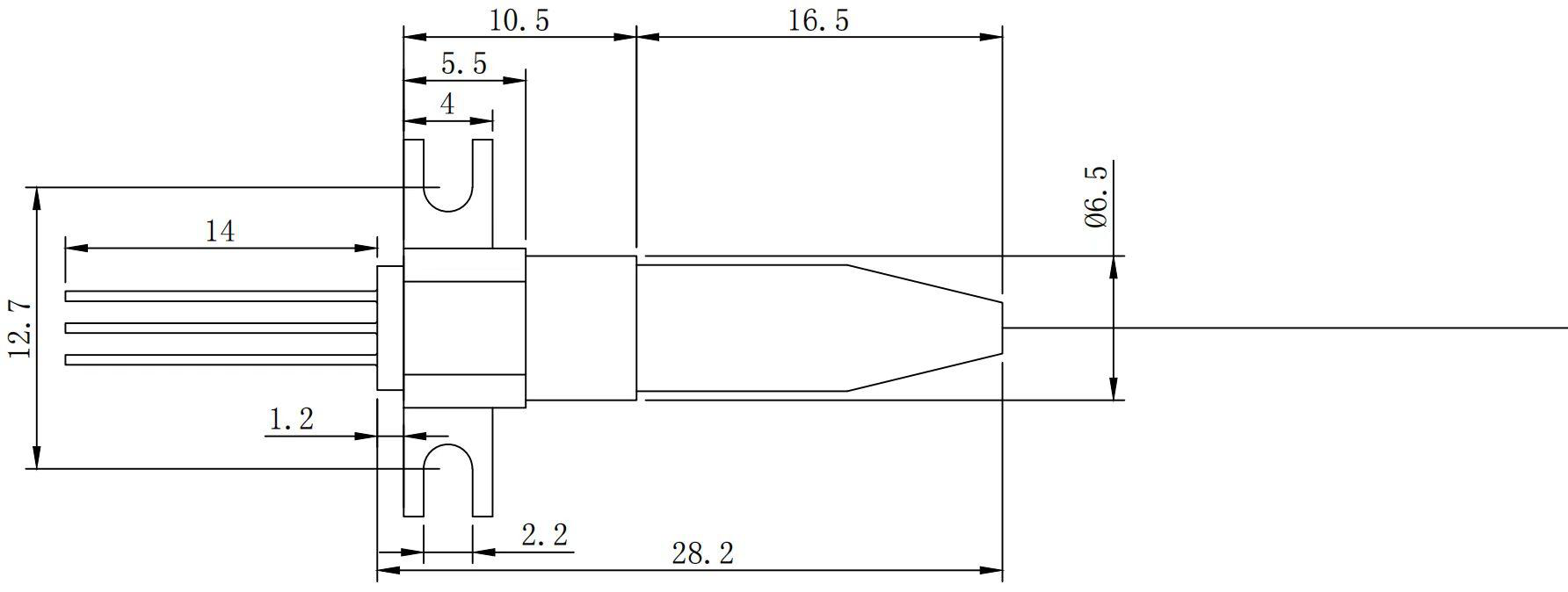

The GTA1005 is a 1310nm pulse laser with flange, featuring high output power, multiple quantum well (MQW) laser technology, and a pulse width of 10μs with a duty cycle of 1%.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Pulsed Forward Current | 1.2A |
| Reverse Voltage | 2.0V |
| Operating Case Temperature | -20~+60°C |
| Storage Temperature | -40~+85°C |
| Soldering Temperature/Time | 260°C/10s |
| Relative Humidity (noncondensing) | 85% |
| Forward Voltage | 4.0V |
| Threshold Current | 45~75mA |
| Optical Output Power From Fiber @1310nm | 250mW |
| Optical Output Power From Fiber @1550nm | 180mW |
| Optical Output Power From Fiber @1625nm | 100mW |
| Optical Output Power From Fiber @1650nm | 100mW |
| Spectral Width | 5.0nm |
| Rise Time/Fall Time | 0.9ns~1.0ns |
| Center Wavelength | 1310nm, 1550nm, 1625nm, 1650nm |
Applications
Key Features
Datasheet
