Infrared optical plating and metalization
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Base mass | Ge, Silicon, Sapphire, ZnS, MgF2 |
| Optical plating | Infrared amplifiers, pre-infrared cut-off film, infrared filtration film, customised to client requirements |
| Metal layer | Cr/Ni/Au,Ti/Pt/Au, Cr/Pt/Au |
| Surface mass | 60/40 or 40/20 or 20/10 (United States military standards) |
| High temperature test | 350°C down 30min |
| Optical valid calibre | 22x20.5; 15x12; 12.8x11.6; 7x6; Φ23.5; Φ21; Φ17 |
| Metalized area | ≥22.5x21; ≥15.4x12.4; ≥13.2x12; ≥7.4x6.4; ≥Φ23.9; ≥Φ21.4; ≥Φ17.4 |

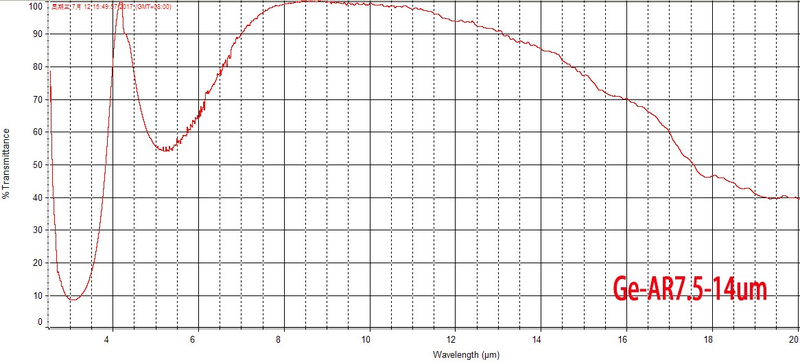

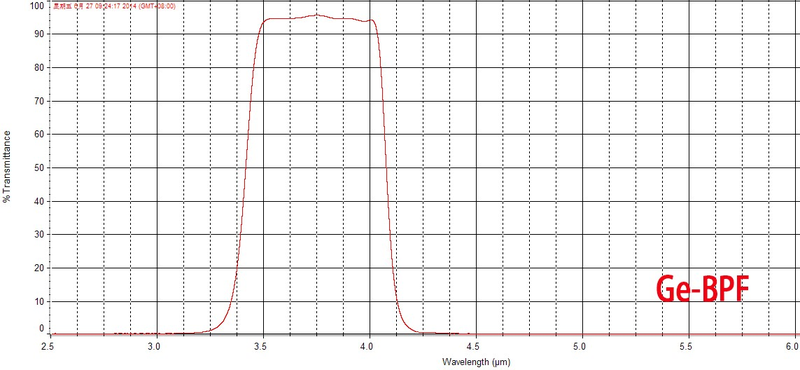

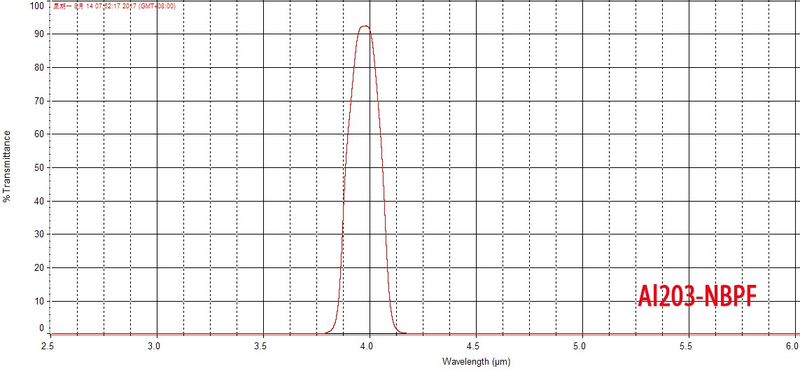

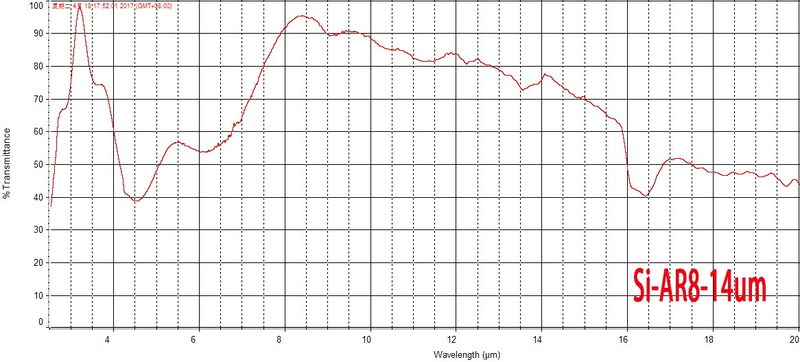

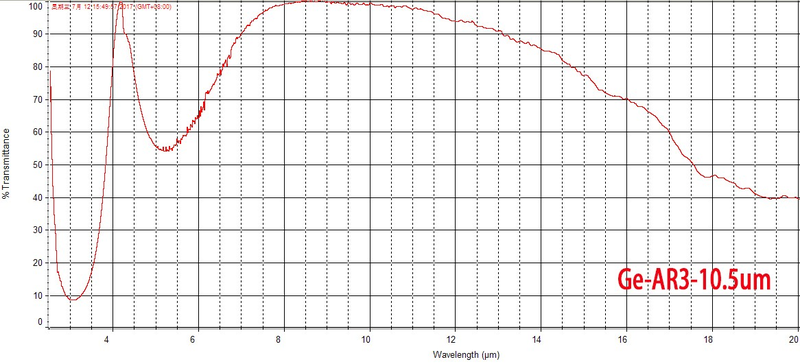

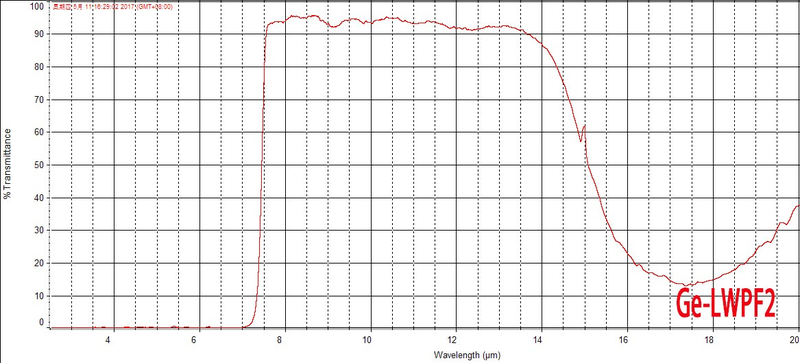

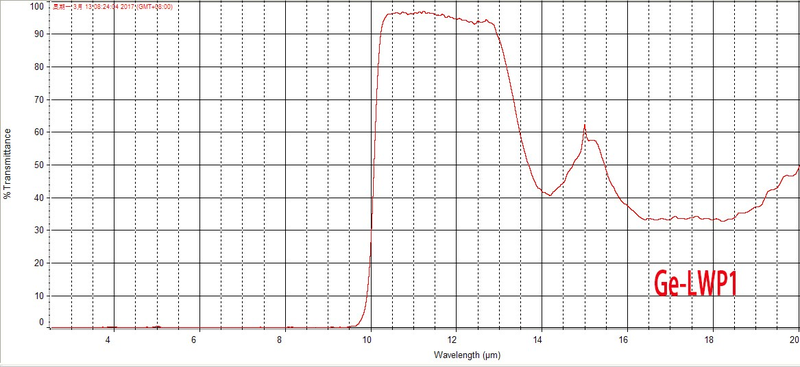

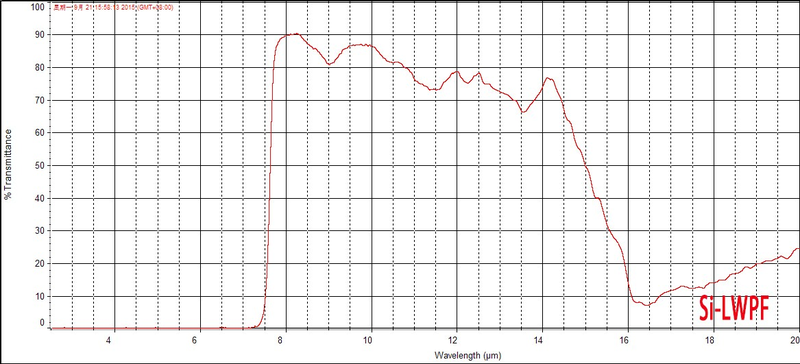

| Spectra Indicators | 8-14μm, Tavg≥92%Or≤7μm, T＜ 1%; 8-14μm, Tavg≥92%; 8-16μm, Tavg≥92% |
