Anti-reflection coating
Anti-reflective coating can reduce the intensity of reflected light, thereby increasing the intensity of transmitted light and making optical system imaging clearer. It has a wide range of applications in LED displays, touch screens, LCD projection systems, instrument windows, fingerprint analyzer windows, monitor protective lenses, antique mirror frame windows, high-end watch windows, eyeglass lenses, and screen-printed optical glass products.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

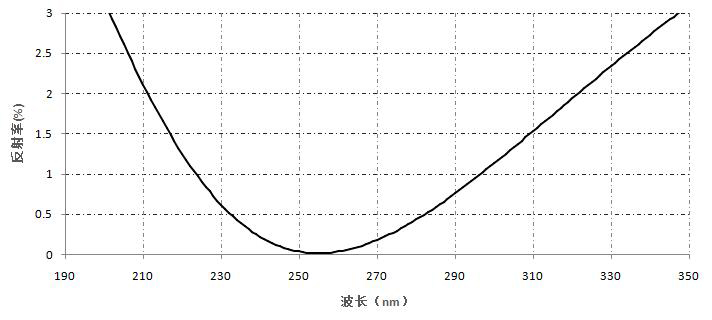

| Single Wavelength AR (UV) - Angle of Incidence | 0º or 45º |
| Single Wavelength AR (UV) - Reflectance (λ>255 nm) (R) [λ>255 nm; unpolarized; at 0°; at 45°] | Unpolarized; R≤0.25 % at 0 °, R≤0.5 % at 45 ° |
| Single Wavelength AR (UV) - Reflectance (λ≤255nm) (R) [λ≤255nm; unpolarized; at 0°; at 45°] | Unpolarized; R≤1.0 % at 0 °, R≤1.5 % at 45 ° |
| Single Wavelength AR (UV) - Laser Damage Threshold (λ> 255 nm) [λ> 255 nm; 10ns pulse] | 1.0 J /cm², 10 ns pulse |
| Single Wavelength AR (UV) - Laser Damage Threshold (λ> 355 nm) [λ> 355 nm; 10 ns pulse] | 3.0 J /cm², 10 ns pulse |

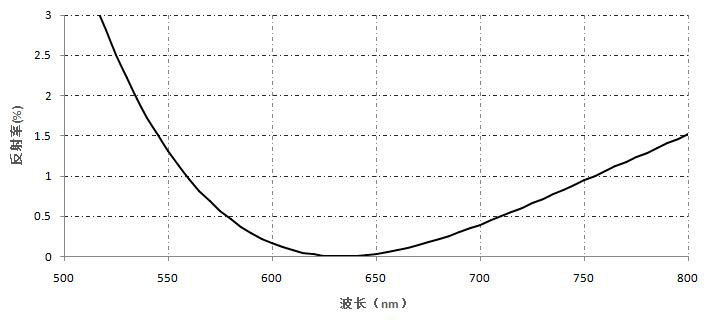

| Single Wavelength AR (VIS / NIR) - Angle of Incidence | 0º or 45º |
| Single Wavelength AR (VIS / NIR) - Reflectance (R) [unpolarized; at 0º; at 45º] | Unpolarized; R≤0.25 % at 0º, R≤0.5 % at 45º |
| Single Wavelength AR (VIS / NIR) - Laser Damage Threshold (532nm) [532nm; 10ns pulse] | 5 J /cm², 10 ns pulse |
| Single Wavelength AR (VIS / NIR) - Laser Damage Threshold (1064nm) [1064nm; 10ns pulse] | 10 J /cm², 10 ns pulse |

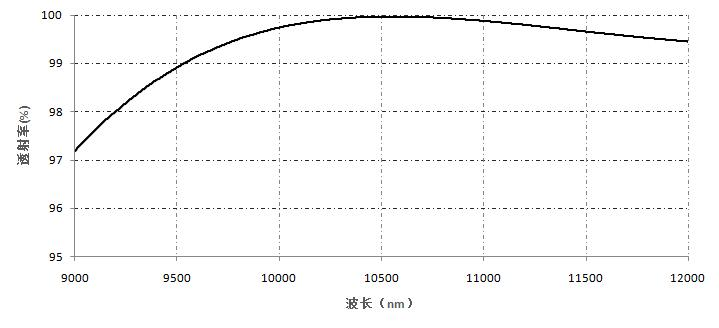

| Single Wavelength AR (IR) - Angle of Incidence | 0º or 45º |
| Single Wavelength AR (IR) - Transmittance (T) [unpolarized; at 0º; at 45º] | Unpolarized; T>99.5 % at 0º, T>99 % at 45º |
| Single Wavelength AR (IR) - Laser Damage Threshold (λ>10.6μm) [λ>10.6μm; 10 ns pulse] | 2 J /cm², 10 ns pulse |

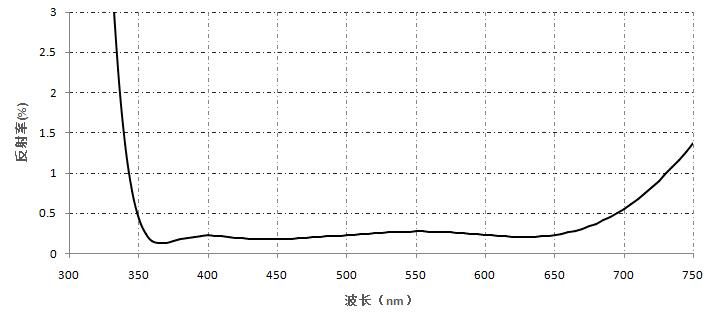

| Broadband AR (VIS / NIR) - Angle of Incidence | 0º or 45º |
| Broadband AR (VIS / NIR) - Reflectance (Ravg) [unpolarized; at 0°; at 45°] | Unpolarized; Ravg<0.5 % at 0 °, Ravg<1.0 % at 45 ° |

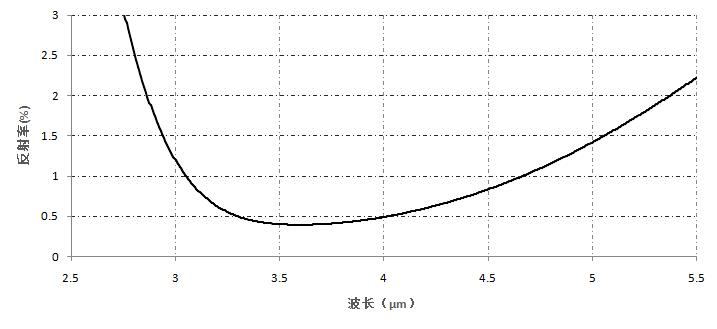

| Broadband AR (IR) - Angle of Incidence | 0º or 45º |
| Broadband AR (IR) - Transmittance [unpolarized; at 0°; at 45°] | Unpolarized; Tavg>97 % at 0 °, Tavg>96 % at 45 ° |
| Broadband AR (IR) - Laser Damage Threshold [10 ns pulse] | 2 J /cm², 10 ns pulse |

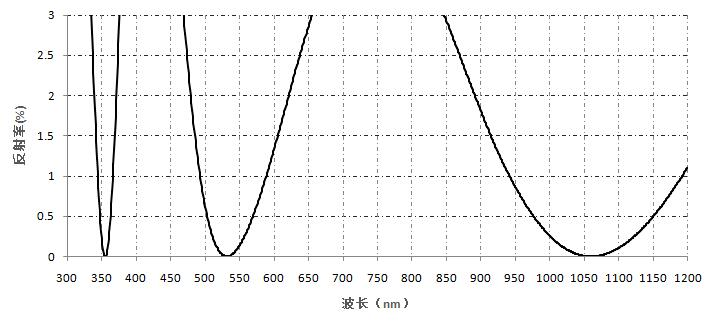

| Multi-Wavelength AR - Angle of Incidence | 0º |
| Multi-Wavelength AR - Reflectance (R) | R≤0.5 % |
| Multi-Wavelength AR - Laser Damage Threshold [10ns pulse] | 5 J /cm², 10 ns pulse |
