Other coatings
Boxin can customize laser crystal coatings and ITO coatings according to customer requirements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Laser crystal coating - material | Customized according to customer requirements |
| Laser crystal coating - dimensional tolerance | ±0.01 ~±0.2 mm |
| Laser crystal coating - chamfer | 0.5 mm, 45 ° |
| Laser crystal coating - surface quality | 10/5~80/50 |
| Laser crystal coating - surface figure accuracy [Φ100 mm] | λ/20~λ/2 / Φ100 mm |
| Laser crystal coating - clear aperture | >90 % |
| Laser crystal coating - angle of incidence | Any angle or angle range from 0 °-60 ° |
| Laser crystal coating - coating | Customized upon request (see Boxin coating process types and film layer introduction for details) |

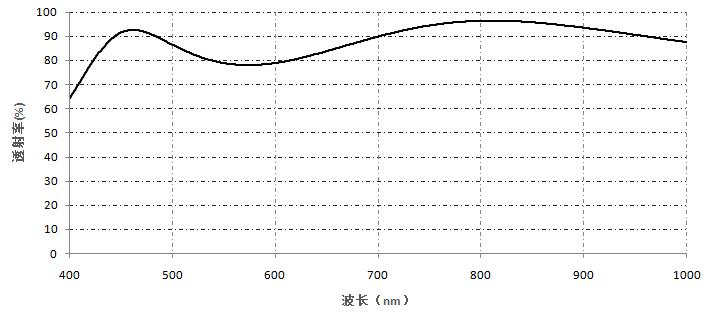

| ITO coating - wavelength | Specifications customizable |
| ITO coating - transmittance (T) | T>90 % |
