Depolarizing coating
Boxin can customize various depolarizing coatings according to customer requirements. These include prism depolarizing beam splitter coatings (UV / VIS / NIR), plate depolarizing beam splitter coatings (UV / VIS / NIR), prism broadband depolarizing beam splitter coatings (VIS / NIR), and plate depolarizing beam splitter coatings (IR). It has a wide range of applications in interferometers and various imaging instruments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

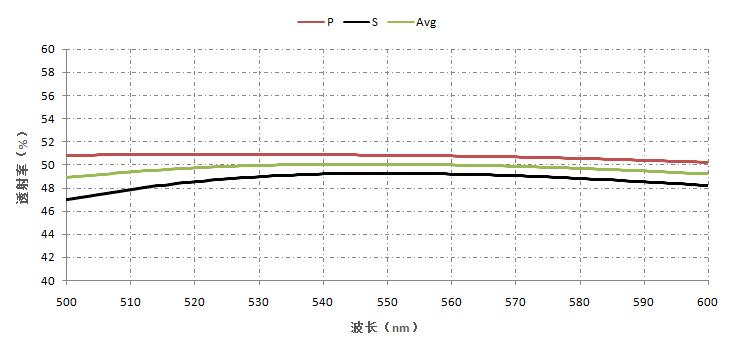

| Prism Non-Polarizing Beamsplitter (UV / VIS / NIR) - Angle of Incidence | 45º |
| Prism Non-Polarizing Beamsplitter (UV / VIS / NIR) - Reflectance (400 nm – 2μm) (R; R s; R p) | 10 %≤R≤90 %±5 % ;| R s – R p | ≤5 % |

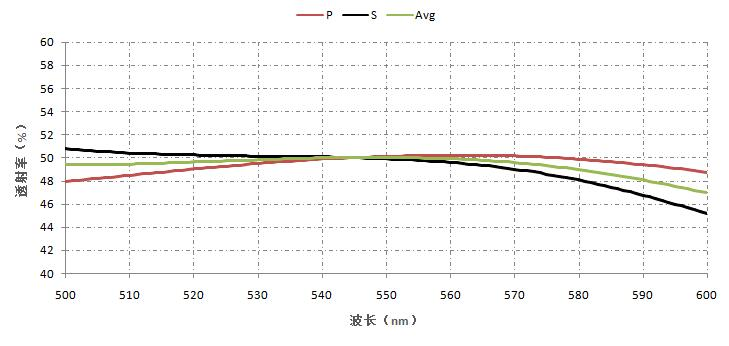

| Plate Non-Polarizing Beamsplitter (UV / VIS / NIR) - Angle of Incidence | 45º |
| Plate Non-Polarizing Beamsplitter (UV / VIS / NIR) - Reflectance (R; R s; R p) [400nm – 2μm] | (400 nm – 2 μm): 10 %≤R≤90 %±5 %;| R s – R p | ≤5 % |

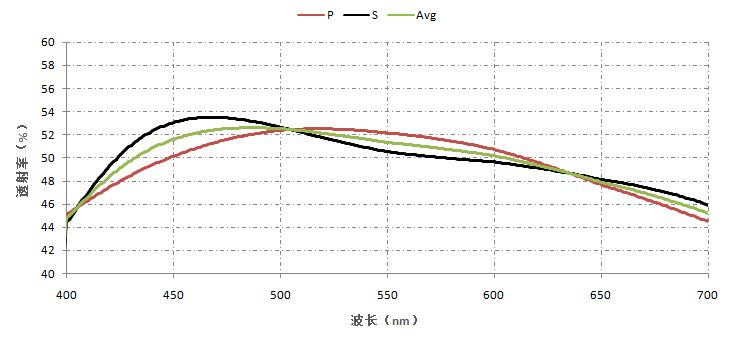

| Prism Broadband Non-Polarizing Beamsplitter (VIS / NIR) - Angle of Incidence | 45º |
| Prism Broadband Non-Polarizing Beamsplitter (VIS / NIR) - Reflectance (Ravg) | Ravg = 45 %±5 % |
| Prism Broadband Non-Polarizing Beamsplitter (VIS / NIR) - Absorptance | <12 % |

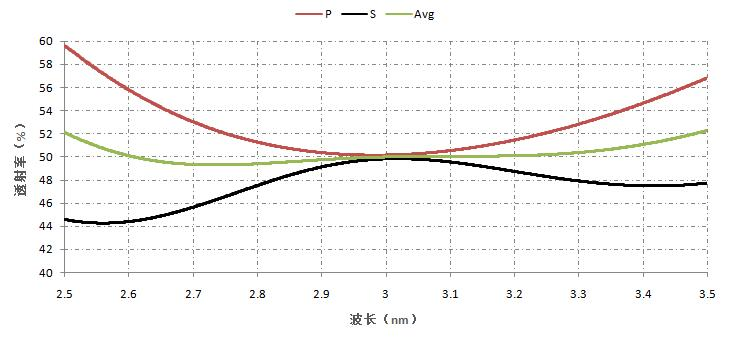

| Plate Non-Polarizing Beamsplitter (IR) - Angle of Incidence | 45º |
| Plate Non-Polarizing Beamsplitter (IR) - Reflectance (R; R s; R p) | 30 %≤R≤70 %±5 %;| R s – R p | ≤5 % |
