Four-channel butterfly laser drive ODLD series
The ODLD series is a four-channel laser controller designed for multi-road laser output scenarios; has the advantage of high current output, high current accuracy, high constant flow characteristics and high ability to resist interference; has also had currents; overpressures; protection measures such as overheat; and guarantees the job stability and service life of lasers. Each channel can work and control independently, provide standard butterfly pump laser foot definition; compatible 10pin an
Save to Favorites
Overview

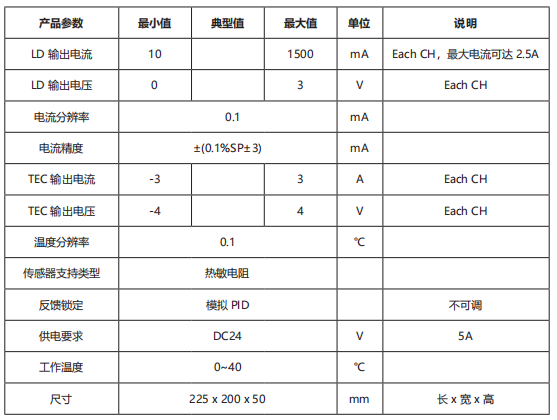

Specifications
| Parameter | Value |
|---|---|
| Product parameters | minimum;typical;maximum; units; description |
| Current Precision | ±(0.1%SP±3); mA |
| Output current | -3; 3; A; Each CH |
| Temperature Resolution | 0.1; ℃ |
| Sensor Support Type | Heat-sensitive electrical resistance |
| Feedback Lock | simulating PID; non-modifiable |
| Electricity requirements | DC24; V; 5A |
Datasheet
