Double-channel single-module laser driver OCLD series
The OCLD series is a two-way output laser controller designed for industrial laser users. It controls both single-model lasers and multiple-model pump lasers; the product has excellent laser protection and failure diagnosis. Max. current support 15A output supports external simulations; modem frequency up to 100kHz supports uplink control
Save to Favorites
Overview
Specifications

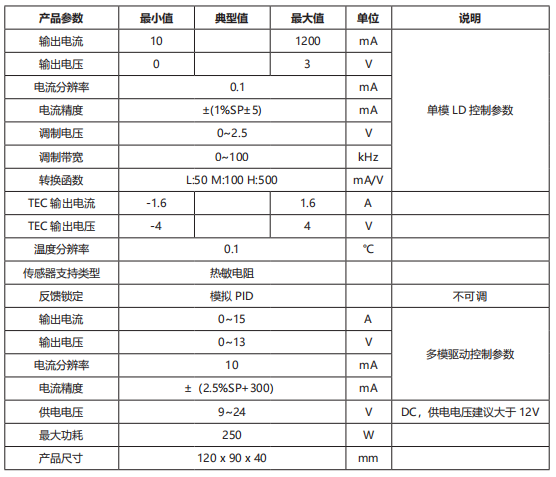

| Parameter | Value |
|---|---|
| Product parameters | minimum;typical;maximum; units; description |
| Output current | 10; 1200; MA; single-mode LD control parameters; -1.6; 1.6; A; 0~15;A;Multimodal Driver Control Parameters |
| Current Precision | ±(1%SP±5); mA; ±（2.5%SP+300）; mA |
| Modified voltage | 0~2.5; V |
| Modify the bandwidth | 0~100; kHz |
| Convert Functions | L:50 M:100 H:500; mA/V |
| Temperature Resolution | 0.1; ℃ |
| Sensor Support Type | Heat-sensitive electrical resistance |
| Feedback Lock | simulating PID; non-modifiable |
| Electricity voltage | 9~24; V; DC, > 12V recommended power supply |
| Max | 250; W |
| Product size | 120 x 90 x 40; mm |
Datasheet
