Desktop large current laser controller OFLD series
The desktop OFLD series is a high-performance semiconductor laser controller; real-time monitoring of semiconductor laser currents; voltage; temperature state, etc. parameters; and can be used with multiple types of traps. Touch screen matching entity buttons provide easier operations for users. For plant-based laser LIV testing needs; the product is accompanied by a one-key parameter saving/ reading function; and PID parameter automated settings, etc. Support for constant current ACC; constant
Save to Favorites
Overview

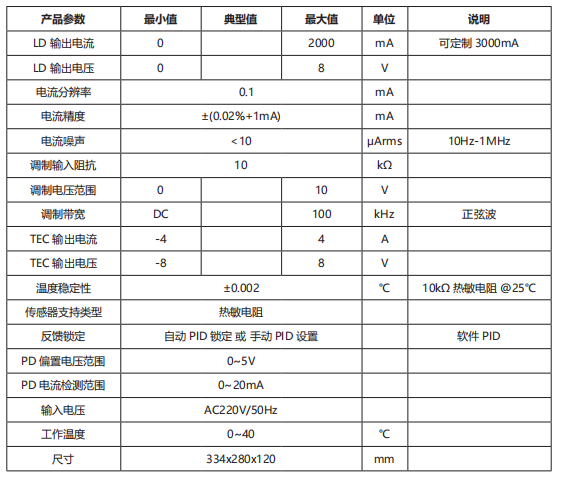

Specifications
| Parameter | Value |
|---|---|
| Product parameters | minimum;typical;maximum; units; description |
| Output current | 0; 2000; MA; custom 3000mA |
| Current Precision | ±(0.02%+1mA); mA |
| Electricity Noise | <10; μArms; 10Hz-1MHz |
| Modified input block | 10; kΩ |
| Modify the bandwidth | DC; 100; kHz; sine |
| Output current | -4; 4; A |
| Temperature stability | ±0.002; °C; 10k heat sensitivity resistance@25°C |
| Sensor Support Type | Heat-sensitive electrical resistance |
| Feedback Lock | AutoPID Lock or Manual PID Settings; SoftwarePID |
| Eject voltage range | 0~5V |
| Current detection range | 0~20mA |
| Enter voltage | AC220V/50Hz |
