Low noise laser driver module
The ONLD series is a low current noise developed for precision measurement; a high-controlled temperature laser driver for temperature control; the product is already being measured in quantum precision; fibre-optic sensors; and applications in areas such as space communications. A rich control interface and OEM services provide a more suitable client; easier laser control products. Provide standard butterfly wrappers; facilitate the replacement of different types of lasers; protect features suc
Save to Favorites
Overview

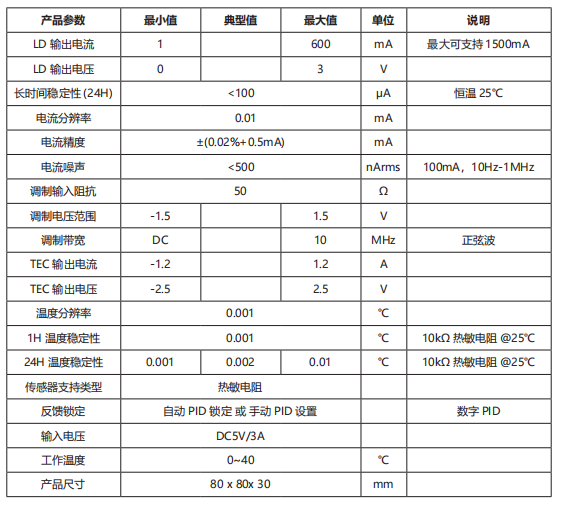

Specifications
| Parameter | Value |
|---|---|
| Product parameters | minimum;typical;maximum; units; description |
| Output current | 1; 600; max. 1,500 mA |
| Long-term stability | < 100; μA; constant temperature 25°C |
| Current Precision | ±(0.02%+0.5mA); mA |
| Electricity Noise* | <500; nArms; 100mA, 10Hz-1MHz |
| Modified input block | 50; Ω |
| Modified voltage Range | -1.5; 1.5; V |
| Modify the bandwidth | DC; 10; MHz; sine |
| Output current | -1.2; 1.2; A |
| Temperature Resolution | 0.001; ℃ |
| Temperature stability | 0.001; °C; 10k heat sensitivity resistance@25°C; 0.001; 0.002; 0.01; °C; 10k heat-sensitive resistance@25°C |
| Sensor Support Type | Heat-sensitive electrical resistance |
| Feedback Lock | AutoPID lock or manual PID settings; numbersPID |
| Enter voltage | DC5V/3A |
| Product size | 80 x 80x 30; mm |
Datasheet
