Desktop Low Noise Laser Drive
The OULD series is targeted for narrow-line wide lasers and stabilization wavelength lasers; control accuracy with extremely low current noise and extremely high temperature. Touch screen matching entity buttons provide easier operations for users. To respond to laboratory testing needs; the product is accompanied by one key saving / reading function; and one key automated setting for PID parameters. Support for constant current ACC; constant APC mode support external simulations; modems up to 1
Save to Favorites
Overview
Specifications

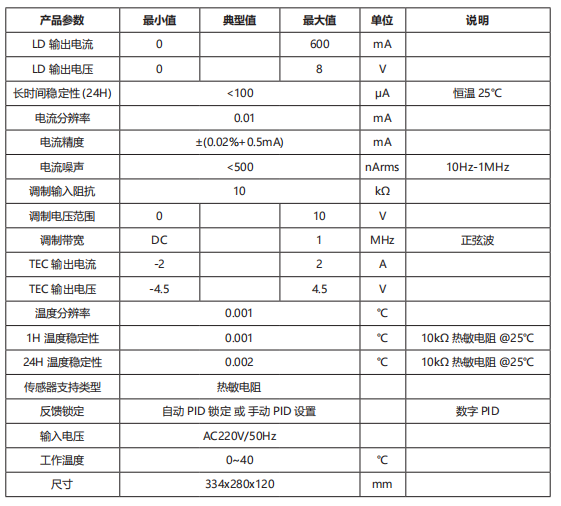

| Parameter | Value |
|---|---|
| Product parameters | minimum;typical;maximum; units; description |
| Output current | 0; 600; mA; -2; 2; A |
| Long-term stability | < 100; μA; constant temperature 25°C |
| Current Precision | ±(0.02%+0.5mA); mA |
| Electricity Noise | <500; nArms; 10Hz-1MHz |
| Modified input block | 10; kΩ |
| Modify the bandwidth | DC; 1; MHz; sine |
| Temperature Resolution | 0.001; ℃ |
| Temperature stability | 0.001; °C; 10k heat sensitivity resistance@25°C; 0.002; °C; 10k heat sensitivity resistance@25°C |
| Sensor Support Type | Heat-sensitive electrical resistance |
| Feedback Lock | AutoPID lock or manual PID settings; numbersPID |
| Enter voltage | AC220V/50Hz |
Datasheet
